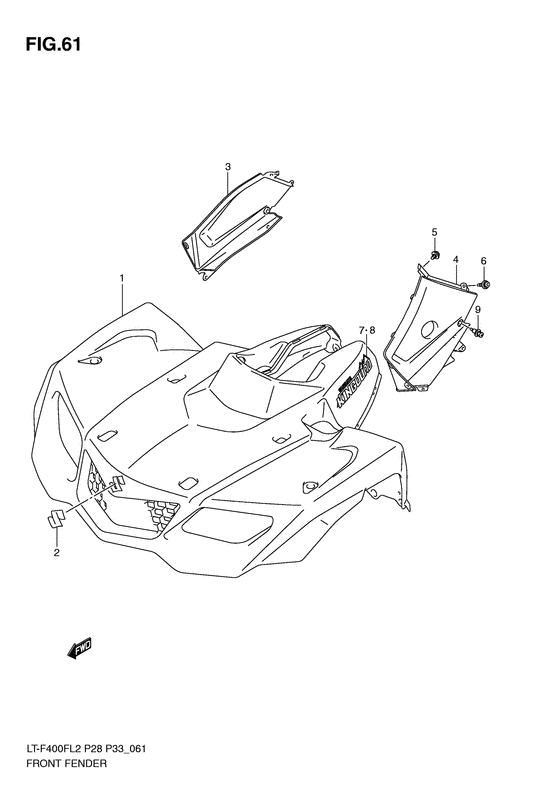

Front fender (Lt-f400fzl2 p33) Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL2
- Engine Capacity
- 376
- Year
- 2012
- Sales region
- Canada (P28)
- Frame
- 5SAAK4CA*C7100001~
- Power
- 25 hp
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-27H11-YVA
FENDER,FR
Fender, front (camouflage); |
53111-27H11-YVA |
— | ||
|
2
|
2
68151-03G40-000 EMBLEM,SEmblem, front; |
68151-03G40-000 |
from US $10.08 |
||
|
3
|
3
53112-27H02-291 COVER,SIDE,RCover, side rh (black); |
53112-27H02-291 |
US $65.47 |
||
|
4
|
4
53122-27H11-291 COVER,SIDE,LCover, side lh (black); |
53122-27H11-291 |
US $50.59 |
||
| replacement | |||||
|
4
|
4
53122-27H13-291 CVR,FRT FNDR SICover, side lh (black); |
53122-27H13-291 |
US $55.79 |
||
|
5
|
5
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
6
|
6
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
7
|
7
68151-27HA0-EFG
EMBLEM,FR FENDER,R
Emblem, rh; |
68151-27HA0-EFG |
— | ||
| replacement | |||||
|
7
|
7
68151-27HA1-EFG Emblem,fr Fender,rEmblem, rh; |
68151-27HA1-EFG |
from US $26.86 |
||
|
8
|
8
68152-27HA0-EFG
EMBLEM,FR FENDER,L
Emblem, lh; |
68152-27HA0-EFG |
— | ||
| replacement | |||||
|
8
|
8
68152-27HA1-EFG Emblem,fr Fender,lEmblem, lh; |
68152-27HA1-EFG |
from US $26.86 |
||
|
9
|
9
09409-10306-000 CLIP |
09409-10306-000 |
from US $1.68 |
||
