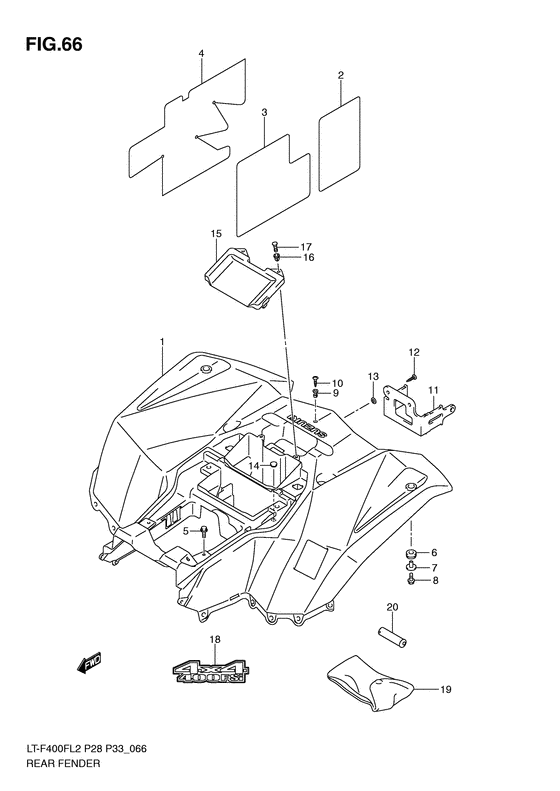

Rear fender (Lt-f400fl2 p28) Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL2
- Engine Capacity
- 376
- Year
- 2012
- Sales region
- Canada (P28)
- Frame
- 5SAAK4CA*C7100001~
- Power
- 25 hp
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63111-27H02-YT9
FENDER,RR
Fender, rear (red); |
63111-27H02-YT9 |
— | ||
|
1
|
1
63111-27H02-YLG FENDER,RRFender, rear (green); |
63111-27H02-YLG |
US $340.06 |
||
| replacement | |||||
|
1
|
1
63111-27H03-YLG FENDER,RRFender, rear (green); |
63111-27H03-YLG |
US $376.69 |
||
|
2
|
2
63122-27H10-000 SHIELD,RR FENDER |
63122-27H10-000 |
from US $16.61 |
||
|
3
|
3
63123-27H10-000 SHIELD,RR FENDER |
63123-27H10-000 |
from US $11.32 |
||
|
4
|
4
63124-27H10-000 SHIELD,RR FENDER |
63124-27H10-000 |
from US $16.32 |
||
|
5
|
5
09116-06006-000 BOLT(6X16)Bolt, front Bolt (6x16); |
09116-06006-000 |
from US $0.76 |
||
|
6
|
6
09320-11021-000 CUSHION |
09320-11021-000 |
from US $1.34 |
||
|
7
|
7
09169-06074-000 WASHERWasher Washer; |
09169-06074-000 |
from US $2.74 |
||
|
8
|
8
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
9
|
9
09159-05019-000 NUT |
09159-05019-000 |
from US $2.28 |
||
|
10
|
10
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
11
|
11
47413-27H00-000 PLATE,CDI UNIT |
47413-27H00-000 |
from US $6.04 |
||
|
12
|
12
09229-04020-000 RIVET |
09229-04020-000 |
from US $0.91 |
||
|
13
|
13
08322-0104A-000 WASHERWasher, cam rocker arm |
08322-0104A-000 |
from US $3.03 |
||
|
14
|
14
09250-08018-000
CAP,OD:16
|
09250-08018-000 |
— | ||
|
15
|
15
63112-27H00-000
COVER,RR FENDER
|
63112-27H00-000 |
— | ||
|
16
|
16
09409-08329-000 GROMMETClip |
09409-08329-000 |
from US $1.06 |
||
|
17
|
17
09409-08330-000 PLUNGERGrommet Grommet; |
09409-08330-000 |
from US $1.12 |
||
|
18
|
18
68171-27HG0-JLJ EMBLEM,RR FENDER |
68171-27HG0-JLJ |
from US $10.23 |
||
|
19
|
19
09800-21055-000
TOOL ASSY
|
09800-21055-000 |
— | ||
| replacement | |||||
|
19
|
19
09800-21102-000 Tool Assy |
09800-21102-000 |
from US $27.27 |
||
|
20
|
20
96200-18A02-000 GAUGE ASSY,AIR PRESSUREGuage assy, air |
96200-18A02-000 |
US $67.61 |
||
