	Description	OEM Part #	Price
1	1 61101-27850-000 SWINGINGARM SET,RR	61101-27850-000	from US $327.98
2	2 61230-27H00-000 BUSH,RR SWINGINGARM PIVOT	61230-27H00-000	US $72.17
3	3 61300-27H00-000 HOUSING,RR AXLE,R	61300-27H00-000	from US $387.28
4	4 61400-27H00-000 HOUSING,RR AXLE,L	61400-27H00-000	from US $268.14
5	5 09103-10216-000 BOLT(10X20) Bolt (10x20);	09103-10216-000	from US $6.68
6	6 09159-10115-000 NUT	09159-10115-000	from US $2.58
7	7 09113-12002-000 BOLT(12X80) Bolt (12x80);	09113-12002-000	—
8	8 09159-12054-000 NUT Nut, pivot	09159-12054-000	from US $7.78
9	9 09280-70005-000 O RING(D:3.1,ID:69.4) Band (d:3.1 id:69.4) O ring (d:3.1,id:69.4);	09280-70005-000	from US $3.94
10	10 09283-38022-000 SEAL,OIL(38X55X9) Dust seal, outer (38x55x7.5) Oil seal (38x55x9);	09283-38022-000	US $17.56
11	11 09103-10421-000 BOLT(10X30) Bolt, axle housing Bolt (10x30);	09103-10421-000	from US $5.80
12	12 08331-4155A-000 Circlip	08331-4155A-000	—
	replacement
12	12 08331-41559-000 CIRCLIP	08331-41559-000	from US $2.43
13	13 08123-60067-000 BEARING Bearing, front hub	08123-60067-000	from US $16.72
14	14 62100-27H10-019 ABSORBER ASSY,RR SHOCK Absorber assy, rear shock (black) Absorber assy, rear shock (black);	62100-27H10-019	US $228.55
15	15 09103-10126-000 BOLT(10X48) Bolt (10x48) Bolt (10x48);	09103-10126-000	from US $2.13
16	16 09160-10501-000 WASHER(10.5X30X2.3) Washer, upper, outer Washer (10.5x30x2.3);	09160-10501-000	from US $1.08
17	17 08319-3110B-000 NUT	08319-3110B-000	from US $5.27

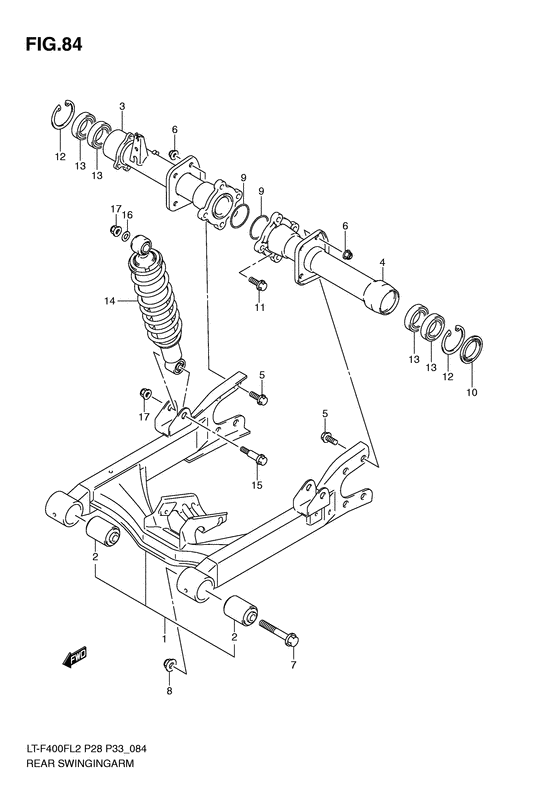

Rear swingingarm Diagram Suzuki LT-F400 KingQuad 400 4WD Canada (P28) 11614974-724399
