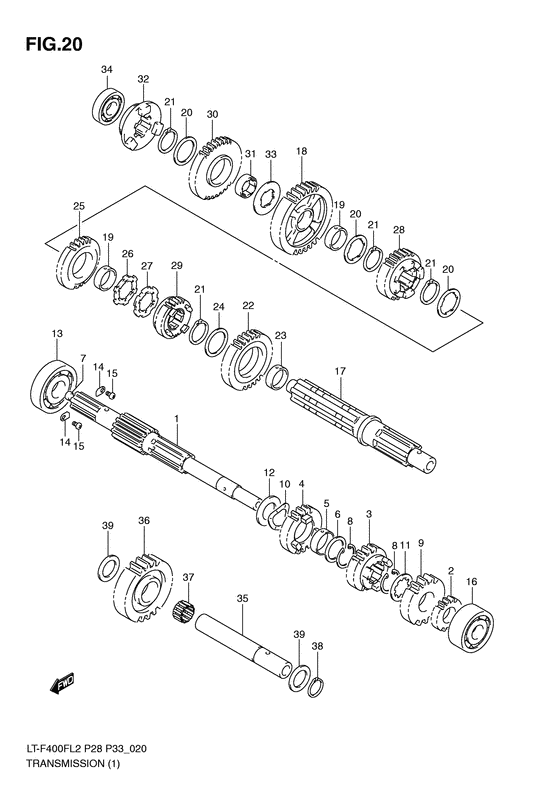

Transmission Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL2
- Engine Capacity
- 376
- Year
- 2012
- Sales region
- Canada (P28)
- Frame
- 5SAAK4CA*C7100001~
- Power
- 25 hp
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24121-38F51-000 SHAFT,COUNTERNt:12 |
24121-38F51-000 |
from US $137.26 |
||
|
2
|
2
24221-18A00-000 GEAR,2ND DRIVE(NT:15)Gear, 2nd drive (nt:15) Gear, 2nd drive; Nt:15 |
24221-18A00-000 |
from US $55.20 |
||
|
3
|
3
24231-18A02-000
GEAR,3RD DRIVE
Nt:18 |
24231-18A02-000 |
— | ||
| replacement | |||||
|
3
|
3
24231-18A03-000 Gear,3Rd DriveNt:18 |
24231-18A03-000 |
US $137.67 |
||
|
4
|
4
24241-18A10-000
GEAR,4TH DRIVE
Nt:21 |
24241-18A10-000 |
— | ||
| replacement | |||||
|
4
|
4
24241-18A11-000 Gear,4Th DriveNt:21 |
24241-18A11-000 |
US $110.42 |
||
|
5
|
5
09300-22008-000 BUSH(22X26X9)Bush (22x26x9); |
09300-22008-000 |
from US $7.45 |
||
|
6
|
6
09181-22167-000 SHIM(22X30X1)Washer (22x30x1.0) Shim (22x30x1); |
09181-22167-000 |
from US $1.82 |
||
|
7
|
7
09241-10003-000 PLUG |
09241-10003-000 |
from US $3.37 |
||
|
8
|
8
09380-22006-000 CIRCLIPCirclip Circlip; |
09380-22006-000 |
from US $1.82 |
||
|
9
|
9
24251-18A03-000 GEAR,5TH DRIVENt:23 |
24251-18A03-000 |
US $124.10 |
||
|
10
|
10
09164-26002-000 WASHER |
09164-26002-000 |
from US $3.71 |
||
|
11
|
11
09167-22011-000 WASHER,LOCKWasher (22.1x27x0.5) Washer (22.1x27x0.5); |
09167-22011-000 |
from US $5.17 |
||
|
12
|
12
09181-22015-000 SHIM(22X38X1)Washer (22x38x1); |
09181-22015-000 |
from US $6.49 |
||
|
13
|
13
09262-22018-000 BEARING(22X50X14)Bearing, rh Bearing (22x50x14); |
09262-22018-000 |
from US $11.84 |
||
|
14
|
14
24741-21A00-000 RETAINERRetainer, cntr shaft brg; |
24741-21A00-000 |
from US $1.60 |
||
|
15
|
15
09125-06122-000 SCREW(6X12)Screw (6x12); |
09125-06122-000 |
from US $3.35 |
||
|
16
|
16
09267-17002-000 BEARING(17X40X17.5)Bearing (17x40x17.5); |
09267-17002-000 |
from US $51.15 |
||
|
17
|
17
24131-38F50-000 SHAFT,DRIVE |
24131-38F50-000 |
US $151.98 |
||
|
18
|
18
24311-18A02-000 GEAR,1ST DRIVENGear, 1st driven (nt:37) Nt:37 |
24311-18A02-000 |
from US $55.20 |
||
|
19
|
19
24332-24510-000 BUSH,DRIVEN GEAR |
24332-24510-000 |
from US $10.18 |
||
|
20
|
20
09167-25016-000 WASHER,LOCKLock washer |
09167-25016-000 |
from US $2.13 |
||
|
21
|
21
09380-25003-000 RING,SNAPCirclip Circlip; |
09380-25003-000 |
from US $2.74 |
||
|
22
|
22
24321-18A01-000 GEAR,2ND DRIVENGear, 2nd driven (nt:29) Gear, 2nd driven; Nt:29 |
24321-18A01-000 |
from US $53.73 |
||
|
23
|
23
09300-25020-000 BUSH(25X29X8)Bush Bush (25x29x8); |
09300-25020-000 |
from US $19.36 |
||
|
24
|
24
08211-25351-000 WASHERWasher; |
08211-25351-000 |
from US $5.07 |
||
|
25
|
25
24331-19B01-000 GEAR,3RD DRIVEN(NT:25)Gear, 3rd driven (nt:25) Nt:25 |
24331-19B01-000 |
from US $52.62 |
||
|
26
|
26
09169-25001-000 WASHERLock washer Washer; |
09169-25001-000 |
from US $3.69 |
||
|
27
|
27
09167-25013-000 WASHER,LOCKLock washer |
09167-25013-000 |
from US $4.49 |
||
|
28
|
28
24341-18A02-000 GEAR,4TH DRIVENGear, 4th driven (nt:23) Nt:23 |
24341-18A02-000 |
from US $52.62 |
||
|
29
|
29
24351-18A02-000 GEAR,5TH DRIVENGear, 5th driven (nt:21) Nt:21 |
24351-18A02-000 |
from US $52.62 |
||
|
30
|
30
24571-38F60-000 GEAR,REVERSE DRIVENNt:34 |
24571-38F60-000 |
from US $56.67 |
||
|
31
|
31
24333-18A00-000 BUSH,REVERSE DRIVEN GEAR |
24333-18A00-000 |
from US $9.64 |
||
|
32
|
32
24581-38F60-000 DOG,REVERSE |
24581-38F60-000 |
from US $40.11 |
||
|
33
|
33
09167-25017-000 WASHER,LOCKWasher; |
09167-25017-000 |
from US $5.27 |
||
|
34
|
34
09262-17026-000 BEARING(17X35X10)Bearing (17x35x10); |
09262-17026-000 |
from US $20.98 |
||
|
35
|
35
24551-38F70-000 SHAFT,REVERSE IDLE |
24551-38F70-000 |
from US $19.14 |
||
|
36
|
36
24561-05G02-000 GEAR,REVERSE IDLE(NT:29)Nt:29 |
24561-05G02-000 |
US $43.06 |
||
|
37
|
37
09263-17001-000 BEARING(17X21X12.8)Bearing, reverse idle Bearing (17x21x12.8); |
09263-17001-000 |
from US $10.05 |
||
|
38
|
38
08331-3117A-000
Circlip, kick idle gr
|
08331-3117A-000 |
— | ||
| replacement | |||||
|
38
|
38
08331-31179-000 CIRCLIP |
08331-31179-000 |
from US $0.96 |
||
|
39
|
39
09181-17195-000 SHIM(17X28X1)Washer (17x28x1.0) Shim (17x28x1); |
09181-17195-000 |
from US $4.91 |
||
