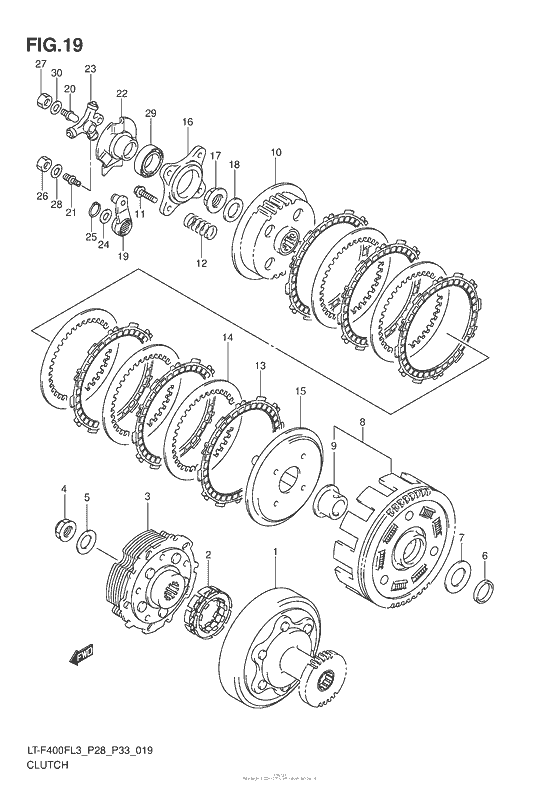

Clutch Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL3
- Engine Capacity
- 376
- Year
- 2013
- Sales region
- USA/Canada (P3/P28)
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21120-27H50-000 HOUSING,STARTER CLUTCH |
21120-27H50-000 |
from US $181.79 |
||
|
2
|
2
21273-44D00-000 CLUTCH,PRIMARY DRIVE ONE WAYClutch, one way |
21273-44D00-000 |
US $187.26 |
||
|
3
|
3
21500-27H50-000 SHOE,STARTER CLUTCH |
21500-27H50-000 |
from US $242.88 |
||
|
4
|
4
21518-44D00-000 NUT,STARTER CLUTCH SHOE |
21518-44D00-000 |
US $18.53 |
||
|
5
|
5
09164-20007-000 WASHERLock washer |
09164-20007-000 |
from US $6.26 |
||
|
6
|
6
09180-22045-000 SPACER(22X28X3.5) |
09180-22045-000 |
from US $5.46 |
||
|
7
|
7
08211-22423-000 WASHERWasher, primary driven |
08211-22423-000 |
from US $5.46 |
||
|
8
|
8
21200-38850-000 GEAR ASSY,PRI DRIVEN |
21200-38850-000 |
from US $211.60 |
||
|
9
|
9
21251-44D00-000 SPACER,PRIMARY DRIVEN |
21251-44D00-000 |
US $20.79 |
||
|
10
|
10
21411-44D00-000 HUB,CLUTCH SLEEVE |
21411-44D00-000 |
from US $68.45 |
||
|
11
|
11
09103-06099-000 BOLT(6X25) |
09103-06099-000 |
from US $3.04 |
||
|
12
|
12
21413-38F50-000 SPRING,CLUTCH |
21413-38F50-000 |
US $10.35 |
||
|
13
|
13
21441-44D00-000 Plate,clutch Drive |
21441-44D00-000 |
US $31.98 |
||
|
14
|
14
21451-44D00-000 Plate,clutch drivenPlate, clutch driven |
21451-44D00-000 |
from US $9.33 |
||
|
15
|
15
21462-44D00-000 DISC,CLUTCH PRESSURE |
21462-44D00-000 |
from US $35.33 |
||
|
16
|
16
21465-44D00-000 PLATE,CLUTCH RELEASE |
21465-44D00-000 |
from US $11.52 |
||
|
17
|
17
21414-44D00-000 NUT,CLUTCH SLEEVE HUB |
21414-44D00-000 |
US $17.31 |
||
|
18
|
18
09164-20007-000 WASHERLock washer |
09164-20007-000 |
from US $6.26 |
||
|
19
|
19
23220-03G50-000 ARM,CLUTCH RELEASE |
23220-03G50-000 |
from US $57.04 |
||
|
20
|
20
23223-44D11-000 BOLT,CLUTCH RLSE ADJ NO.1 |
23223-44D11-000 |
from US $3.86 |
||
|
21
|
21
23224-44D00-000 BOLT,CLUTCH RLSE ADJ NO.2 |
23224-44D00-000 |
from US $3.20 |
||
|
22
|
22
23230-03G50-000 GUIDE,CL RELEASE ROLLERGuide, clutch release roller |
23230-03G50-000 |
from US $28.34 |
||
|
23
|
23
23250-03G50-000
ROLLER ASSY,CLUTCH RELEASE
|
23250-03G50-000 |
— | ||
|
24
|
24
08211-10242-000 WASHER |
08211-10242-000 |
from US $5.05 |
||
|
25
|
25
08331-3114A-000 CIRCLIPCirclip, sub t/m gr shift |
08331-3114A-000 |
from US $0.91 |
||
|
26
|
26
09140-06023-000 NUTNut, adjuster |
09140-06023-000 |
from US $3.25 |
||
|
27
|
27
09140-08017-000 NUT |
09140-08017-000 |
from US $3.09 |
||
|
28
|
28
09160-06052-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) |
09160-06052-000 |
from US $1.28 |
||
|
29
|
29
08113-69050-000 BearingBearing, clutch rlse |
08113-69050-000 |
from US $25.58 |
||
|
30
|
30
09160-08103-000 WASHER(8X20X1)Washer, clutch rlse no.1 |
09160-08103-000 |
from US $5.56 |
