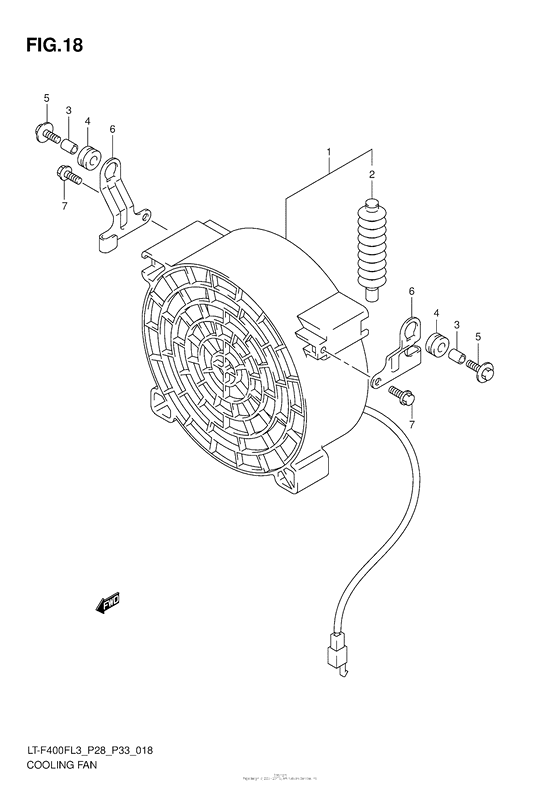

Cooling Fan Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL3
- Engine Capacity
- 376
- Year
- 2013
- Sales region
- USA/Canada (P3/P28)
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17800-27H10-000
FAN ASSY,COOLING
|
17800-27H10-000 |
— | ||
| replacement | |||||
|
1
|
1
17800-27H11-000 Fan Assy,cooling |
17800-27H11-000 |
US $673 |
||
|
2
|
2
17820-07G10-000 BOOT,RDTR FAN MOTORBoot, rdtr fan motor |
17820-07G10-000 |
US $10.08 |
||
|
3
|
3
09180-06310-000 SPACER(6.5X10X10)Spacer (6.8x10x10) |
09180-06310-000 |
from US $1.67 |
||
|
4
|
4
09320-10015-000 CUSHION |
09320-10015-000 |
from US $2.13 |
||
|
5
|
5
09116-06212-000 BOLT(6X20)Bolt, cooling fan |
09116-06212-000 |
from US $3.71 |
||
|
6
|
6
17810-38F00-000 BRACKET,COOLING FA |
17810-38F00-000 |
from US $3.53 |
||
|
7
|
7
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
