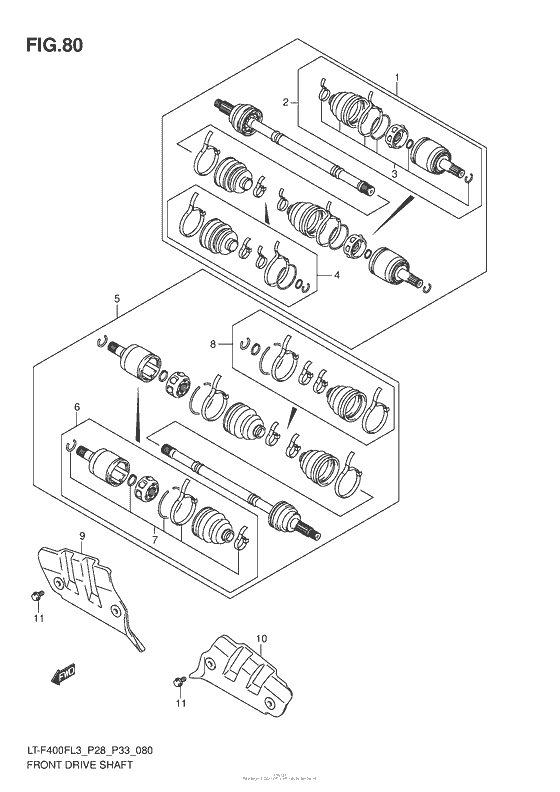

Front Drive Shaft Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL3
- Engine Capacity
- 376
- Year
- 2013
- Sales region
- USA/Canada (P3/P28)
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54901-27H01-000 SHAFT ASSY,FR DRIVE,R |
54901-27H01-000 |
from US $490.79 |
||
|
2
|
2
54933-38F14-000 Joint set |
54933-38F14-000 |
from US $233.31 |
||
|
3
|
3
54931-38F14-000 BOOT SET,INNER |
54931-38F14-000 |
from US $55.20 |
||
|
4
|
4
54930-27H01-000 BOOT SET,OUTER |
54930-27H01-000 |
from US $163.71 |
||
|
5
|
5
54902-27H01-000 SHAFT ASSY,FR DRIVE,L |
54902-27H01-000 |
US $465.63 |
||
|
6
|
6
54933-38F14-000 Joint set |
54933-38F14-000 |
from US $233.31 |
||
|
7
|
7
54931-38F14-000 BOOT SET,INNER |
54931-38F14-000 |
from US $55.20 |
||
|
8
|
8
54930-27H01-000 BOOT SET,OUTER |
54930-27H01-000 |
from US $163.71 |
||
|
9
|
9
54903-27H00-291 Protector,fr d/ |
54903-27H00-291 |
US $13.23 |
||
|
10
|
10
54904-27H00-291 Protector,fr d/ |
54904-27H00-291 |
US $18.41 |
||
|
11
|
11
09111-06085-000 BOLT(6X12) |
09111-06085-000 |
from US $2.40 |
