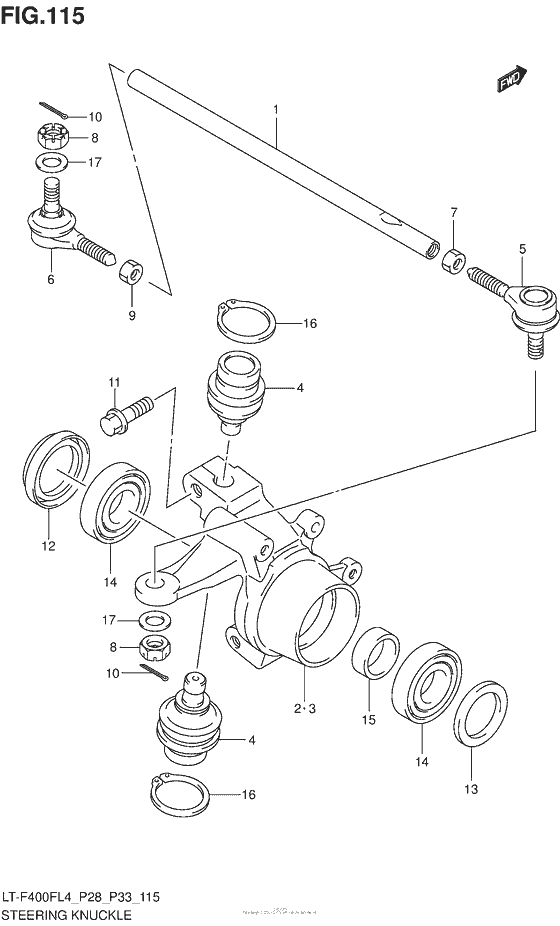

Steering Knuckle (Lt-F400Fl4 P33) Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL4
- Engine Capacity
- 376
- Year
- 2014
- Sales region
- USA/Canada (P3/P28)
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51281-27H00-000 TIE ROD,STEERING |
51281-27H00-000 |
US $54.49 |
||
|
2
|
2
51231-27H00-000 KNUCKLE,STEERING,R |
51231-27H00-000 |
from US $107.61 |
||
|
3
|
3
51241-27H00-000 KNUCKLE,STEERING,L |
51241-27H00-000 |
from US $107.61 |
||
|
4
|
4
51210-38F00-000 END,KNUCKLE STEERING |
51210-38F00-000 |
US $88.76 |
||
|
5
|
5
51260-21G00-000 END,ROD,R |
51260-21G00-000 |
US $89.71 |
||
|
6
|
6
51270-21G00-000 END,ROD,L |
51270-21G00-000 |
US $89.71 |
||
|
7
|
7
51283-21G00-000 NUT,TIE ROD,RNut, tie rod rh |
51283-21G00-000 |
US $5.68 |
||
|
8
|
8
08314-4010B-000 NUTNut, rod end |
08314-4010B-000 |
from US $1.07 |
||
|
9
|
9
09140-10027-000 NUTNut, tie rod lh thread |
09140-10027-000 |
from US $0.91 |
||
|
10
|
10
04111-2020A-000 PINCotter pin, rod end |
04111-2020A-000 |
from US $0.76 |
||
|
11
|
11
51233-09F00-000 BOLT,KNUCKLE(10X30) |
51233-09F00-000 |
US $8.99 |
||
|
12
|
12
09283-38012-000 SEAL,OIL(38X55X8) |
09283-38012-000 |
from US $10.72 |
||
|
13
|
13
09283-38022-000 SEAL,OIL(38X55X9)Dust seal, outer (38x55x7.5) |
09283-38022-000 |
US $17.56 |
||
|
14
|
14
08123-60067-000 BEARINGBearing, front hub |
08123-60067-000 |
from US $16.72 |
||
|
15
|
15
54731-03G00-000 SPACER,HUB BEARING |
54731-03G00-000 |
from US $6.92 |
||
|
16
|
16
08331-31309-000 CIRCLIP |
08331-31309-000 |
from US $1.60 |
||
|
17
|
17
09160-10082-000 WASHER(10.5X19X2)Washer |
09160-10082-000 |
from US $0.96 |
