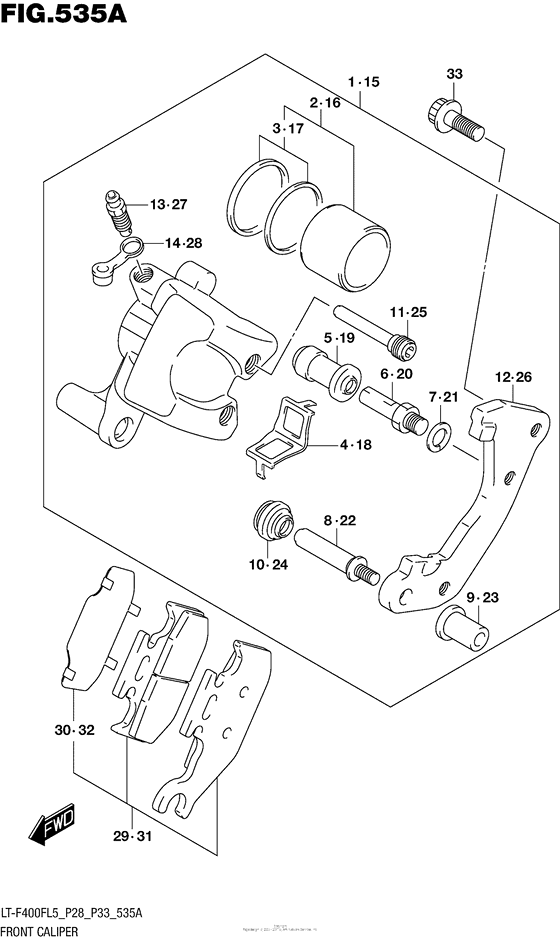

Front Caliper Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL5
- Engine Capacity
- 376
- Year
- 2015
- Sales region
- USA/Canada (P3/P28)
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59100-31G00-999 CALIPER ASSY,FR,R |
59100-31G00-999 |
US $374.71 |
||
|
2
|
2
59300-13810-000 PISTON SET,CALIPERS |
59300-13810-000 |
from US $33.12 |
||
|
3
|
3
69100-13820-000 SEAL SET,PISTON |
69100-13820-000 |
from US $8.12 |
||
|
4
|
4
59315-27C00-000 SPRINGSpring, pad |
59315-27C00-000 |
from US $6.59 |
||
|
5
|
5
59386-13A00-000 BOOT |
59386-13A00-000 |
from US $3.65 |
||
|
6
|
6
59382-13A00-000 BOLT,PIN |
59382-13A00-000 |
from US $2.66 |
||
|
7
|
7
59314-13A00-000 WASHER,WAVE |
59314-13A00-000 |
from US $0.99 |
||
|
8
|
8
59387-00B20-000 PIN,SLIDE |
59387-00B20-000 |
from US $10.82 |
||
|
9
|
9
59388-00B20-000 NUT |
59388-00B20-000 |
from US $8.98 |
||
|
10
|
10
59303-14500-000 BOOT |
59303-14500-000 |
from US $2.89 |
||
|
11
|
11
59145-39D00-000 PIN,HANGER |
59145-39D00-000 |
US $24.75 |
||
|
12
|
12
59151-31G00-000 BRACKET,R |
59151-31G00-000 |
from US $25.21 |
||
|
13
|
13
59121-01A00-000 BLEEDER |
59121-01A00-000 |
US $11.76 |
||
|
14
|
14
59122-01A00-000 CAP,BLEEDER |
59122-01A00-000 |
from US $1.76 |
||
|
15
|
15
59300-31G01-999 CALIPER ASSY,FR,L |
59300-31G01-999 |
US $374.71 |
||
|
16
|
16
59300-13810-000 PISTON SET,CALIPERS |
59300-13810-000 |
from US $33.12 |
||
|
17
|
17
69100-13820-000 SEAL SET,PISTON |
69100-13820-000 |
from US $8.12 |
||
|
18
|
18
59315-27C00-000 SPRINGSpring, pad |
59315-27C00-000 |
from US $6.59 |
||
|
19
|
19
59386-13A00-000 BOOT |
59386-13A00-000 |
from US $3.65 |
||
|
20
|
20
59382-13A00-000 BOLT,PIN |
59382-13A00-000 |
from US $2.66 |
||
|
21
|
21
59314-13A00-000 WASHER,WAVE |
59314-13A00-000 |
from US $0.99 |
||
|
22
|
22
59387-00B20-000 PIN,SLIDE |
59387-00B20-000 |
from US $10.82 |
||
|
23
|
23
59388-00B20-000 NUT |
59388-00B20-000 |
from US $8.98 |
||
|
24
|
24
59303-14500-000 BOOT |
59303-14500-000 |
from US $2.89 |
||
|
25
|
25
59145-39D00-000 PIN,HANGER |
59145-39D00-000 |
US $24.75 |
||
|
26
|
26
59351-31G00-000 BRACKET,L |
59351-31G00-000 |
US $61.39 |
||
|
27
|
27
59121-01A00-000 BLEEDER |
59121-01A00-000 |
US $11.76 |
||
|
28
|
28
59122-01A00-000 CAP,BLEEDER |
59122-01A00-000 |
from US $1.76 |
||
|
29
|
29
59100-31870-000 PAD & SHIM SET,R |
59100-31870-000 |
from US $67.18 |
||
|
30
|
30
69132-28C00-000 SHIM |
69132-28C00-000 |
from US $5.59 |
||
|
31
|
31
59100-31880-000 PAD & SHIM SET,L |
59100-31880-000 |
US $67.18 |
||
|
32
|
32
69132-28C00-000 SHIM |
69132-28C00-000 |
from US $5.59 |
||
|
33
|
33
09106-08174-000 BOLT(8X16) |
09106-08174-000 |
from US $1.68 |
