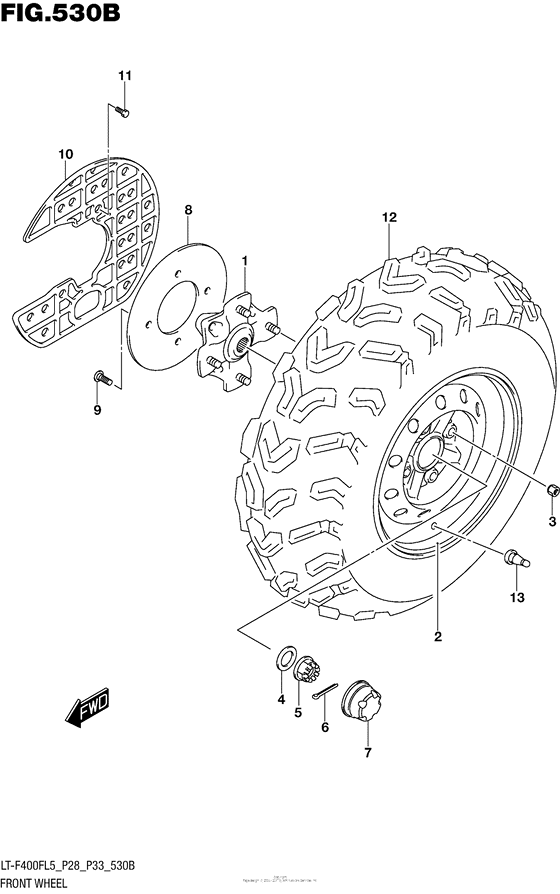

Front Wheel (Lt-F400Fl5 P33) Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL5
- Engine Capacity
- 376
- Year
- 2015
- Sales region
- USA/Canada (P3/P28)
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-27H00-000 HUB,FR WHEEL |
54110-27H00-000 |
from US $96.95 |
||
|
2
|
2
55310-38F30-291 RIM,FR WHEEL(12X6.0AT) |
55310-38F30-291 |
from US $209.76 |
||
|
3
|
3
09140-10021-000 NUT |
09140-10021-000 |
from US $1.67 |
||
|
4
|
4
09164-18004-000 WASHERWasher, hub |
09164-18004-000 |
from US $3.20 |
||
|
5
|
5
09141-18010-000 NUT |
09141-18010-000 |
from US $13.63 |
||
|
6
|
6
04111-4035A-000 PINPin, cotter |
04111-4035A-000 |
from US $2.18 |
||
|
7
|
7
54725-09F01-000 CAP,WHEEL CTR |
54725-09F01-000 |
US $13.43 |
||
|
8
|
8
59211-38F20-000 DISC,FR BRAKE |
59211-38F20-000 |
US $63.09 |
||
|
9
|
9
09106-08160-000 BOLT(8X21)Bolt, brake disc |
09106-08160-000 |
from US $1.67 |
||
|
10
|
10
59231-27H00-000 COVER,FR DISC |
59231-27H00-000 |
from US $34.04 |
||
|
11
|
11
09139-06158-000 SCREW(6X16) |
09139-06158-000 |
from US $1.52 |
||
|
12
|
12
55110-31G30-000 TIRE,FRONT |
55110-31G30-000 |
US $344.83 |
||
|
13
|
13
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) |
43130-24A00-000 |
from US $4.41 |
