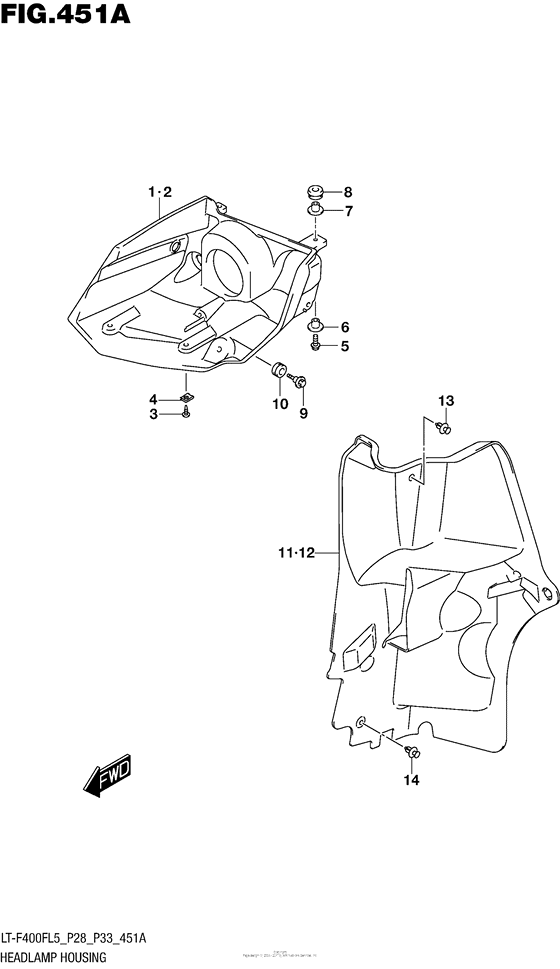

Headlamp Housing Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL5
- Engine Capacity
- 376
- Year
- 2015
- Sales region
- USA/Canada (P3/P28)
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53281-27H01-291 HOUSING,FR LAMP,R |
53281-27H01-291 |
from US $39.01 |
||
| replacement | |||||
|
1
|
1
53281-27H02-291 Housing,Frt Lam |
53281-27H02-291 |
US $37.89 |
||
|
2
|
2
53284-27H01-291 HOUSING,FR LAMP,L |
53284-27H01-291 |
US $27.90 |
||
|
3
|
3
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
4
|
4
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
5
|
5
01550-0630A-000 BOLT |
01550-0630A-000 |
from US $0.96 |
||
|
6
|
6
09169-06073-000 WASHER |
09169-06073-000 |
from US $1.67 |
||
|
7
|
7
09169-06074-000 WASHERWasher |
09169-06074-000 |
from US $2.74 |
||
|
8
|
8
09320-11021-000 CUSHION |
09320-11021-000 |
from US $1.34 |
||
|
9
|
9
09139-06118-000 SCREW(6X22.5) |
09139-06118-000 |
from US $5.20 |
||
|
10
|
10
09320-10501-000 CUSHION |
09320-10501-000 |
from US $1.76 |
||
|
11
|
11
53411-27H00-000 MUDFLAP,FENDER INNER,R |
53411-27H00-000 |
from US $56.88 |
||
|
12
|
12
53421-27H00-000 MUDFLAP,FENDER INNER,L |
53421-27H00-000 |
from US $61.86 |
||
| replacement | |||||
|
12
|
12
53421-27H01-000 MUDFLAP,FENDER INNER,L |
53421-27H01-000 |
US $108.07 |
||
|
13
|
13
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
14
|
14
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
