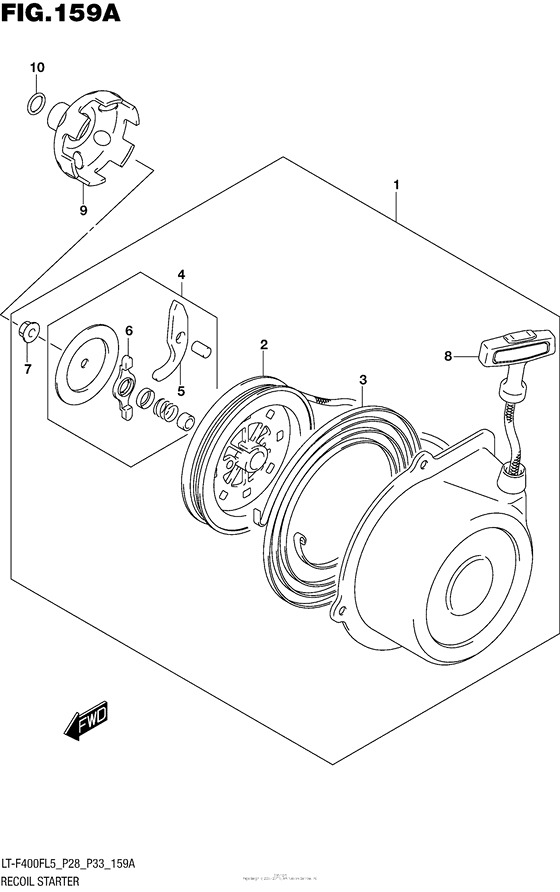

Recoil Starter Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL5
- Engine Capacity
- 376
- Year
- 2015
- Sales region
- USA/Canada (P3/P28)
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18100-24503-000 STARTER ASSY,RECOIL |
18100-24503-000 |
US $304.30 |
||
|
2
|
2
18120-24500-000 REEL,STARTER |
18120-24500-000 |
from US $23.18 |
||
|
3
|
3
18142-24400-000 SPRING,RECOIL |
18142-24400-000 |
from US $17.66 |
||
|
4
|
4
18130-24400-000 Ratchet set |
18130-24400-000 |
from US $22.88 |
||
|
5
|
5
18131-24411-000 RATCHET |
18131-24411-000 |
from US $3.97 |
||
|
6
|
6
18132-24400-000 GUIDE,RATCHET |
18132-24400-000 |
from US $1.62 |
||
|
7
|
7
08316-1006A-000 NUT |
08316-1006A-000 |
from US $0.80 |
||
|
8
|
8
18200-24501-000 GRIP ASSY,STARTER 6.0X1870Rope assy |
18200-24501-000 |
US $51.46 |
||
|
9
|
9
18410-09F02-000 CUP,STARTER |
18410-09F02-000 |
US $88.43 |
||
|
10
|
10
09280-12009-000 O RING(D:1.9,ID:12.6) |
09280-12009-000 |
from US $1.76 |
