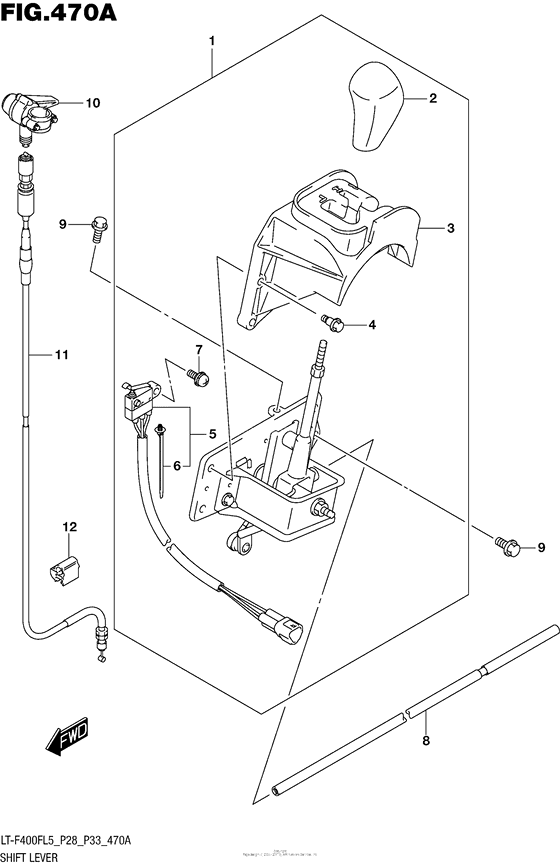

Shift Lever (Lt-F400Fl5 P28) Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FL5
- Engine Capacity
- 376
- Year
- 2015
- Sales region
- USA/Canada (P3/P28)
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57800-27H21-000 LEVER SET,TRANS |
57800-27H21-000 |
US $333.49 |
||
|
2
|
2
57830-27H00-000 KNOB,T/M LEVER |
57830-27H00-000 |
US $35.14 |
||
|
3
|
3
57941-27H00-000 COVER,T/M LEVER GATE |
57941-27H00-000 |
from US $20.24 |
||
|
4
|
4
09111-06079-000 BOLT(6X20.6) |
09111-06079-000 |
from US $1.98 |
||
|
5
|
5
57960-03G10-000
SWITCH ASSY,REVERSE
|
57960-03G10-000 |
— | ||
| replacement | |||||
|
5
|
5
57960-03G11-000 Switch Assy,reverse |
57960-03G11-000 |
from US $38.64 |
||
|
6
|
6
09407-17403-000 CLAMP(L:154)Clamp (l:170) |
09407-17403-000 |
from US $2.88 |
||
|
7
|
7
02112-7310A-000 SCREW |
02112-7310A-000 |
from US $1.93 |
||
|
8
|
8
57911-27H00-000 ROD,T/M LEVER |
57911-27H00-000 |
from US $31.65 |
||
|
9
|
9
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
10
|
10
57920-38F20-000 LEVER,TRANSFER |
57920-38F20-000 |
from US $116.66 |
||
|
11
|
11
58690-27H00-000 CABLE,TRANSFER SHIFT |
58690-27H00-000 |
US $84.24 |
||
|
12
|
12
09403-10405-000 CLAMP |
09403-10405-000 |
from US $4.28 |
||
