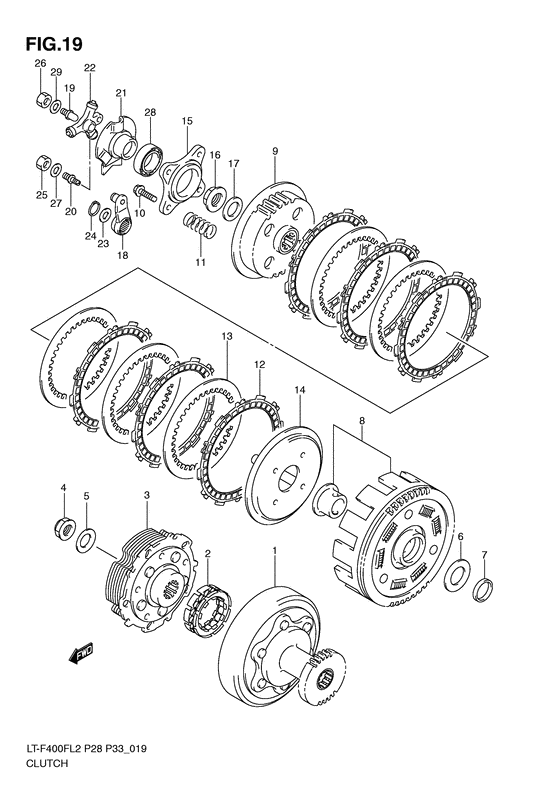

Clutch Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FZL2
- Engine Capacity
- 376
- Year
- 2012
- Sales region
- Canada (P28)
- Frame
- 5SAAK4CA*C7100001~
- Power
- 25 hp
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21120-27H50-000 HOUSING,STARTER CLUTCH |
21120-27H50-000 |
from US $181.79 |
||
|
2
|
2
21273-44D00-000 CLUTCH,PRIMARY DRIVE ONE WAYClutch, one way Clutch, pri drive one way; |
21273-44D00-000 |
US $187.26 |
||
|
3
|
3
21500-27H50-000 SHOE,STARTER CLUTCH |
21500-27H50-000 |
from US $242.88 |
||
|
4
|
4
21518-44D00-000 NUT,STARTER CLUTCH SHOE |
21518-44D00-000 |
US $18.53 |
||
|
5
|
5
09164-20007-000 WASHERLock washer Washer; |
09164-20007-000 |
from US $6.26 |
||
|
6
|
6
09180-22045-000 SPACER(22X28X3.5)Spacer (22x28x3.5); |
09180-22045-000 |
from US $5.46 |
||
|
7
|
7
08211-22423-000 WASHERWasher, primary driven Washer; |
08211-22423-000 |
from US $5.46 |
||
|
8
|
8
21200-38850-000 GEAR ASSY,PRI DRIVENGear assy, primary driven; |
21200-38850-000 |
from US $211.60 |
||
|
9
|
9
21411-44D00-000 HUB,CLUTCH SLEEVE |
21411-44D00-000 |
from US $68.45 |
||
|
10
|
10
09103-06099-000 BOLT(6X25)Bolt (6x25); |
09103-06099-000 |
from US $3.04 |
||
|
11
|
11
21413-38F50-000 SPRING,CLUTCH |
21413-38F50-000 |
US $10.35 |
||
|
12
|
12
21441-44D00-000 Plate,clutch Drive |
21441-44D00-000 |
US $31.98 |
||
|
13
|
13
21451-44D00-000 Plate,clutch drivenPlate, clutch driven |
21451-44D00-000 |
from US $9.33 |
||
|
14
|
14
21462-44D00-000 DISC,CLUTCH PRESSURE |
21462-44D00-000 |
from US $35.33 |
||
|
15
|
15
21465-44D00-000 PLATE,CLUTCH RELEASE |
21465-44D00-000 |
from US $11.52 |
||
|
16
|
16
21414-44D00-000 NUT,CLUTCH SLEEVE HUB |
21414-44D00-000 |
US $17.31 |
||
|
17
|
17
09164-20007-000 WASHERLock washer Washer; |
09164-20007-000 |
from US $6.26 |
||
|
18
|
18
23220-03G50-000 ARM,CLUTCH RELEASE |
23220-03G50-000 |
from US $57.04 |
||
|
19
|
19
23223-44D11-000 BOLT,CLUTCH RLSE ADJ NO.1Bolt, clutch rlse adj no.1; |
23223-44D11-000 |
from US $3.86 |
||
|
20
|
20
23224-44D00-000 BOLT,CLUTCH RLSE ADJ NO.2Bolt, clutch rlse adj no.2; |
23224-44D00-000 |
from US $3.20 |
||
|
21
|
21
23230-03G50-000 GUIDE,CL RELEASE ROLLERGuide, clutch release roller |
23230-03G50-000 |
from US $28.34 |
||
|
22
|
22
23250-03G50-000
ROLLER ASSY,CLUTCH RELEASE
|
23250-03G50-000 |
— | ||
|
23
|
23
08211-10242-000 WASHER |
08211-10242-000 |
from US $5.05 |
||
|
24
|
24
08331-3114A-000 CIRCLIPCirclip, sub t/m gr shift |
08331-3114A-000 |
from US $0.91 |
||
|
25
|
25
09140-06023-000 NUTNut, adjuster |
09140-06023-000 |
from US $3.25 |
||
|
26
|
26
09140-08017-000 NUT |
09140-08017-000 |
from US $3.09 |
||
|
27
|
27
09160-06079-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2); |
09160-06079-000 |
from US $0.77 |
||
| replacement | |||||
|
27
|
27
09160-06052-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) Washer (6.5x16x1.2); |
09160-06052-000 |
from US $1.28 |
||
|
28
|
28
08113-69050-000 BearingBearing, clutch rlse Bearing; |
08113-69050-000 |
from US $25.58 |
||
|
29
|
29
09160-08103-000 WASHER(8X20X1)Washer, clutch rlse no.1 Washer (8x20x1); |
09160-08103-000 |
from US $5.56 |
||
