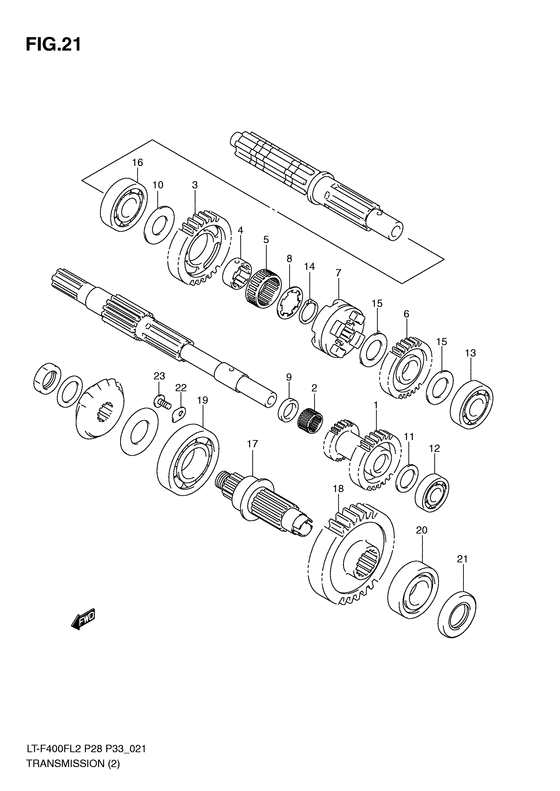

Transmission Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FZL2
- Engine Capacity
- 376
- Year
- 2012
- Sales region
- Canada (P28)
- Frame
- 5SAAK4CA*C7100001~
- Power
- 25 hp
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29150-38F80-000 GEAR,SUB T/M IDLENt:19/13 |
29150-38F80-000 |
from US $121.44 |
||
|
2
|
2
09263-17001-000 BEARING(17X21X12.8)Bearing, reverse idle Bearing (17x21x12.8); |
09263-17001-000 |
from US $10.05 |
||
|
3
|
3
29211-38F80-000 GEAR,SUB T/M DRIVE NO.1Nt:27 |
29211-38F80-000 |
from US $83.17 |
||
|
4
|
4
29215-38F80-000 BUSH,SUB T/M DRIVE NO.1 GEAR |
29215-38F80-000 |
US $37.60 |
||
|
5
|
5
09263-30056-000 BEARING(30X35X16)Bearing (30x35x16); |
09263-30056-000 |
from US $15.46 |
||
|
6
|
6
29220-38F50-000 GEAR,SUB T/M DRIVE NO.2Nt:21 |
29220-38F50-000 |
from US $62.93 |
||
|
7
|
7
29231-38F80-000 DOG,SUB T/M SELECT SLIDINGDog, sub t/m sliding; |
29231-38F80-000 |
from US $49.31 |
||
|
8
|
8
09167-25017-000 WASHER,LOCKWasher; |
09167-25017-000 |
from US $5.27 |
||
|
9
|
9
09180-17076-000 SPACER(17X24X4.5)Washer (17x24x4.5) Spacer (17x24x4.5); |
09180-17076-000 |
from US $11 |
||
|
10
|
10
09181-25251-000 SHIM(25X40X1)Shim (25x36x1.0) Shim (25x40x1); |
09181-25251-000 |
from US $1.82 |
||
|
11
|
11
09181-15195-000 SHIM(15X26X1)Washer (15x26x1.0) Shim (15x26x1); |
09181-15195-000 |
from US $4.06 |
||
|
12
|
12
09262-15022-000
BEARING(15X42X13)
Bearing (15x42x13); |
09262-15022-000 |
— | ||
| replacement | |||||
|
12
|
12
09262-15062-000 BearingBearing (15x42x13); |
09262-15062-000 |
from US $14.24 |
||
|
13
|
13
09262-20139-000 BEARING(20X47X14)Bearing, sub t/m counter, r Bearing (20x47x14); |
09262-20139-000 |
from US $19.20 |
||
|
14
|
14
09380-25003-000 RING,SNAPCirclip Circlip; |
09380-25003-000 |
from US $2.74 |
||
|
15
|
15
08211-20301-000 WASHERWasher; |
08211-20301-000 |
from US $3.71 |
||
|
16
|
16
09262-25124-000 BEARING(25X52X14)Bearing, middle (25x52x14) Bearing (25x52x14); |
09262-25124-000 |
US $50.68 |
||
|
17
|
17
29121-38F60-000 SHAFT,SUB T/M OUTPUT |
29121-38F60-000 |
from US $80.59 |
||
|
18
|
18
29311-38F60-000 GEAR,SUB T/M DRIVENNt:35 |
29311-38F60-000 |
from US $76.54 |
||
|
19
|
19
09262-35038-000 BEARING(35X72X17)Bearing, lh (35x72x17) Bearing (35x72x17); |
09262-35038-000 |
from US $22.04 |
||
|
20
|
20
09262-25136-000 BEARING(25X52X13)Bearing (25x52x13); |
09262-25136-000 |
from US $26.31 |
||
|
21
|
21
09283-25076-000 SEAL,OIL(25X45X5)Seal, oil Oil seal (25x45x5); |
09283-25076-000 |
from US $7.14 |
||
|
22
|
22
24741-21A00-000 RETAINERRetainer, sec drive sft; |
24741-21A00-000 |
from US $1.60 |
||
|
23
|
23
09125-06122-000 SCREW(6X12)Screw (6x12); |
09125-06122-000 |
from US $3.35 |
||
