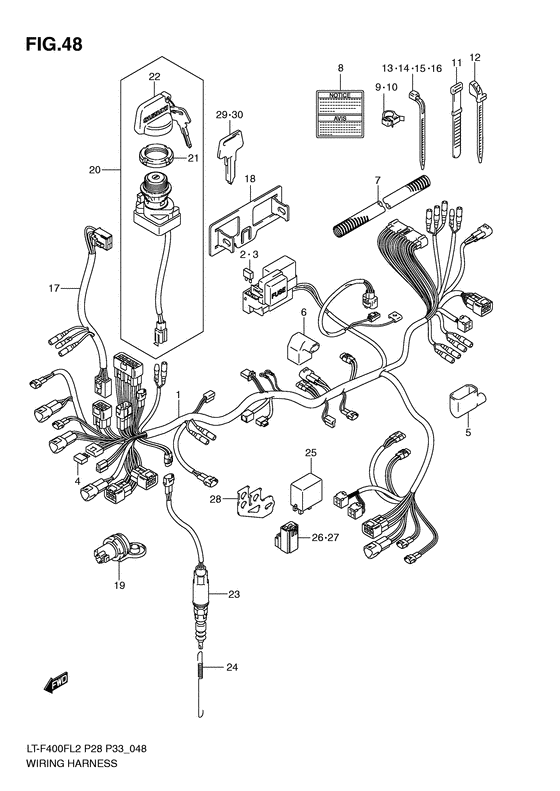

Wiring harness (Lt-f400fzl2 p28) Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FZL2
- Engine Capacity
- 376
- Year
- 2012
- Sales region
- Canada (P28)
- Frame
- 5SAAK4CA*C7100001~
- Power
- 25 hp
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-27HF0-000 Harness,wiring |
36610-27HF0-000 |
US $411.81 |
||
|
2
|
2
09481-10501-000 FUSE(10A)Fuse (10a); |
09481-10501-000 |
from US $1.06 |
||
|
3
|
3
09481-15501-000 FUSE(15A)Fuse (15a); |
09481-15501-000 |
from US $3.25 |
||
|
4
|
4
36611-38A00-000
Diode
|
36611-38A00-000 |
— | ||
| replacement | |||||
|
4
|
4
36611-38A10-000 DIODE |
36611-38A10-000 |
from US $7.14 |
||
|
5
|
5
36618-25H00-000
PROTECTOR,WIRING HARNESS
Protector, wiring harness; |
36618-25H00-000 |
— | ||
|
6
|
6
36618-27H00-000
BOOT,CONNECTOR
|
36618-27H00-000 |
— | ||
|
7
|
7
36619-27H00-000 GUIDE,WIRING HARNESS |
36619-27H00-000 |
US $7.07 |
||
|
8
|
8
38852-03G20-000 LABEL,POWER SOURCE TERMINAL |
38852-03G20-000 |
US $5.48 |
||
|
9
|
9
09403-20403-000 CLAMP |
09403-20403-000 |
from US $4.88 |
||
|
10
|
10
09403-30403-000 CLAMP |
09403-30403-000 |
US $21.30 |
||
|
11
|
11
09407-12402-000 CLAMP(L:120)Clamp, wiring harness Clamp (l:120); |
09407-12402-000 |
from US $1.98 |
||
|
12
|
12
09407-12407-000 CLAMP |
09407-12407-000 |
US $19.10 |
||
|
13
|
13
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap Clamp (l:125); |
09407-14403-000 |
from US $2.08 |
||
|
14
|
14
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $1.98 |
||
|
15
|
15
09407-25401-000 CLAMP(L:235)Clamp (l:235) Clamp (l:235); |
09407-25401-000 |
from US $2.08 |
||
|
16
|
16
09407-11401-000 CLAMP(L:95)Clamp, stator lead Clamp (l:95); |
09407-11401-000 |
from US $1.76 |
||
|
17
|
17
36855-27H00-000 WIRE,FR BRAKE SW LEADWire, front brake sw lead; |
36855-27H00-000 |
from US $30.73 |
||
|
18
|
18
36744-38F00-000 BRACKET,FUSE BOX |
36744-38F00-000 |
from US $5.34 |
||
|
19
|
19
38850-03G10-000 TERMINAL,POWER SOURCE |
38850-03G10-000 |
from US $24.04 |
||
|
20
|
20
37110-38F00-000
SWITCH ASSY,IGNITION
|
37110-38F00-000 |
— | ||
| replacement | |||||
|
20
|
20
37110-38F01-000 Switch Assy,ignition |
37110-38F01-000 |
US $110.96 |
||
|
21
|
21
37112-24500-000 NUT,IGNITION SWITCHNut, ignition switch; |
37112-24500-000 |
from US $9.12 |
||
|
22
|
22
37142-19B00-000
MASCOT,KEY
Mascot, key; |
37142-19B00-000 |
— | ||
| replacement | |||||
|
22
|
22
37142-19B01-000 Mascot,keyMascot, key; |
37142-19B01-000 |
from US $5.76 |
||
|
23
|
23
37740-38F01-000 SWITCH ASSY,STOP LAMP |
37740-38F01-000 |
from US $59.98 |
||
|
24
|
24
09443-06016-000 SPRINGSpring, stop lamp |
09443-06016-000 |
from US $4.49 |
||
|
25
|
25
38730-09F00-000 RELAY,NEUTRAL STARTRelay, neutral start; |
38730-09F00-000 |
US $62.85 |
||
|
26
|
26
38740-31G10-000
RELAY ASSY
Relay assy, fan motor; |
38740-31G10-000 |
— | ||
| replacement | |||||
|
26
|
26
38740-31G11-000 Relay Assy,backup LampRelay assy, fan motor; |
38740-31G11-000 |
US $37.04 |
||
|
27
|
27
38740-31G10-000
RELAY ASSY
Relay assy, fuel pump; |
38740-31G10-000 |
— | ||
| replacement | |||||
|
27
|
27
38740-31G11-000 Relay Assy,backup LampRelay assy, fuel pump; |
38740-31G11-000 |
US $37.04 |
||
|
28
|
28
38741-27H10-000
BRACKET,RELAY
|
38741-27H10-000 |
— | ||
|
29
|
29
37146-19B00-000 KEY,BLANK(TYPE:C)Key, blank type c Key, blank (type:c); Opt |
37146-19B00-000 |
from US $8.32 |
||
|
30
|
30
37146-19B10-000 KEY,BLANK(TYPE:D)Key, blank type d Key, blank (type:d); Opt |
37146-19B10-000 |
from US $4.82 |
||
