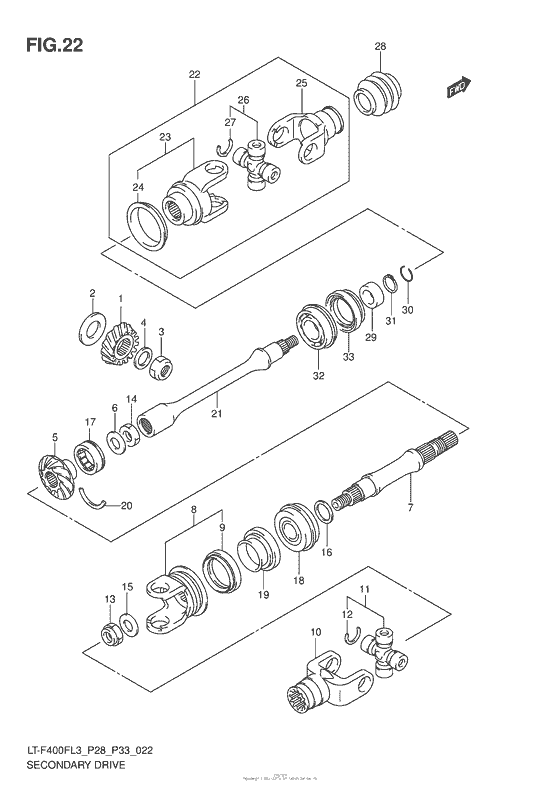

Secondary Drive Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FZL3
- Engine Capacity
- 376
- Year
- 2013
- Sales region
- USA/Canada (P3/P28)
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24911-44D11-000 GEAR,SECONDARY DRIVE BEVEL |
24911-44D11-000 |
US $256.16 |
||
|
2
|
2
24935-03811-000 SHIM SET,SEC DRIVE BEVEL |
24935-03811-000 |
from US $65.14 |
||
|
3
|
3
09140-20012-000 NUT |
09140-20012-000 |
from US $5.88 |
||
|
4
|
4
09181-20223-000 SHIM(20X32X1)Washer, sec drive bevel gr |
09181-20223-000 |
from US $1.82 |
||
|
5
|
5
24921-44D10-000 GEAR,SECONDARY DRIVE BEVEL |
24921-44D10-000 |
from US $132.48 |
||
|
6
|
6
08211-22362-000 WASHER |
08211-22362-000 |
US $22.80 |
||
|
7
|
7
24971-38F50-000 SHAFT,SEC DRIVEN OUTPUT RR |
24971-38F50-000 |
from US $137.63 |
||
|
8
|
8
27130-03G00-000 YOKE,RR DRIVE OUTPUTYoke, rr drive output |
27130-03G00-000 |
US $211.87 |
||
|
9
|
9
27592-38F00-000 PLATE |
27592-38F00-000 |
US $13.01 |
||
|
10
|
10
27140-27H01-000 YOKE,PROP SHAFT JOINT |
27140-27H01-000 |
from US $73.23 |
||
|
11
|
11
27200-19810-000
JOINT SET,UNIVERSAL
|
27200-19810-000 |
— | ||
| replacement | |||||
|
11
|
11
27200-19811-000 JOINT SET,UNIVE |
27200-19811-000 |
US $80.36 |
||
|
12
|
12
09380-20016-000 CIRCLIP |
09380-20016-000 |
from US $2.25 |
||
|
13
|
13
09159-16003-000 NUTNut, rear drive output yoke |
09159-16003-000 |
from US $1.67 |
||
|
14
|
14
09159-22005-000 NUT |
09159-22005-000 |
from US $31.84 |
||
|
15
|
15
09160-16026-000 WASHER(16X30X3)Washer (18.5x35x4) |
09160-16026-000 |
from US $4.10 |
||
|
16
|
16
24945-03811-000 SHIM SET,SEC DRIVEN BEVEL |
24945-03811-000 |
US $128.04 |
||
|
17
|
17
09263-30050-000 BEARING(30X50X17) |
09263-30050-000 |
from US $22.05 |
||
|
18
|
18
09267-25014-000 BEARING(25X52X20.6)Brg, sec driven output sft rr |
09267-25014-000 |
from US $60.35 |
||
|
19
|
19
09283-34008-000 SEAL,OIL(34X52X9) |
09283-34008-000 |
from US $11.44 |
||
|
20
|
20
09390-50002-000 C RING |
09390-50002-000 |
from US $4.13 |
||
|
21
|
21
24961-27H50-000 SHAFT,SEC DRIVEN OUTPUT FR |
24961-27H50-000 |
from US $115.18 |
||
|
22
|
22
27100-27H01-000
YOKE ASSY,UNIVERSAL JOINT
|
27100-27H01-000 |
— | ||
| replacement | |||||
|
22
|
22
27100-27H02-000 Yoke Assy,universal Joint |
27100-27H02-000 |
US $352 |
||
|
23
|
23
27130-27H01-000 YOKE,FR DRIVE OUTPUT |
27130-27H01-000 |
from US $94.58 |
||
|
24
|
24
27592-38F00-000 PLATE |
27592-38F00-000 |
US $13.01 |
||
|
25
|
25
27140-27H01-000 YOKE,PROP SHAFT JOINT |
27140-27H01-000 |
from US $73.23 |
||
|
26
|
26
27200-19810-000
JOINT SET,UNIVERSAL
|
27200-19810-000 |
— | ||
| replacement | |||||
|
26
|
26
27200-19811-000 JOINT SET,UNIVE |
27200-19811-000 |
US $80.36 |
||
|
27
|
27
09380-20016-000 CIRCLIP |
09380-20016-000 |
from US $2.25 |
||
|
28
|
28
27153-27H10-000 BOOT,PROPELLER SHAFT |
27153-27H10-000 |
from US $6.44 |
||
|
29
|
29
27591-27H00-000 COLLAR,FR DRIVE OUTPUT |
27591-27H00-000 |
from US $12.22 |
||
|
30
|
30
09381-19005-000 CIRCLIPC ring, sec driven output |
09381-19005-000 |
from US $1.52 |
||
|
31
|
31
08331-31229-000 CIRCLIP |
08331-31229-000 |
from US $1.44 |
||
|
32
|
32
09262-25131-000 BEARING(25X52X15) |
09262-25131-000 |
from US $29.62 |
||
|
33
|
33
09283-34008-000 SEAL,OIL(34X52X9) |
09283-34008-000 |
from US $11.44 |
||
