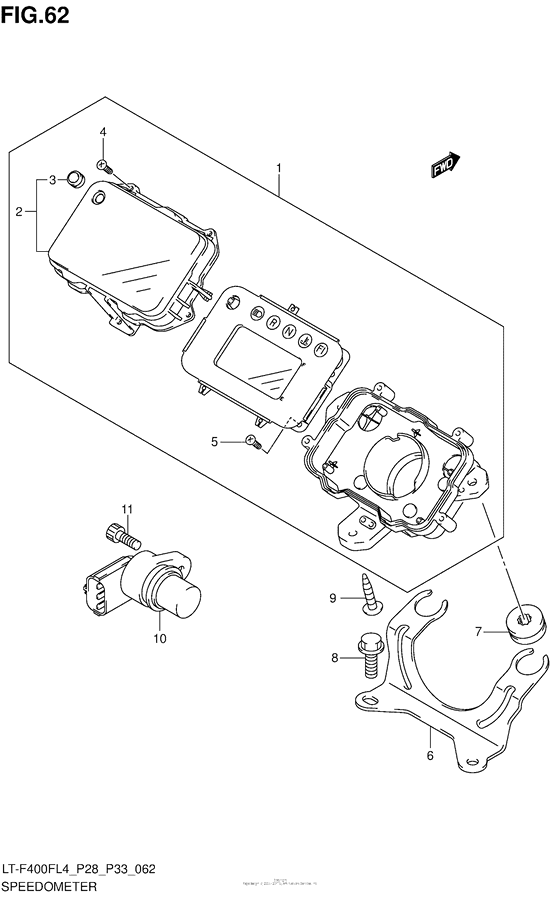

Speedometer (Lt-F400Fzl4 P28) Diagram Suzuki LT-F400 KingQuad 400 4WD
- Model code
- LT-F400FZL4
- Engine Capacity
- 376
- Year
- 2014
- Sales region
- USA/Canada (P3/P28)
- Model
- KingQuad 400 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-27HD0-000
SPEEDOMETER ASSY
|
34100-27HD0-000 |
— | ||
|
2
|
2
34150-27HA0-000 CASE,UPR |
34150-27HA0-000 |
from US $70.28 |
||
|
3
|
3
34124-03GE0-000 SWITCH,RUBBERSwitch rubber |
34124-03GE0-000 |
US $69.92 |
||
|
4
|
4
34183-09F00-000 SCREW(3X12)Screw (3x12) |
34183-09F00-000 |
from US $1.36 |
||
|
5
|
5
34184-27EE0-000 SCREW(3X12) |
34184-27EE0-000 |
from US $2.43 |
||
|
6
|
6
34162-27H00-000 BRACKET,SPEEDOMETER |
34162-27H00-000 |
from US $86.64 |
||
|
7
|
7
34955-13E00-000
CUSHION
|
34955-13E00-000 |
— | ||
| replacement | |||||
|
7
|
7
34955-13E01-000
Cushion,speedometer
|
34955-13E01-000 |
— | ||
|
8
|
8
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.80 |
||
|
9
|
9
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.63 |
||
|
10
|
10
34990-27H00-000 SENSOR,SPEED |
34990-27H00-000 |
US $113.80 |
||
|
11
|
11
07130-0616A-000 BOLTBolt, piston jet valve |
07130-0616A-000 |
from US $0.96 |
||
| replacement | |||||
|
11
|
11
07130-0616B-000 BOLT |
07130-0616B-000 |
from US $0.91 |
||
