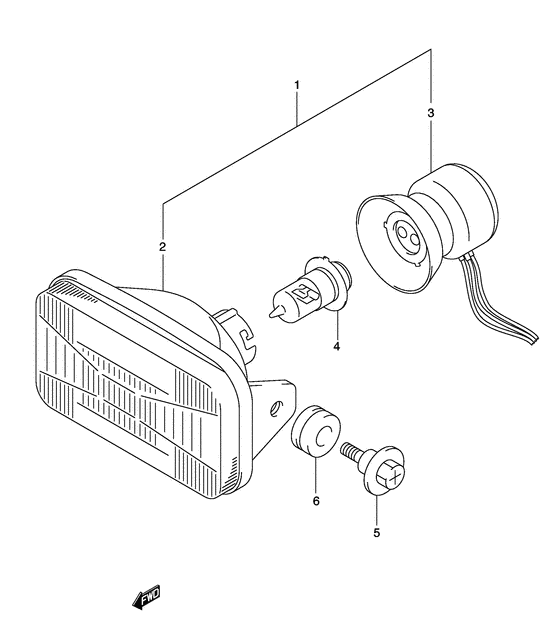

Headlamp Diagram Suzuki LT-F400 Eiger 2WD
- Model code
- LT-F400K2
- Engine Capacity
- 376
- Year
- 2002
- Sales region
- Australia (E24)
- Frame
- JSAAK45A*22100001~
- Power
- 25 hp
- Model
- Eiger 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-38F30-999 HEADLAMP ASSY |
35100-38F30-999 |
US $212.67 |
||
|
2
|
2
35121-38F30-000 UNIT ASSY |
35121-38F30-000 |
from US $120.31 |
||
|
3
|
3
35171-38F30-000 SOCKET,HEADLAMP |
35171-38F30-000 |
US $45.31 |
||
|
4
|
4
09471-12097-000 BULB(14V30/30W,BF130-03800A)Bulb (14v,30/30w); |
09471-12097-000 |
from US $14.44 |
||
| replacement | |||||
|
4
|
4
09471-12093-000 BULB(12V30/30W,STANLEY 03300A)Bulb (14v,30/30w); |
09471-12093-000 |
from US $39.64 |
||
|
5
|
5
09139-06118-000 SCREW(6X22.5)Screw; |
09139-06118-000 |
from US $5.20 |
||
|
6
|
6
09320-10501-000 CUSHIONCushion; |
09320-10501-000 |
from US $1.76 |
||
