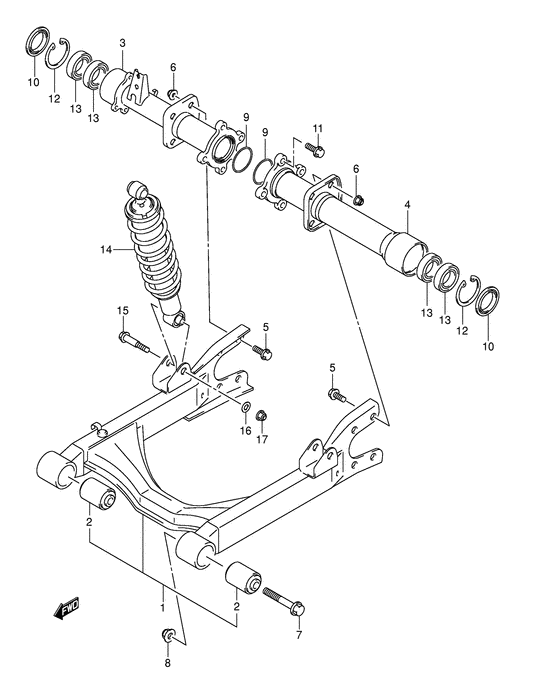

Rear swingingarm Diagram Suzuki LT-F400 Eiger 2WD
- Model code
- LT-F400K2
- Engine Capacity
- 376
- Year
- 2002
- Sales region
- Australia (E24)
- Frame
- JSAAK45A*22100001~
- Power
- 25 hp
- Model
- Eiger 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61100-38870-000
Swingingarm set, rear
|
61100-38870-000 |
— | ||
| replacement | |||||
|
1
|
1
61101-27850-000 SWINGINGARM SET,RR |
61101-27850-000 |
from US $327.98 |
||
|
2
|
2
61230-38F10-000
Bush, pivot
|
61230-38F10-000 |
— | ||
| replacement | |||||
|
2
|
2
61230-38F11-000 BUSH,RR SWINGINGARM PIVOT |
61230-38F11-000 |
from US $29.62 |
||
|
3
|
3
61300-38F00-000
Housing, rr axle, r
Housing, rr axle, r; |
61300-38F00-000 |
— | ||
| replacement | |||||
|
3
|
3
61300-38F10-000
Housing, rr axle, r
Housing, rr axle, r; |
61300-38F10-000 |
— | ||
|
4
|
4
61400-38F00-000
Housing, rr axle, l
Housing, rr axle, l; |
61400-38F00-000 |
— | ||
| replacement | |||||
|
4
|
4
61400-38F10-000
HOUSING,RR AXLE,L
Housing, rr axle, l; |
61400-38F10-000 |
— | ||
|
5
|
5
01550-10253-000
Bolt
Bolt, rr swgarm bracket; |
01550-10253-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-1025B-000 BoltBolt, rr swgarm bracket, l Bolt, rr swgarm bracket; |
01550-1025B-000 |
from US $5.59 |
||
|
5
|
5
01550-1025A-000 BOLTBolt, drive gear Bolt, rr swgarm bracket; |
01550-1025A-000 |
from US $1.06 |
||
|
6
|
6
09159-10058-000
Nut
Nut, rr swgarm bracket; |
09159-10058-000 |
— | ||
| replacement | |||||
|
6
|
6
09159-10115-000 NUTNut, rr swgarm bracket; |
09159-10115-000 |
from US $2.58 |
||
|
7
|
7
09103-12068-000 BOLT(12X80)Bolt, pivot; |
09103-12068-000 |
from US $4.37 |
||
|
8
|
8
09159-12054-000 NUTNut, pivot Nut, pivot; |
09159-12054-000 |
from US $7.78 |
||
|
9
|
9
09280-70005-000 O RING(D:3.1,ID:69.4)Band (d:3.1 id:69.4) O ring, rr axle housing; |
09280-70005-000 |
from US $3.94 |
||
|
10
|
10
09283-38022-000 SEAL,OIL(38X55X9)Dust seal, outer (38x55x7.5) Seal, rr axle housing; |
09283-38022-000 |
US $17.56 |
||
|
11
|
11
01550-10303-000
Bolt
Bolt, axle housing; |
01550-10303-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-1030B-000 BOLTBolt, axle housing rear Bolt, axle housing; |
01550-1030B-000 |
from US $5.07 |
||
|
11
|
11
01550-1030A-000 BOLTBolt, axle housing; |
01550-1030A-000 |
from US $1.12 |
||
|
12
|
12
08331-41556-000
Circlip
|
08331-41556-000 |
— | ||
| replacement | |||||
|
12
|
12
08331-41559-000 CIRCLIP |
08331-41559-000 |
from US $2.43 |
||
|
13
|
13
08123-60067-000 BEARINGBearing, front hub Bearing, hub; |
08123-60067-000 |
from US $16.72 |
||
|
14
|
14
62100-38F00-019
ABSORBER ASSY,RR SHOCK
Absorber assy, rear shock (black); |
62100-38F00-019 |
— | ||
|
15
|
15
09103-10126-000 BOLT(10X48)Bolt (10x48) Bolt, upper; |
09103-10126-000 |
from US $2.13 |
||
|
16
|
16
09160-10501-000 WASHER(10.5X30X2.3)Washer, upper, outer Washer, upper, outer; |
09160-10501-000 |
from US $1.08 |
||
|
17
|
17
08319-31103-000
Nut
|
08319-31103-000 |
— | ||
| replacement | |||||
|
17
|
17
08319-3110A-000 NUTNut, fr differential |
08319-3110A-000 |
from US $1.98 |
||
