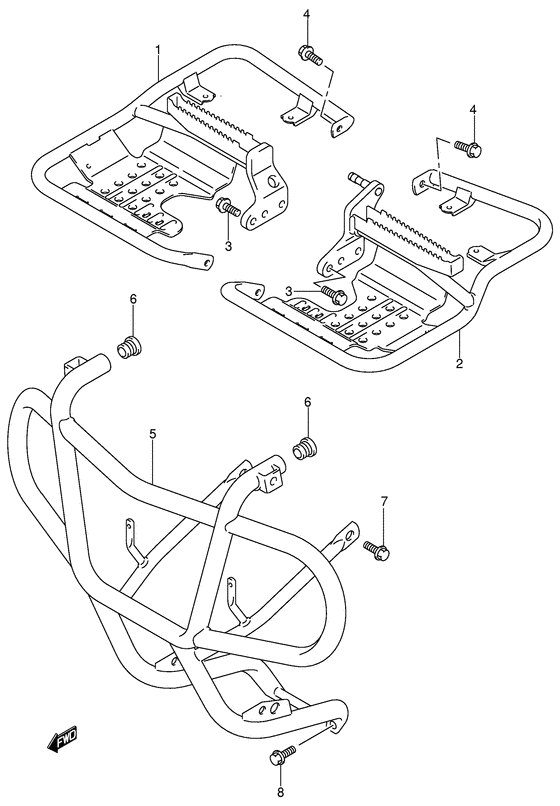

Footrest Diagram Suzuki LT-F400 Eiger 2WD
- Model code
- LT-F400K4
- Engine Capacity
- 376
- Year
- 2004
- Sales region
- Australia (P24)
- Frame
- JSAAK45A*47100001~
- Power
- 25 hp
- Model
- Eiger 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43510-38F10-000
Footrest, front rh
~f.no.5saak45a3x102000 |
43510-38F10-000 |
— | ||
| replacement | |||||
|
1
|
1
43510-38F30-000
FOOTREST,R
~f.no.5saak45a3x102000 |
43510-38F30-000 |
— | ||
|
1
|
1
43510-38F30-000
FOOTREST,R
F.no.5saak45a3x102001~ |
43510-38F30-000 |
— | ||
|
2
|
2
43520-38F10-000
Footrest, front lh
~f.no.5saak45a3x102000 |
43520-38F10-000 |
— | ||
| replacement | |||||
|
2
|
2
43520-38F30-000
Footrest, front lh
~f.no.5saak45a3x102000 |
43520-38F30-000 |
— | ||
|
2
|
2
43520-38F30-000
Footrest, front lh
F.no.5saak45a3x102001~ |
43520-38F30-000 |
— | ||
|
3
|
3
09103-10275-000 BOLT(10X25)Bolt, front Bolt, front; |
09103-10275-000 |
from US $6.36 |
||
|
4
|
4
01550-08163-000
Bolt, holder
Bolt, rear; |
01550-08163-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0816B-000 BOLTBolt, rear; |
01550-0816B-000 |
from US $0.91 |
||
|
4
|
4
01550-0816A-000 BOLTBolt, rear Bolt, rear; |
01550-0816A-000 |
from US $0.91 |
||
|
5
|
5
43990-38F00-019
Grip, front (black)
Grip, front (black); ~f.no.5saak45a3x102000 |
43990-38F00-019 |
— | ||
| replacement | |||||
|
5
|
5
46700-38FA0-019 GRIP,FRGrip, front (black); ~f.no.5saak45a3x102000 |
46700-38FA0-019 |
US $543.88 |
||
|
5
|
5
43990-38FA0-019 Grip, front (black)Grip, front (black); F.no.5saak45a3x102001~ |
43990-38FA0-019 |
US $327.29 |
||
| replacement | |||||
|
5
|
5
46700-38FA0-019 GRIP,FRGrip, front (black); F.no.5saak45a3x102001~ |
46700-38FA0-019 |
US $543.88 |
||
|
5
|
5
46700-38FC0-019
GRIP,FR
Grip, front (black); Model k5/k6 p24 |
46700-38FC0-019 |
— | ||
|
5
|
5
43990-38FB0-019 Grip, front (black)Grip, front (black); Model k3/k4 p17 |
43990-38FB0-019 |
US $370.20 |
||
| replacement | |||||
|
5
|
5
46700-38FA0-019 GRIP,FRGrip, front (black); Model k3/k4 p17 |
46700-38FA0-019 |
US $543.88 |
||
|
5
|
5
46700-38FD0-019
Grip, front (black)
Grip, front (black); Model k5 p17 |
46700-38FD0-019 |
— | ||
| replacement | |||||
|
5
|
5
46700-38FC0-019
GRIP,FR
Grip, front (black); Model k5 p17 |
46700-38FC0-019 |
— | ||
|
6
|
6
43978-38F00-000 CAP,FR GRIP |
43978-38F00-000 |
from US $4.45 |
||
|
7
|
7
01550-08163-000
Bolt, holder
Bolt, upper; |
01550-08163-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0816B-000 BOLTBolt, upper; |
01550-0816B-000 |
from US $0.91 |
||
|
7
|
7
01550-0816A-000 BOLTBolt, rear Bolt, upper; |
01550-0816A-000 |
from US $0.91 |
||
|
8
|
8
09103-08283-000
BOLT(8X16)
Bolt, lower; |
09103-08283-000 |
— | ||
| replacements | |||||
|
8
|
8
09103-08283-A05
BOLT(8X16)
Bolt, lower; |
09103-08283-A05 |
— | ||
|
8
|
8
09103-08570-000 Bolt,front GripBolt, lower; |
09103-08570-000 |
from US $3.69 |
||
