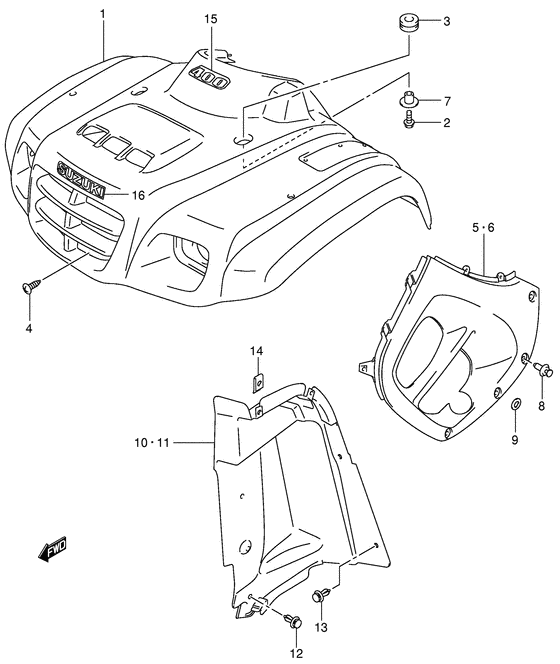

Front fender (Model k4) Diagram Suzuki LT-F400 Eiger 2WD
- Model code
- LT-F400K4
- Engine Capacity
- 376
- Year
- 2004
- Sales region
- Australia (P24)
- Frame
- JSAAK45A*47100001~
- Power
- 25 hp
- Model
- Eiger 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-38F20-YT8
Fender, front (green)
Fender, front (green); P17 |
53111-38F20-YT8 |
— | ||
| replacements | |||||
|
1
|
1
02142-0520B-000 SCREWScrew, rear Fender, front (green); P17 |
02142-0520B-000 |
from US $0.76 |
||
|
1
|
1
09159-05019-000 NUTFender, front (green); P17 |
09159-05019-000 |
from US $2.28 |
||
|
1
|
1
09160-05046-000 WASHER(5.5X20X1.4)Fender, front (green); P17 |
09160-05046-000 |
from US $3.20 |
||
|
1
|
1
53111-38F21-YT8
FENDER,FR
Fender, front (green); P17 |
53111-38F21-YT8 |
— | ||
|
1
|
1
53111-38F20-YT9
Fender, front (red)
Fender, front (red); |
53111-38F20-YT9 |
— | ||
| replacements | |||||
|
1
|
1
02142-0520B-000 SCREWScrew, rear Fender, front (red); |
02142-0520B-000 |
from US $0.76 |
||
|
1
|
1
09159-05019-000 NUTFender, front (red); |
09159-05019-000 |
from US $2.28 |
||
|
1
|
1
09160-05046-000 WASHER(5.5X20X1.4)Fender, front (red); |
09160-05046-000 |
from US $3.20 |
||
|
1
|
1
53111-38F21-YT9
FENDER,FR
Fender, front (red); |
53111-38F21-YT9 |
— | ||
|
1
|
1
53111-38F20-YU1
Fender, front (yellow)
Fender, front (yellow); P24 |
53111-38F20-YU1 |
— | ||
| replacements | |||||
|
1
|
1
02142-0520B-000 SCREWScrew, rear Fender, front (yellow); P24 |
02142-0520B-000 |
from US $0.76 |
||
|
1
|
1
09159-05019-000 NUTFender, front (yellow); P24 |
09159-05019-000 |
from US $2.28 |
||
|
1
|
1
09160-05046-000 WASHER(5.5X20X1.4)Fender, front (yellow); P24 |
09160-05046-000 |
from US $3.20 |
||
|
1
|
1
53111-38F21-YU1
FENDER,FR
Fender, front (yellow); P24 |
53111-38F21-YU1 |
— | ||
|
2
|
2
01550-06253-000
Bolt (6x25)
|
01550-06253-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0625B-000 BOLTBolt, head cover |
01550-0625B-000 |
from US $0.91 |
||
|
2
|
2
01550-0625A-000 BOLTBolt |
01550-0625A-000 |
from US $0.96 |
||
|
3
|
3
09320-11019-000
Cushion
|
09320-11019-000 |
— | ||
| replacement | |||||
|
3
|
3
09320-11021-000 CUSHION |
09320-11021-000 |
from US $1.34 |
||
|
4
|
4
09139-06083-000 SCREW(6X16)Screw, front center Screw, front center; |
09139-06083-000 |
from US $1.82 |
||
|
5
|
5
53112-38F10-291 COVER,FR FENDER SIDE,R(BLACK)Cover, side rh (black); |
53112-38F10-291 |
US $101.58 |
||
|
6
|
6
53122-38F10-291 COVER,FR FENDER SIDE,LCover, side lh (black); |
53122-38F10-291 |
US $45.78 |
||
|
7
|
7
09169-06074-000 WASHERWasher Washer; |
09169-06074-000 |
from US $2.74 |
||
|
8
|
8
09409-07333-000 CLIPClip, inner Clip, inner; |
09409-07333-000 |
from US $1.22 |
||
|
9
|
9
53341-38F00-000
Washer, side
Washer, side; |
53341-38F00-000 |
— | ||
| replacement | |||||
|
9
|
9
53341-38F01-000 WASHERWasher, side; |
53341-38F01-000 |
from US $2.13 |
||
|
10
|
10
53411-38F01-000 MUDFLAP,FENDER INNER,R |
53411-38F01-000 |
from US $47.30 |
||
| replacement | |||||
|
10
|
10
53411-38F02-000
Mud flap,fr inner,r no.1
|
53411-38F02-000 |
— | ||
|
11
|
11
53421-38F00-000 Mud flap, inner lh |
53421-38F00-000 |
US $36.10 |
||
| replacements | |||||
|
11
|
11
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
11
|
11
09159-05019-000 NUT |
09159-05019-000 |
from US $2.28 |
||
|
11
|
11
09160-05046-000 WASHER(5.5X20X1.4) |
09160-05046-000 |
from US $3.20 |
||
|
11
|
11
53421-38F01-000 MUDFLAP,FR INNER,L NO.1 |
53421-38F01-000 |
from US $60.35 |
||
|
12
|
12
09409-08335-000 CLIPClip, front side; |
09409-08335-000 |
from US $1.87 |
||
|
13
|
13
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
14
|
14
09148-05038-000 NUTNut, inner Nut, inner; |
09148-05038-000 |
from US $0.91 |
||
|
15
|
15
68151-38F40-MW1
EMBLEM,FR FENDER FR
|
68151-38F40-MW1 |
— | ||
|
16
|
16
68171-38F00-20H EMBLEM,SUZUKIEmblem, front lower (silver) Emblem, front lower (silver); |
68171-38F00-20H |
from US $8.35 |
||
