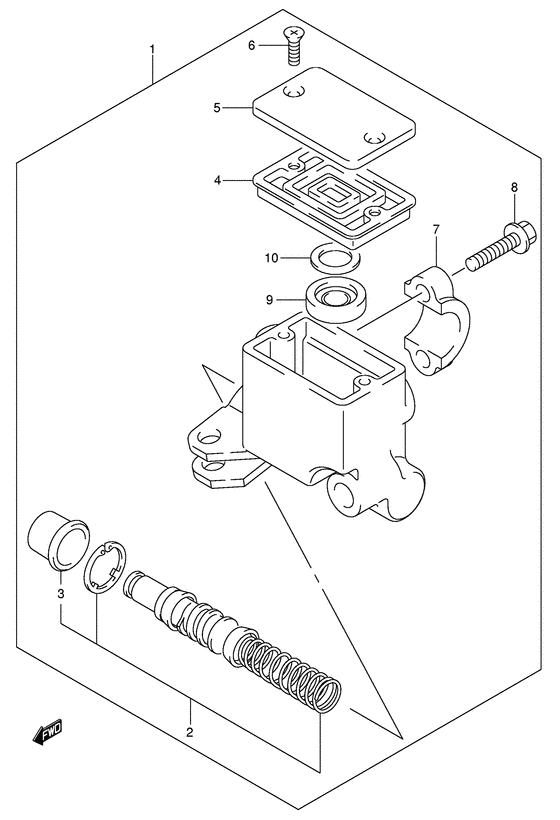

Front Master Cylinder Diagram Suzuki LT-F400 Eiger 2WD
- Model code
- LT-F400K4
- Engine Capacity
- 376
- Year
- 2004
- Sales region
- Australia (P24)
- Frame
- JSAAK45A*47100001~
- Power
- 25 hp
- Model
- Eiger 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59600-44B11-000 CYLINDER ASSY,FR MASTERCylinder assy, front maseer Cylinder assy, front master; Model k3/k4/k5/k6 |
59600-44B11-000 |
from US $278.40 |
||
|
1
|
1
59600-12D10-000 CYLINDER ASSY,FR MASTERModel k7 |
59600-12D10-000 |
from US $193.20 |
||
|
2
|
2
59600-45850-000 PISTON & CUP SETPiston / cup set Piston/cup set; |
59600-45850-000 |
from US $40.48 |
||
|
3
|
3
59666-44300-000 BOOT |
59666-44300-000 |
from US $1.82 |
||
|
4
|
4
59667-44B00-000 DIAPHRAGMDiaphragm |
59667-44B00-000 |
from US $8.27 |
||
|
5
|
5
69669-24A01-000 CAP |
69669-24A01-000 |
from US $8.98 |
||
|
6
|
6
69689-49300-000 SCREWScrew, cap Screw, cap; |
69689-49300-000 |
from US $1.51 |
||
|
7
|
7
59671-36500-000 HOLDER |
59671-36500-000 |
from US $6.86 |
||
|
8
|
8
59675-19C00-000 BOLT(6X25)Model k3/k4/k5/k6 |
59675-19C00-000 |
from US $1.68 |
||
|
8
|
8
59675-02FA0-000 BOLT(6X22)Model k7 |
59675-02FA0-000 |
US $6.10 |
||
|
9
|
9
59748-15400-000 SEPERATOR |
59748-15400-000 |
from US $5.59 |
||
|
10
|
10
59749-15400-000 PLATE |
59749-15400-000 |
from US $1.62 |
