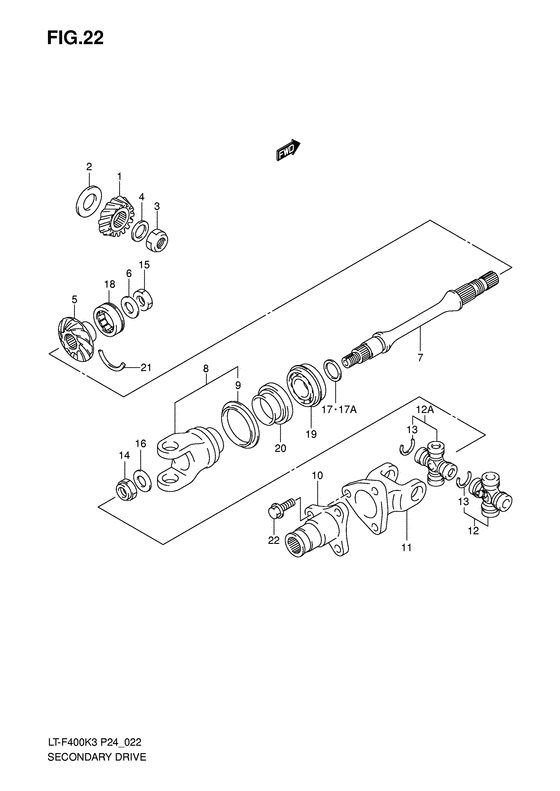

Secondary drive Diagram Suzuki LT-F400 Eiger 2WD
- Model code
- LT-F400K4
- Engine Capacity
- 376
- Year
- 2004
- Sales region
- Australia (P24)
- Frame
- JSAAK45A*47100001~
- Power
- 25 hp
- Model
- Eiger 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24911-44D11-000 GEAR,SECONDARY DRIVE BEVELNt:15 |
24911-44D11-000 |
US $256.16 |
||
|
2
|
2
24935-03811-000 SHIM SET,SEC DRIVE BEVELShim, set, sec drive bevel gr; T:0.25/0.30/0.35/0.55/0.58/, 0.60/0.63/0.65/0.68/0.70/, 0.73/0.75/0.78/0.80/0.83/, 0.85/0.88/0.90/0.93/0.95/, 0.98/1.00/1.03/1.05/1.08/, 1.10/1.13/1.15/1.18/1.20/, 1.23/1.25/1.28/1.30, |
24935-03811-000 |
from US $65.14 |
||
|
3
|
3
09140-20012-000 NUTNut, sec drive bevel gear; |
09140-20012-000 |
from US $5.88 |
||
|
4
|
4
09181-20223-000 SHIM(20X32X1)Washer, sec drive bevel gr Washer, sec drive bevel gear; 20.1x32x10 |
09181-20223-000 |
from US $1.82 |
||
|
5
|
5
24921-44D10-000 GEAR,SECONDARY DRIVE BEVEL |
24921-44D10-000 |
from US $132.48 |
||
|
6
|
6
08211-22362-000 WASHERWasher, sec driven gear; |
08211-22362-000 |
US $22.80 |
||
|
7
|
7
24971-38F50-000 SHAFT,SEC DRIVEN OUTPUT RR |
24971-38F50-000 |
from US $137.63 |
||
|
8
|
8
27130-03G00-000 YOKE,RR DRIVE OUTPUTYoke, rr drive output Yoke, rear drive output; |
27130-03G00-000 |
US $211.87 |
||
|
9
|
9
27592-38F00-000 PLATEPlate, output; |
27592-38F00-000 |
US $13.01 |
||
|
10
|
10
27150-38F00-000 SHAFT,PROPELLER RRShaft, propeller rr |
27150-38F00-000 |
from US $113.71 |
||
|
11
|
11
27161-38F11-000 YOKE,PROP SHAFT JOINTYoke, prop shaft joint rr Yoke, prop shaft joint rear; |
27161-38F11-000 |
from US $192.42 |
||
|
12
|
12
27200-38810-000 JOINT SET,UNIVERSALJoint set, universal; Model k3/k4/k5/k6 p24 |
27200-38810-000 |
from US $58.88 |
||
|
12A
|
12A
27200-19810-000
JOINT SET,UNIVERSAL
Joint set, universal; Model k3/k4/k5/k6 p17 |
27200-19810-000 |
— | ||
| replacement | |||||
|
12A
|
12A
27200-19811-000 JOINT SET,UNIVEJoint set, universal; Model k3/k4/k5/k6 p17 |
27200-19811-000 |
US $80.36 |
||
|
13
|
13
09380-20016-000 CIRCLIP |
09380-20016-000 |
from US $2.25 |
||
|
14
|
14
09159-16003-000 NUTNut, rear drive output yoke Nut, rear drive output yoke; |
09159-16003-000 |
from US $1.67 |
||
|
15
|
15
09159-22005-000 NUTNut, sec driven gear; |
09159-22005-000 |
from US $31.84 |
||
|
16
|
16
09160-16026-000 WASHER(16X30X3)Washer (18.5x35x4) Washer, rear output flange; 16x30x3 |
09160-16026-000 |
from US $4.10 |
||
|
17
|
17
09181-25051-000 SHIM(25X34X0.6)Shim (t:0.60) Shim, sec driven; 25x34x0.6,model k3/k4/k5 |
09181-25051-000 |
from US $4.76 |
||
|
17
|
17
09181-25052-000 SHIM(25X34X0.65)Shim (t:0.65) Shim, sec driven; 25x34x0.65,model k3/k4/k5 |
09181-25052-000 |
from US $4.76 |
||
|
17
|
17
09181-25053-000 Shim (t:0.70)Shim, sec driven; 25x34x0.70,model k3/k4/k5 |
09181-25053-000 |
from US $2.52 |
||
| replacement | |||||
|
17
|
17
09181-25160-000 SHIM(25X34X0.7)Shim (t:0.7) Shim, sec driven; 25x34x0.70,model k3/k4/k5 |
09181-25160-000 |
from US $1.76 |
||
|
17
|
17
09181-25054-000 SHIM(25X34X0.75)Shim (t:0.75) Shim, sec driven; 25x34x0.75,model k3/k4/k5 |
09181-25054-000 |
from US $4.76 |
||
|
17
|
17
09181-25055-000 Shim (t:0.80)Shim, sec driven; 25x34x0.80,model k3/k4/k5 |
09181-25055-000 |
US $16.20 |
||
| replacement | |||||
|
17
|
17
09181-25162-000 SHIM(25X34X0.8)Shim, sec driven; 25x34x0.80,model k3/k4/k5 |
09181-25162-000 |
US $16.20 |
||
|
17
|
17
09181-25056-000 SHIM(25X34X0.85)Shim (t:0.85) Shim, sec driven; 25x34x0.85,model k3/k4/k5 |
09181-25056-000 |
from US $4.66 |
||
|
17
|
17
09181-25057-000 SHIM(25X34X0.90)Shim: (0.9) Shim, sec driven; 25x34x0.90,model k3/k4/k5 |
09181-25057-000 |
from US $1.60 |
||
| replacement | |||||
|
17
|
17
09181-25164-000 SHIM(25X34X0.9)Shim, sec driven; 25x34x0.90,model k3/k4/k5 |
09181-25164-000 |
US $16.20 |
||
|
17
|
17
09181-25058-000 SHIM(25X34X0.95)Shim (t:0.95) Shim, sec driven; 25x34x0.95,model k3/k4/k5 |
09181-25058-000 |
from US $4.76 |
||
|
17
|
17
09181-25059-000 SHIM(25X34X1)Shim (t:1.00) Shim, sec driven; 25x34x1.00,model k3/k4/k5 |
09181-25059-000 |
from US $2.99 |
||
| replacement | |||||
|
17
|
17
09181-25167-000 SHIM(25X34X1)Washer, shift shaft Shim, sec driven; 25x34x1.00,model k3/k4/k5 |
09181-25167-000 |
from US $1.82 |
||
|
17
|
17
09181-25060-000 SHIM(25X34X1.05)Shim (t:1.05) Shim, sec driven; 25x34x1.05,model k3/k4/k5 |
09181-25060-000 |
from US $4.66 |
||
|
17
|
17
09181-25061-000 SHIM(25X34X1.1)Shim (t:1.10) Shim, sec driven; 25x34x1.10,model k3/k4/k5 |
09181-25061-000 |
from US $2.25 |
||
|
17
|
17
09181-25062-000 SHIM(25X34X1.15)Shim (t:1.15) Shim, sec driven; 25x34x1.15,model k3/k4/k5 |
09181-25062-000 |
from US $5.24 |
||
|
17
|
17
09181-25063-000 SHIM(25X34X1.2)Shim (t:1.20) Shim, sec driven; 25x34x1.20,model k3/k4/k5 |
09181-25063-000 |
from US $5.13 |
||
|
17A
|
17A
24945-03811-000 SHIM SET,SEC DRIVEN BEVELShim, sec driven; Model k6/k7, t:0.55/0.58/0.60/0.63/0.65/0.68, /0.70/0.73/0.75/0.78/0.80/0.83, /0.85/0.88/0.90/0.93/0.95/0.98, /1.00/1.03/1.05/1.08/1.10/1.13, /1.15/1.18/1.20/1.23/1.25/1.28, /1.30/1.33/1.35/1.38/1.40 |
24945-03811-000 |
US $128.04 |
||
|
18
|
18
09263-30050-000 BEARING(30X50X17)Bearing, sec driven gear m; 30x50x17 |
09263-30050-000 |
from US $22.05 |
||
|
19
|
19
09267-25014-000 BEARING(25X52X20.6)Brg, sec driven output sft rr Bearing, sec driven output shaft rear; 25x52x20.6 |
09267-25014-000 |
from US $60.35 |
||
|
20
|
20
09283-34008-000 SEAL,OIL(34X52X9)Oil seal, driven shaft rear; 34x52x9 |
09283-34008-000 |
from US $11.44 |
||
|
21
|
21
09390-50002-000 C RINGRing, sec driven bearing m; |
09390-50002-000 |
from US $4.13 |
||
|
22
|
22
01550-10203-000
Bolt
Bolt, prop shaft rear; |
01550-10203-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-1020A-000 BOLTBolt, bal sprocket Bolt, prop shaft rear; |
01550-1020A-000 |
from US $0.96 |
||
