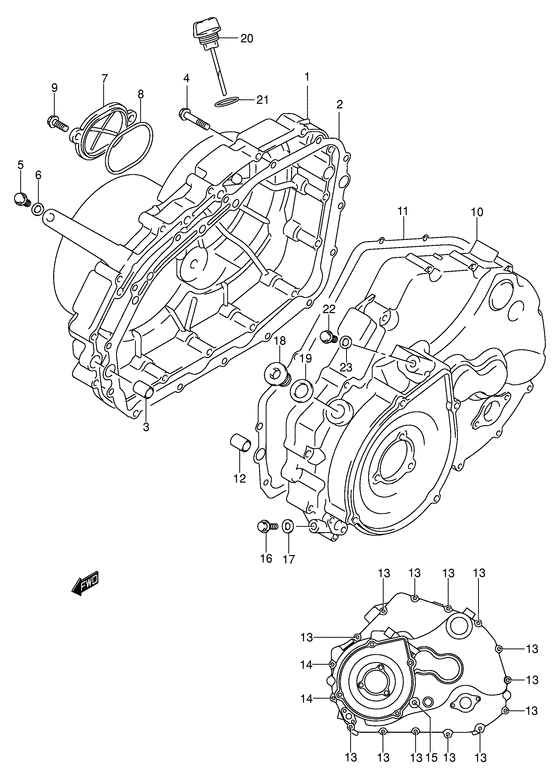

Crankcase cover Diagram Suzuki LT-F400 Eiger 2WD
- Model code
- LT-F400K7
- Engine Capacity
- 376
- Year
- 2007
- Sales region
- USA/Canada (P3/P28)
- Frame
- JSAAK45A*77100001~
- Power
- 25 hp
- Model
- Eiger 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-38F11-000 Cover,clutch |
11341-38F11-000 |
from US $230 |
||
|
2
|
2
11482-38F10-000 GASKET,CLUTCH COVERGasket, clutch cover (na) |
11482-38F10-000 |
US $29.63 |
||
|
3
|
3
04211-13189-000 PINPin; |
04211-13189-000 |
from US $1.19 |
||
|
4
|
4
01547-06403-000
Bolt
|
01547-06403-000 |
— | ||
| replacement | |||||
|
4
|
4
01547-0640B-000 Bolt |
01547-0640B-000 |
from US $0.91 |
||
|
5
|
5
01550-06123-000
Bolt
Plug, oil gallery; |
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BOLTBolt, clamp Plug, oil gallery; |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 BOLTPlug, oil gallery; |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
7
|
7
11175-47D00-000 CAP,INSPECTION |
11175-47D00-000 |
from US $11.78 |
||
|
8
|
8
11177-14D01-000 O RING,INSPECTION CAPO ring, inspection cap O ring, inspection cap; |
11177-14D01-000 |
from US $2.64 |
||
|
9
|
9
01550-06203-000
Bolt
Bolt, inspection cap; |
01550-06203-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-0620B-000 BOLTBolt, inspection cap Bolt, inspection cap; |
01550-0620B-000 |
from US $0.76 |
||
|
10
|
10
11351-38F10-000
COVER,MAGNETO
|
11351-38F10-000 |
— | ||
|
11
|
11
11483-38F10-000 GASKET,MAGNETO COVERGasket, magneto cover (na) |
11483-38F10-000 |
US $32.16 |
||
|
12
|
12
04211-13189-000 PINPin; |
04211-13189-000 |
from US $1.19 |
||
|
13
|
13
01547-06403-000
Bolt
|
01547-06403-000 |
— | ||
| replacement | |||||
|
13
|
13
01547-0640B-000 Bolt |
01547-0640B-000 |
from US $0.91 |
||
|
14
|
14
01547-06553-000
Bolt
|
01547-06553-000 |
— | ||
| replacement | |||||
|
14
|
14
01547-0655B-000 BOLT |
01547-0655B-000 |
from US $1.87 |
||
|
15
|
15
09103-08040-000 BOLT(8X140)Bolt, (l:140) Bolt, (l:140); |
09103-08040-000 |
from US $2.88 |
||
|
16
|
16
01550-08123-000
Bolt
Plug, oil gallery; |
01550-08123-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0812B-000 BoltPlug, drain Plug, oil gallery; |
01550-0812B-000 |
from US $0.96 |
||
|
16
|
16
01550-0812A-000 BOLTPlug, oil gallery; |
01550-0812A-000 |
from US $0.91 |
||
|
17
|
17
09168-08029-000 GASKET(8.2X16X1)Washer (8.2x16x1) |
09168-08029-000 |
from US $1.76 |
||
|
18
|
18
09248-16012-000 PLUG(16X8)Plug, t.d.c check Plug, t.d.c check; |
09248-16012-000 |
from US $2.72 |
||
|
19
|
19
09168-16002-000 GASKET(16X22X2)Gasket, t.d.c check; |
09168-16002-000 |
from US $0.90 |
||
|
20
|
20
11971-38F00-000 GAUGE,OIL LEVEL |
11971-38F00-000 |
from US $5.81 |
||
|
21
|
21
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap O ring, oil level gauge; |
09280-17003-000 |
from US $1.51 |
||
|
22
|
22
01550-06123-000
Bolt
Plug, oil gallery; |
01550-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0612B-000 BOLTBolt, clamp Plug, oil gallery; |
01550-0612B-000 |
from US $0.76 |
||
|
22
|
22
01550-0612A-000 BOLTPlug, oil gallery; |
01550-0612A-000 |
from US $0.76 |
||
|
23
|
23
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket, oil gallery plug; |
09168-06023-000 |
from US $1.51 |
||
