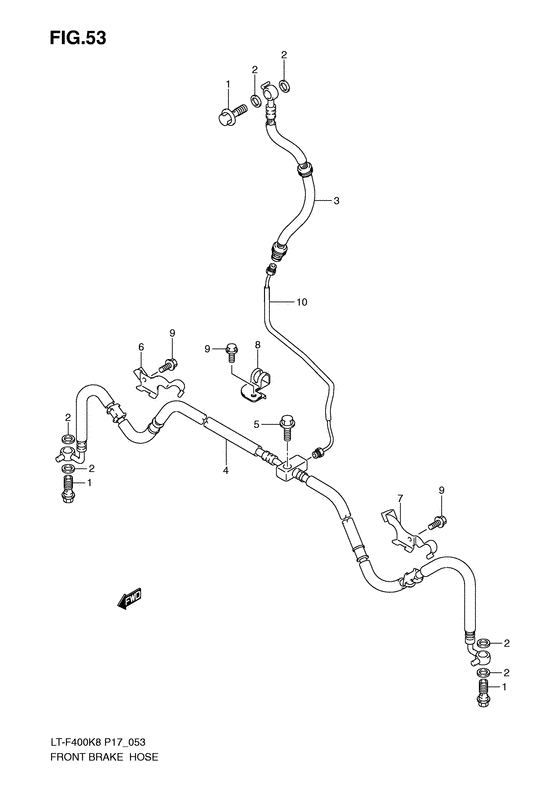

Front brake hose Diagram Suzuki LT-F400 KingQuad 400 2WD
- Model code
- LT-F400K8(P17) K8
- Engine Capacity
- 376
- Year
- 2008
- Sales region
- Sweden (P17)
- Frame
- 5SAAK48A*87100001~
- Power
- 25 hp
- Model
- KingQuad 400 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09360-10062-000 UNIONBolt, upper Bolt, union; |
09360-10062-000 |
from US $4.64 |
||
|
2
|
2
09161-10009-000 WASHER(10X15X1.5)Lock washer Washer (10x15x1.5); |
09161-10009-000 |
from US $1.06 |
||
|
3
|
3
59480-27H00-000 HOSE,FR BRAKE NO.1 |
59480-27H00-000 |
from US $22.59 |
||
| replacement | |||||
|
3
|
3
59480-27H11-000 HOSE,FRONT BRAKE NO.1 |
59480-27H11-000 |
US $33.71 |
||
|
4
|
4
59240-27H00-000
Hose, front brake no.2 rh
Hose, front brake no.2 rh; Model k8/k9 |
59240-27H00-000 |
— | ||
| replacement | |||||
|
4
|
4
59240-27H20-000 HOSE,FR BRAKE NO.2Hose, front brake no.2 rh; Model k8/k9 |
59240-27H20-000 |
from US $79.82 |
||
|
4
|
4
59240-27H10-000
Hose comp,front brake no.2
Hose, front brake no.2 rh; Model l0 |
59240-27H10-000 |
— | ||
| replacement | |||||
|
4
|
4
59240-27H20-000 HOSE,FR BRAKE NO.2Hose, front brake no.2 rh; Model l0 |
59240-27H20-000 |
from US $79.82 |
||
|
5
|
5
01550-0625A-000 BOLTBolt Bolt, fr brake hose no.2; |
01550-0625A-000 |
from US $0.96 |
||
|
6
|
6
59261-27H00-000 CLAMP,FR BRAKE HOSE NO.2,R |
59261-27H00-000 |
US $6.66 |
||
|
7
|
7
59271-27H00-000 CLAMP,FR BRAKE HOSE NO.2,L |
59271-27H00-000 |
US $6.66 |
||
|
8
|
8
59266-27H00-000 CLAMP,FR BK HOSE NO.2 MIDDLE |
59266-27H00-000 |
US $5.15 |
||
|
9
|
9
01550-0616A-000 BOLT |
01550-0616A-000 |
from US $0.76 |
||
|
10
|
10
59250-27H00-000 PIPE,FR BRAKE |
59250-27H00-000 |
from US $11.04 |
||
