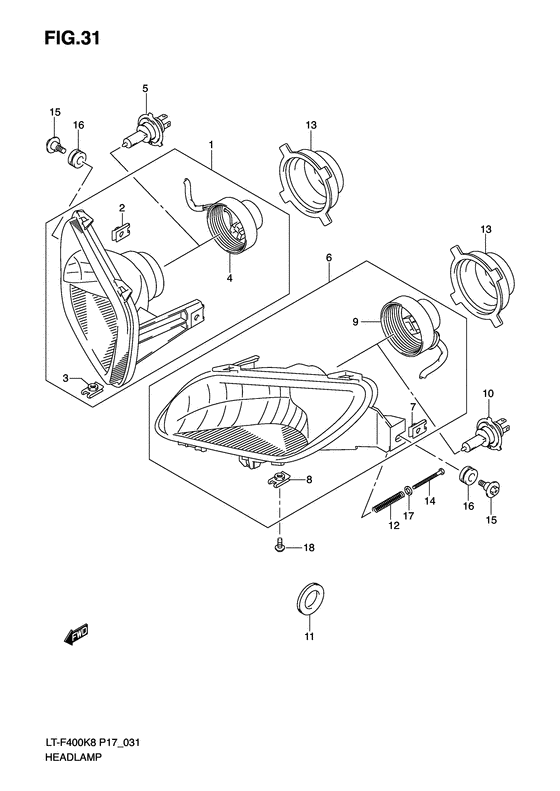

Headlamp Diagram Suzuki LT-F400 KingQuad 400 2WD
- Model code
- LT-F400K8(P17) K8
- Engine Capacity
- 376
- Year
- 2008
- Sales region
- Sweden (P17)
- Frame
- 5SAAK48A*87100001~
- Power
- 25 hp
- Model
- KingQuad 400 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-31G90-999 HEADLAMP ASSY,RHeadlamp assy, r; |
35100-31G90-999 |
US $204.24 |
||
|
2
|
2
35157-31G90-000
NUT
Nut (m6); |
35157-31G90-000 |
— | ||
|
3
|
3
35157-05G50-000 NUT(M5)Nut (m5); |
35157-05G50-000 |
from US $3.09 |
||
|
4
|
4
35171-31GM1-000
CORD ASSY,R
Cord assy, r; |
35171-31GM1-000 |
— | ||
|
5
|
5
09471-12101-000 BULB(12V35/35W,HS1)Bulb (12v35/35w,hs1) Bulb (12v35/35w,hs1); |
09471-12101-000 |
from US $87.47 |
||
|
6
|
6
35300-31G90-999
HEADLAMP ASSY,L
Headlamp assy, l; |
35300-31G90-999 |
— | ||
| replacement | |||||
|
6
|
6
35300-31G92-999
Headlamp assy,l
Headlamp assy, l; |
35300-31G92-999 |
— | ||
|
7
|
7
35157-31G90-000
NUT
Nut (m6); |
35157-31G90-000 |
— | ||
|
8
|
8
35157-05G50-000 NUT(M5)Nut (m5); |
35157-05G50-000 |
from US $3.09 |
||
|
9
|
9
35171-31GH1-000
CORD ASSY,L
Cord assy, l; |
35171-31GH1-000 |
— | ||
|
10
|
10
09471-12101-000 BULB(12V35/35W,HS1)Bulb (12v35/35w,hs1) Bulb (12v35/35w,hs1); |
09471-12101-000 |
from US $87.47 |
||
|
11
|
11
09308-07011-000 GROMMETGrommet; |
09308-07011-000 |
from US $4.13 |
||
|
12
|
12
35154-31300-000 SPRINGSpring, headlamp adjust Spring, headlamp adjust; |
35154-31300-000 |
from US $1.60 |
||
|
13
|
13
35174-31G00-000 COVER,HEADLAMP HSG |
35174-31G00-000 |
from US $6.24 |
||
|
14
|
14
09125-04031-000 SCREW(4X50)Screw, headlamp adjust; 4x50 |
09125-04031-000 |
from US $1.60 |
||
|
15
|
15
09139-06118-000 SCREW(6X22.5)Screw, headlamp; |
09139-06118-000 |
from US $5.20 |
||
|
16
|
16
09320-10501-000 CUSHIONCushion, headlamp; |
09320-10501-000 |
from US $1.76 |
||
|
17
|
17
08322-0104A-000 WASHERWasher, cam rocker arm Washer, headlamp; |
08322-0104A-000 |
from US $3.03 |
||
|
18
|
18
09136-05046-000 SCREW(5X16)Screw, adjust (5x16) Screw (5x16); |
09136-05046-000 |
from US $3.35 |
||
