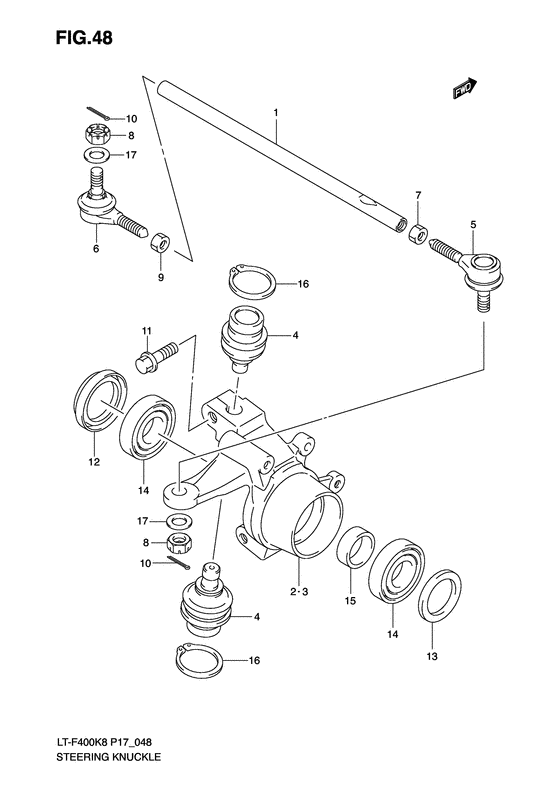

Steering knuckle Diagram Suzuki LT-F400 KingQuad 400 2WD
- Model code
- LT-F400L0(P17) L0
- Engine Capacity
- 376
- Year
- 2010
- Sales region
- Sweden (P17)
- Frame
- 5SAAK4BA*A7100001~
- Power
- 25 hp
- Model
- KingQuad 400 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51281-27H00-000 TIE ROD,STEERING |
51281-27H00-000 |
US $54.49 |
||
|
2
|
2
51231-27H00-000 KNUCKLE,STEERING,R |
51231-27H00-000 |
from US $107.61 |
||
|
3
|
3
51241-27H00-000 KNUCKLE,STEERING,L |
51241-27H00-000 |
from US $107.61 |
||
|
4
|
4
51210-38F00-000 END,KNUCKLE STEERING |
51210-38F00-000 |
US $88.76 |
||
|
5
|
5
51260-21G00-000 END,ROD,R |
51260-21G00-000 |
US $89.71 |
||
|
6
|
6
51270-21G00-000 END,ROD,LRod, end lh; |
51270-21G00-000 |
US $89.71 |
||
|
7
|
7
51283-21G00-000 NUT,TIE ROD,RNut, tie rod rh Nut, tie rod rh; |
51283-21G00-000 |
US $5.68 |
||
|
8
|
8
08314-4010B-000 NUTNut, rod end Nut, rod end; |
08314-4010B-000 |
from US $1.07 |
||
|
9
|
9
09140-10027-000 NUTNut, tie rod lh thread Nut, tie rod lh; |
09140-10027-000 |
from US $0.91 |
||
|
10
|
10
04111-2020A-000 PINCotter pin, rod end Cotter pin, rod end; |
04111-2020A-000 |
from US $0.76 |
||
|
11
|
11
51233-09F00-000 BOLT,KNUCKLE(10X30)Bolt, knuckle (10x30); |
51233-09F00-000 |
US $8.99 |
||
|
12
|
12
09283-38012-000 SEAL,OIL(38X55X8)Dust seal, inner (38x55x8); |
09283-38012-000 |
from US $10.72 |
||
|
13
|
13
09283-38022-000 SEAL,OIL(38X55X9)Dust seal, outer (38x55x7.5) Dust seal, outer (38x55x7.5); |
09283-38022-000 |
US $17.56 |
||
|
14
|
14
08123-60067-000 BEARINGBearing, front hub P17 |
08123-60067-000 |
from US $16.72 |
||
|
14
|
14
08133-60067-000 BEARINGP24 |
08133-60067-000 |
US $26.31 |
||
|
15
|
15
54731-03G00-000 SPACER,HUB BEARING |
54731-03G00-000 |
from US $6.92 |
||
|
16
|
16
08331-3130A-000
Circlip
|
08331-3130A-000 |
— | ||
| replacement | |||||
|
16
|
16
08331-31309-000 CIRCLIP |
08331-31309-000 |
from US $1.60 |
||
|
17
|
17
09162-10010-000 WASHER,LOCKWasher, rod end Washer, rod end; Model k8/k9 |
09162-10010-000 |
from US $5.07 |
||
|
17
|
17
09160-10082-000 WASHER(10.5X19X2)Washer Washer, rod end; Model l0 |
09160-10082-000 |
from US $0.96 |
||
