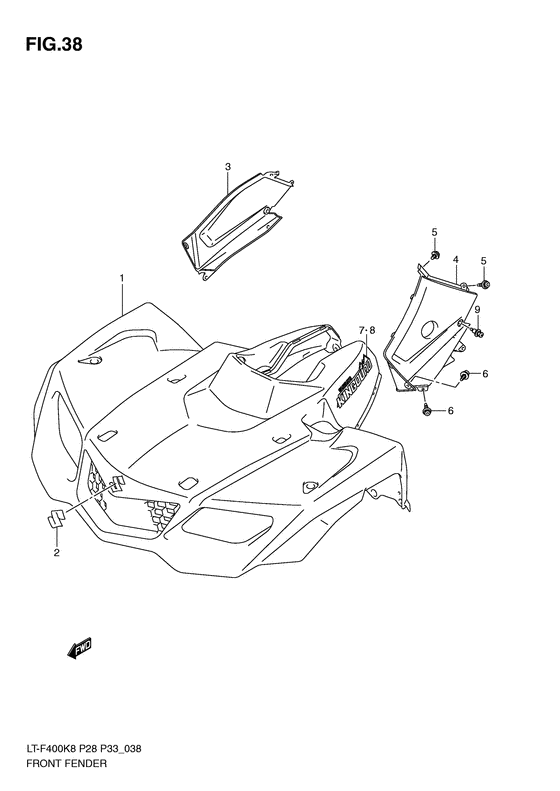

Front fender Diagram Suzuki LT-F400 KingQuad 400 2WD
- Model code
- LT-F400L0(P28/P33) L0
- Engine Capacity
- 376
- Year
- 2010
- Sales region
- Canada/California (P28/P33)
- Frame
- 5SAAK4BA*A7100001~
- Power
- 25 hp
- Model
- KingQuad 400 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-27H00-YT9
Fender, front (red)
Fender, front (red); |
53111-27H00-YT9 |
— | ||
| replacement | |||||
|
1
|
1
53111-27H01-YT9 FENDER, FRONT (RED)Fender, front (red); |
53111-27H01-YT9 |
US $410.43 |
||
|
1
|
1
53111-27H00-YLG
Fender, front (green)
Fender, front (green); |
53111-27H00-YLG |
— | ||
| replacement | |||||
|
1
|
1
53111-27H01-YLG FENDER, FRONT (GREEN)Fender, front (green); |
53111-27H01-YLG |
US $418.16 |
||
|
1
|
1
53111-27H00-YLZ
FENDER,FR
Fender, front (black); Model k8/k9 |
53111-27H00-YLZ |
— | ||
| replacement | |||||
|
1
|
1
53111-27H02-YLZ FENDER,FRONT (BFender, front (black); Model k8/k9 |
53111-27H02-YLZ |
US $388.60 |
||
|
1
|
1
53111-27H00-YPW
FENDER,FR
Fender, front (blue); Model l0 |
53111-27H00-YPW |
— | ||
| replacement | |||||
|
1
|
1
53111-27H01-YPW
FENDER,FR
Fender, front (blue); Model l0 |
53111-27H01-YPW |
— | ||
|
2
|
2
68151-03G40-000 EMBLEM,SEmblem, front; |
68151-03G40-000 |
from US $10.08 |
||
|
3
|
3
53112-27H01-291
Cover,side,r
Cover, side rh (black); |
53112-27H01-291 |
— | ||
| replacement | |||||
|
3
|
3
53112-27H02-291 COVER,SIDE,RCover, side rh (black); |
53112-27H02-291 |
US $65.47 |
||
|
4
|
4
53122-27H00-291
Cover, side lh (black)
Cover, side lh (black); Model k8/k9 |
53122-27H00-291 |
— | ||
| replacement | |||||
|
4
|
4
53122-27H02-291
COVER,SIDE,L
Cover, side lh (black); Model k8/k9 |
53122-27H02-291 |
— | ||
|
4
|
4
53122-27H10-291
Cover,side,l
Cover, side lh (black); Model l0 |
53122-27H10-291 |
— | ||
| replacement | |||||
|
4
|
4
53122-27H11-291 COVER,SIDE,LCover, side lh (black); Model l0 |
53122-27H11-291 |
US $50.59 |
||
|
5
|
5
09409-07333-000 CLIPClip, inner Clip, center; |
09409-07333-000 |
from US $1.22 |
||
|
6
|
6
09409-08335-000 CLIPClip, side; |
09409-08335-000 |
from US $1.87 |
||
|
7
|
7
68151-27H00-ETA
Emblem, rh
|
68151-27H00-ETA |
— | ||
| replacements | |||||
|
7
|
7
68151-27HA0-EFG
EMBLEM,FR FENDER,R
|
68151-27HA0-EFG |
— | ||
|
7
|
7
68151-27HA1-EFG Emblem,fr Fender,r |
68151-27HA1-EFG |
from US $26.86 |
||
|
8
|
8
68152-27H00-ETA
Emblem, lh
|
68152-27H00-ETA |
— | ||
| replacements | |||||
|
8
|
8
68152-27HA0-EFG
EMBLEM,FR FENDER,L
|
68152-27HA0-EFG |
— | ||
|
8
|
8
68152-27HA1-EFG Emblem,fr Fender,l |
68152-27HA1-EFG |
from US $26.86 |
||
|
9
|
9
09409-10306-000 CLIPClip, side; |
09409-10306-000 |
from US $1.68 |
||
