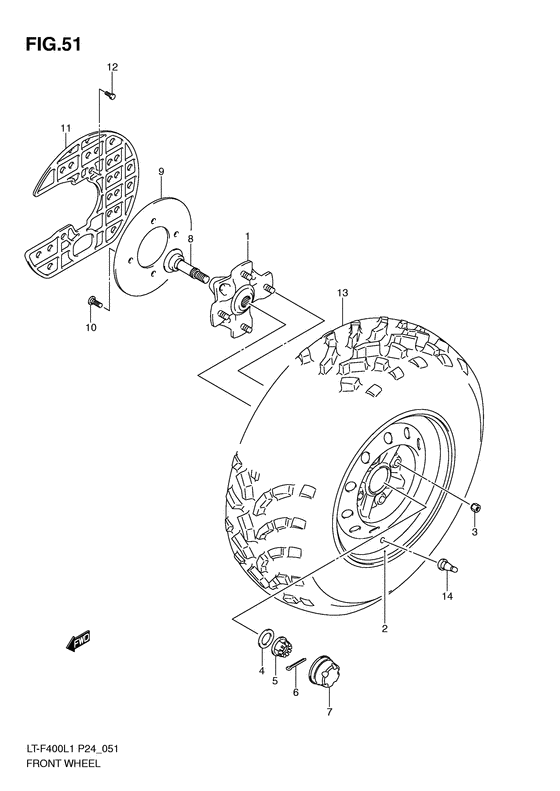

Front wheel Diagram Suzuki LT-F400 KingQuad 400 2WD
- Model code
- LT-F400L1(P24) L1
- Engine Capacity
- 376
- Year
- 2011
- Sales region
- Australia (P24)
- Frame
- 5SAAK4BA*B7100001~
- Power
- 25 hp
- Model
- KingQuad 400 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-27H00-000 HUB,FR WHEEL |
54110-27H00-000 |
from US $96.95 |
||
|
2
|
2
55310-38F30-291 RIM,FR WHEEL(12X6.0AT)Rim, front wheel (12x6.0at) (black); |
55310-38F30-291 |
from US $209.76 |
||
|
3
|
3
09140-10021-000 NUT |
09140-10021-000 |
from US $1.67 |
||
|
4
|
4
09164-18004-000 WASHERWasher, hub |
09164-18004-000 |
from US $3.20 |
||
|
5
|
5
09141-18010-000 NUTNut, hub; |
09141-18010-000 |
from US $13.63 |
||
|
6
|
6
04111-4035A-000 PINPin, cotter Pin, cotter; |
04111-4035A-000 |
from US $2.18 |
||
|
7
|
7
54725-09F01-000 CAP,WHEEL CTR |
54725-09F01-000 |
US $13.43 |
||
|
8
|
8
54711-38F00-000 AXLE,FR |
54711-38F00-000 |
from US $68.08 |
||
|
9
|
9
59211-38F20-000 DISC,FR BRAKE |
59211-38F20-000 |
US $63.09 |
||
|
10
|
10
09106-08160-000 BOLT(8X21)Bolt, brake disc Bolt (8x21); |
09106-08160-000 |
from US $1.67 |
||
|
11
|
11
59231-27H00-000 COVER,FR DISC |
59231-27H00-000 |
from US $34.04 |
||
|
12
|
12
09139-06158-000 SCREW(6X16)Bolt (6x16); |
09139-06158-000 |
from US $1.52 |
||
|
13
|
13
55110-38F30-000
Tire, front
Tire, frontt (at25x8-12); |
55110-38F30-000 |
— | ||
| replacement | |||||
|
13
|
13
55110-38F50-000
TIRE,FR
Tire, frontt (at25x8-12); |
55110-38F50-000 |
— | ||
|
14
|
14
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) Valve assy, wheel rim (tr412); |
43130-24A00-000 |
from US $4.41 |
||
