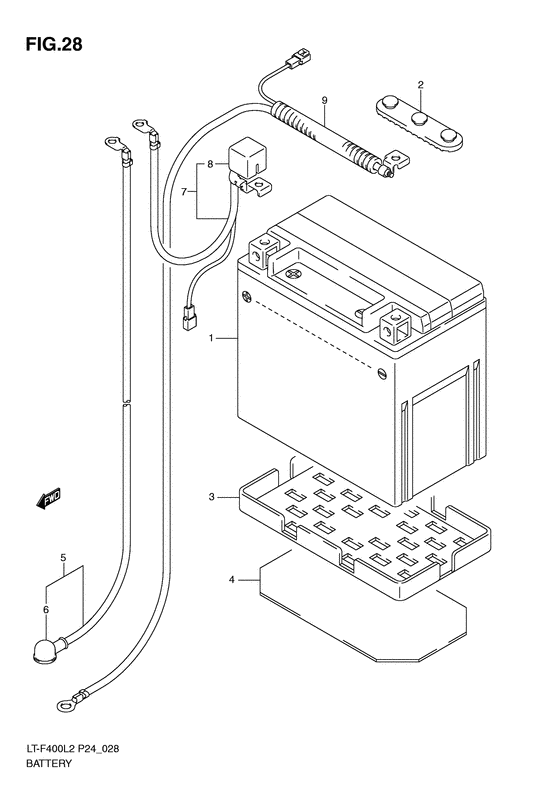

Battery Diagram Suzuki LT-F400 KingQuad 400 2WD
- Model code
- LT-F400L2(P24) L2
- Engine Capacity
- 376
- Year
- 2012
- Sales region
- Australia (P24)
- Frame
- 5SAAK4BA*C7100001~
- Power
- 25 hp
- Model
- KingQuad 400 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-26D10-000
BATTERY ASSY (12V) YTX14-BS
Battery assy; |
33610-26D10-000 |
— | ||
|
2
|
2
33652-07G00-000 PROTECTOR,BATTERYProtector, battery; |
33652-07G00-000 |
from US $2.69 |
||
|
3
|
3
33652-16G00-000 PROTECTOR,BATTERYProtector, battery; |
33652-16G00-000 |
from US $4.26 |
||
|
4
|
4
33652-27H00-000 PROTECTOR,BATTERYProtector, battery; |
33652-27H00-000 |
from US $4.93 |
||
|
5
|
5
33810-27H10-000
WIRE,STARTER MOTOR LEAD
Wire, starter motor lead; |
33810-27H10-000 |
— | ||
|
6
|
6
33624-27H00-000
CAP,STARTER MOTOR
|
33624-27H00-000 |
— | ||
|
7
|
7
33820-27H10-000
WIRE,BATTERY PLUS LEAD
Wire, battery plus lead; |
33820-27H10-000 |
— | ||
|
8
|
8
33624-27G00-000 CAP,BATTERY PLUS LEADCap, battery plug Cap, battery plus; |
33624-27G00-000 |
from US $4.64 |
||
|
9
|
9
33860-27H00-000
WIRE,BATTERY MINUS LEAD
Wire, battery minus lead; |
33860-27H00-000 |
— |
