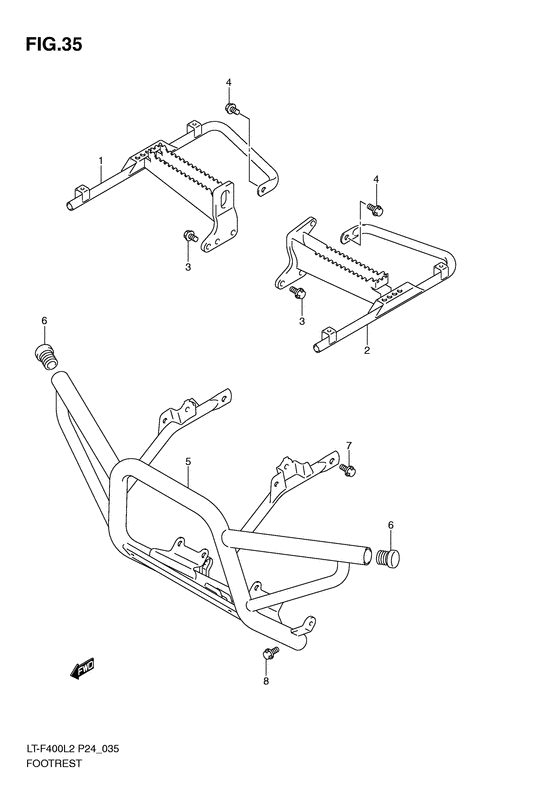

Footrest Diagram Suzuki LT-F400 KingQuad 400 2WD
- Model code
- LT-F400L2(P24) L2
- Engine Capacity
- 376
- Year
- 2012
- Sales region
- Australia (P24)
- Frame
- 5SAAK4BA*C7100001~
- Power
- 25 hp
- Model
- KingQuad 400 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43510-27HB0-000 FOOTREST,R |
43510-27HB0-000 |
from US $197.19 |
||
|
2
|
2
43520-27HA0-000 FOOTREST,L |
43520-27HA0-000 |
from US $230.11 |
||
|
3
|
3
09103-10275-000 BOLT(10X25)Bolt, front Bolt (10x25); |
09103-10275-000 |
from US $6.36 |
||
|
4
|
4
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
5
|
5
46710-27H00-YSN GRIP,FRGrip, front (black); |
46710-27H00-YSN |
from US $316.86 |
||
|
6
|
6
43978-38F00-000 CAP,FR GRIPCap, front grip; |
43978-38F00-000 |
from US $4.45 |
||
|
7
|
7
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
8
|
8
09103-08441-000
BOLT(8X16)
Bolt (8x16); |
09103-08441-000 |
— |
