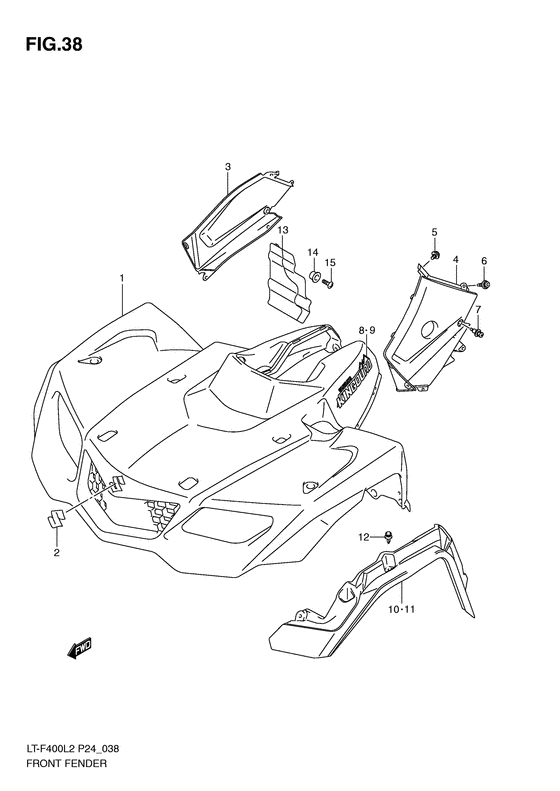

Front fender Diagram Suzuki LT-F400 KingQuad 400 2WD
- Model code
- LT-F400L2(P24) L2
- Engine Capacity
- 376
- Year
- 2012
- Sales region
- Australia (P24)
- Frame
- 5SAAK4BA*C7100001~
- Power
- 25 hp
- Model
- KingQuad 400 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-27H01-YT9 FENDER, FRONT (RED)Fender, front (red); |
53111-27H01-YT9 |
US $410.43 |
||
|
2
|
2
68151-03G40-000 EMBLEM,SEmblem, "s"; |
68151-03G40-000 |
from US $10.08 |
||
|
3
|
3
53112-27H02-291 COVER,SIDE,RCover, side rh (black); |
53112-27H02-291 |
US $65.47 |
||
|
4
|
4
53122-27H11-291 COVER,SIDE,LCover, side lh (black); |
53122-27H11-291 |
US $50.59 |
||
| replacement | |||||
|
4
|
4
53122-27H13-291 CVR,FRT FNDR SICover, side lh (black); |
53122-27H13-291 |
US $55.79 |
||
|
5
|
5
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
6
|
6
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
7
|
7
09409-10306-000 CLIP |
09409-10306-000 |
from US $1.68 |
||
|
8
|
8
68151-27HA0-EFG
EMBLEM,FR FENDER,R
|
68151-27HA0-EFG |
— | ||
| replacement | |||||
|
8
|
8
68151-27HA1-EFG Emblem,fr Fender,r |
68151-27HA1-EFG |
from US $26.86 |
||
|
9
|
9
68152-27HA0-EFG
EMBLEM,FR FENDER,L
|
68152-27HA0-EFG |
— | ||
| replacement | |||||
|
9
|
9
68152-27HA1-EFG Emblem,fr Fender,l |
68152-27HA1-EFG |
from US $26.86 |
||
|
10
|
10
53331-27H00-291
Mudguard, rh (black)
Mudguard, fender rh (black); |
53331-27H00-291 |
— | ||
| replacement | |||||
|
10
|
10
53331-27H02-291 MUDGUARD,FR FENDER,R(BLACK)Mudguard, fender rh (black); |
53331-27H02-291 |
US $64.40 |
||
|
11
|
11
53332-27H00-291
Mudguard, lh (black)
Mudguard, fender lh (black); |
53332-27H00-291 |
— | ||
| replacement | |||||
|
11
|
11
53332-27H02-291 MUDGUARD,FR FENDER,L(BLACK)Mudguard, fender lh (black); |
53332-27H02-291 |
US $64.40 |
||
|
12
|
12
09409-08335-000 CLIP |
09409-08335-000 |
from US $1.87 |
||
|
13
|
13
53116-27H00-000 MUDGUARD,SIDE,R |
53116-27H00-000 |
US $23.74 |
||
|
14
|
14
09169-06045-000 WASHER |
09169-06045-000 |
from US $0.96 |
||
| replacement | |||||
|
14
|
14
09169-06055-000 WASHER |
09169-06055-000 |
from US $0.91 |
||
|
15
|
15
02142-0616B-000 SCREWScrew, hinge Screw; |
02142-0616B-000 |
from US $2.82 |
||
