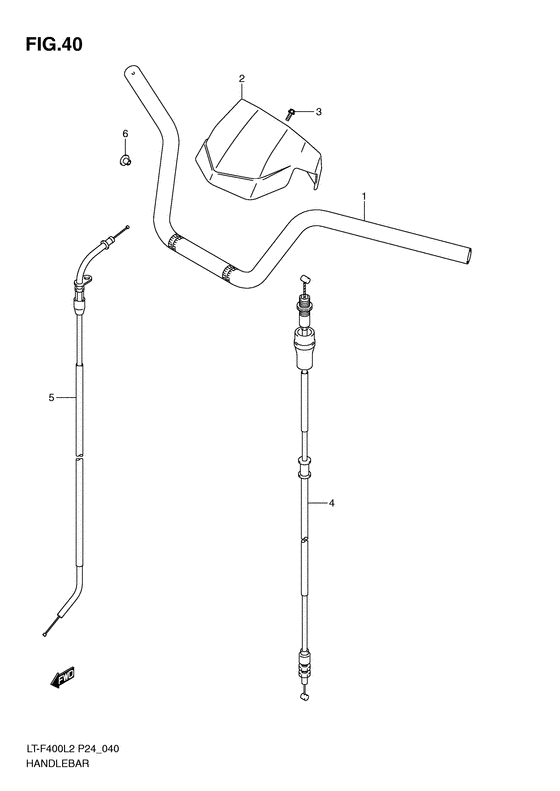

Handlebar Diagram Suzuki LT-F400 KingQuad 400 2WD
- Model code
- LT-F400L2(P24) L2
- Engine Capacity
- 376
- Year
- 2012
- Sales region
- Australia (P24)
- Frame
- 5SAAK4BA*C7100001~
- Power
- 25 hp
- Model
- KingQuad 400 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56111-38F20-000 HANDLEBARHandlebar; |
56111-38F20-000 |
US $58.61 |
||
| replacement | |||||
|
1
|
1
56111-38F21-000 Handle barHandlebar; |
56111-38F21-000 |
US $62.17 |
||
|
2
|
2
56171-27H20-000 COVER,STEERING HEAD |
56171-27H20-000 |
from US $31.25 |
||
|
3
|
3
09111-06054-000 BOLT(6X14.6)Bolt (6x14.6); |
09111-06054-000 |
from US $5.03 |
||
|
4
|
4
58300-27H10-000
Cable assy,throttle
|
58300-27H10-000 |
— | ||
| replacement | |||||
|
4
|
4
58300-27H11-000 Cable assy,throttle |
58300-27H11-000 |
US $53.94 |
||
|
5
|
5
58410-27H10-000 CABLE,STARTER |
58410-27H10-000 |
from US $24.66 |
||
|
6
|
6
09250-05007-000 PLUG(OD:12)Plug (od:12); |
09250-05007-000 |
from US $3.25 |
||
