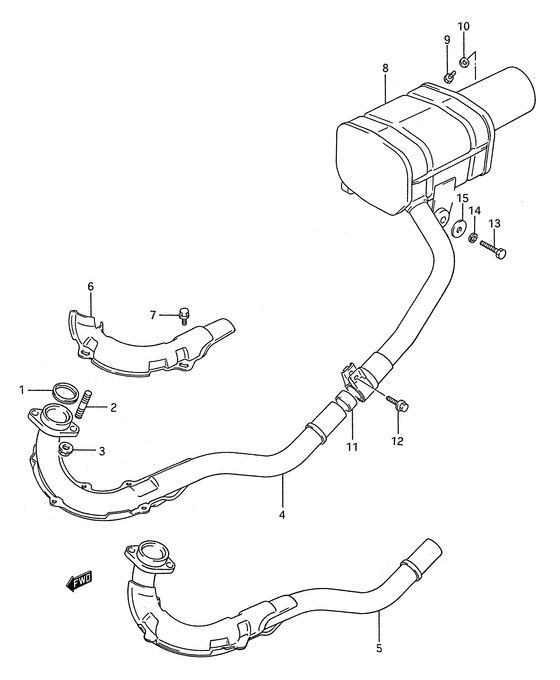

Muffler (Model j/k) Diagram Suzuki LT-F4WD QuadRunner
- Model code
- LT-F4WDR
- Engine Capacity
- 246
- Year
- 1994
- Sales region
- Canada (E28)
- Frame
- JSAAJ45A*R2100001~
- Power
- 21,5 hp
- Model
- QuadRunner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14181-12010-000
Gasket
|
14181-12010-000 |
— | ||
| replacement | |||||
|
1
|
1
14181-42A00-000 GASKET,EXHAUST PIPEGasket, exhaust pipe |
14181-42A00-000 |
from US $5.76 |
||
|
2
|
2
01421-08205-000
Stud 8x20
Stud bolt; |
01421-08205-000 |
— | ||
| replacement | |||||
|
2
|
2
01421-0820A-000 BOLT,STUDStud bolt; |
01421-0820A-000 |
from US $1.82 |
||
|
3
|
3
08361-15085-000
Nut
|
08361-15085-000 |
— | ||
| replacement | |||||
|
3
|
3
08361-1508A-000 NUT |
08361-1508A-000 |
from US $1.87 |
||
|
4
|
4
14120-19B10-000
Pipe, exhaust
~f.no.102066, |
14120-19B10-000 |
— | ||
| replacement | |||||
|
4
|
4
14100-19B20-000
Pipe assy,exhau
~f.no.102066, |
14100-19B20-000 |
— | ||
|
5
|
5
14100-19B20-000
Pipe assy,exhau
F.no.102067~ |
14100-19B20-000 |
— | ||
|
6
|
6
14190-19B20-000
Cover,exhaust p
Model j ~f.no.102066 |
14190-19B20-000 |
— | ||
|
7
|
7
09103-06123-000
Bolt 6x12
Bolt (6x12); Model j ~f.no.102066 |
09103-06123-000 |
— | ||
| replacement | |||||
|
7
|
7
09103-061V0-XC0
BOLT(6X12)
Bolt (6x12); Model j ~f.no.102066 |
09103-061V0-XC0 |
— | ||
|
8
|
8
14310-19B11-000
Muffler
w/01517-08405 |
14310-19B11-000 |
— | ||
| replacements | |||||
|
8
|
8
14310-19B14-000 BODY,MUFFLERw/01517-08405 |
14310-19B14-000 |
from US $425.92 |
||
|
8
|
8
01550-0840B-000 Boltw/01517-08405 |
01550-0840B-000 |
US $1.12 |
||
|
8
|
8
01517-08405-000
Bolt
w/01517-08405 |
01517-08405-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-0840B-000 Boltw/01517-08405 |
01550-0840B-000 |
US $1.12 |
||
|
9
|
9
09247-12103-000 PLUG(12X9)Plug, drain Plug, drain; |
09247-12103-000 |
from US $1.98 |
||
|
10
|
10
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
|
11
|
11
14773-14201-000
Gasket
|
14773-14201-000 |
— | ||
| replacement | |||||
|
11
|
11
14773-14202-000 GASKET,2ND MUFFLERGasket, muffler |
14773-14202-000 |
from US $10.56 |
||
|
12
|
12
01517-08205-000
Bolt
For 14310-19b11 |
01517-08205-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0820B-000 BoltFor 14310-19b11 |
01550-0820B-000 |
from US $0.91 |
||
|
12
|
12
01550-0820A-000 BOLTBolt, funnel bracket For 14310-19b11 |
01550-0820A-000 |
from US $0.96 |
||
|
12
|
12
01517-08405-000
Bolt
For 14310-19b13 |
01517-08405-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-0840B-000 BoltFor 14310-19b13 |
01550-0840B-000 |
US $1.12 |
||
|
13
|
13
01107-08258-000
Bolt
|
01107-08258-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-08257-000 Bolt |
01500-08257-000 |
from US $0.96 |
||
|
14
|
14
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
15
|
15
09160-08004-000 Washer |
09160-08004-000 |
US $2.85 |
||
| replacement | |||||
|
15
|
15
09160-08134-000 WASHER(8.5X26X1.6)Washer, muffler support front |
09160-08134-000 |
from US $0.91 |
||
