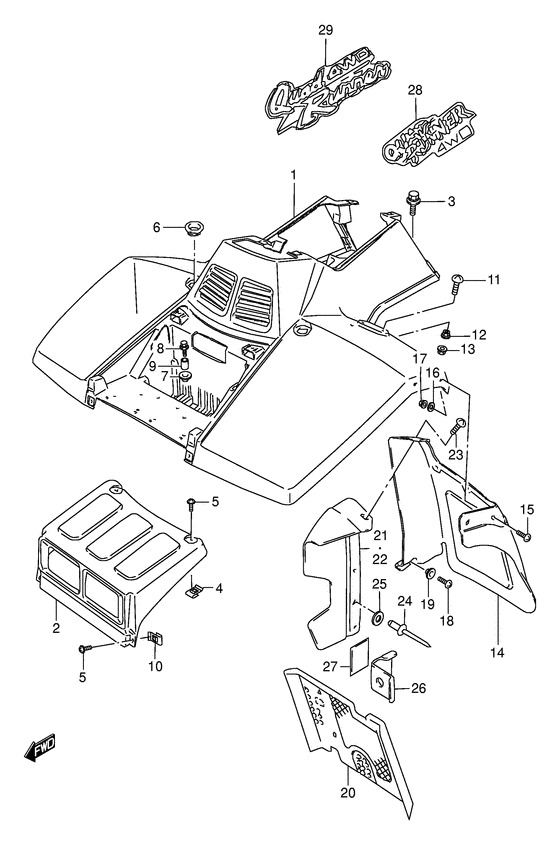

Front fender Diagram Suzuki LT-F4WD QuadRunner
- Model code
- LT-F4WDV
- Engine Capacity
- 246
- Year
- 1997
- Sales region
- Sweden (E17)
- Frame
- JSAAJ45A*V2100001~
- Power
- 21,5 hp
- Model
- QuadRunner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-19B00-1AT
FENDER,FR
Fender, front (green); Model t/v |
53111-19B00-1AT |
— | ||
|
1
|
1
53111-19B00-Y5G
Fender,front(be
Fender, front (beige); Model w |
53111-19B00-Y5G |
— | ||
|
2
|
2
53118-19B00-000 FENDER,CTR |
53118-19B00-000 |
from US $75.43 |
||
|
3
|
3
09118-06019-000 BOLT(6X14)Bolt, fender (6x14) Bolt, fender rear (l:14); |
09118-06019-000 |
from US $4.64 |
||
|
4
|
4
53141-19A00-000 NUT,FR FENDER |
53141-19A00-000 |
from US $5.49 |
||
|
5
|
5
09136-06062-000
Screw
Screw, fender center; |
09136-06062-000 |
— | ||
| replacement | |||||
|
5
|
5
09136-06017-000 SCREW(6X16)Screw, fender center; |
09136-06017-000 |
from US $0.80 |
||
|
6
|
6
09308-25003-000
GROMMET
Grommet, front fender; |
09308-25003-000 |
— | ||
| replacement | |||||
|
6
|
6
09308-25005-000 GrommetGrommet, front fender; |
09308-25005-000 |
from US $6.21 |
||
|
7
|
7
09320-11008-000 CUSHIONCushion, front fender front; |
09320-11008-000 |
from US $1.52 |
||
|
8
|
8
09116-06025-000 BOLT(6X25)Bolt, front fender front Bolt, front fender front; |
09116-06025-000 |
from US $3.35 |
||
|
9
|
9
09180-06120-000 SPACER(6.5X11.5X12) |
09180-06120-000 |
from US $1.07 |
||
|
10
|
10
53141-19A00-000 NUT,FR FENDER |
53141-19A00-000 |
from US $5.49 |
||
|
11
|
11
02142-06163-000
Screw
Screw, front fender side; |
02142-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
02142-0616A-000 SCREWScrew, front fender side; |
02142-0616A-000 |
from US $0.76 |
||
|
12
|
12
09169-06016-000 WASHERWasher Washer; |
09169-06016-000 |
from US $1.52 |
||
|
13
|
13
09159-06078-000 NUTNut |
09159-06078-000 |
from US $4.13 |
||
|
14
|
14
53311-19B05-000
MUDFLAP,FR FENDER,R
|
53311-19B05-000 |
— | ||
|
14
|
14
53312-19B05-000
MUDFLAP,FR FENDER,L
|
53312-19B05-000 |
— | ||
|
15
|
15
09139-05038-000 SCREW(5X15.3)Screw; |
09139-05038-000 |
from US $1.22 |
||
|
16
|
16
09160-05039-000 WasherModel t/v |
09160-05039-000 |
US $1.75 |
||
| replacement | |||||
|
16
|
16
09160-05046-000 WASHER(5.5X20X1.4)Model t/v |
09160-05046-000 |
from US $3.20 |
||
|
16
|
16
09160-05046-000 WASHER(5.5X20X1.4)Model w |
09160-05046-000 |
from US $3.20 |
||
|
17
|
17
09159-05026-000 Nut |
09159-05026-000 |
US $1.82 |
||
| replacement | |||||
|
17
|
17
09159-05043-000 NUT |
09159-05043-000 |
from US $12.10 |
||
|
18
|
18
02142-06123-000
Screw
Screw, inner; |
02142-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
02142-0612B-000 SCREWScrew, inner; |
02142-0612B-000 |
from US $0.76 |
||
|
18
|
18
02142-0612A-000 SCREWScrew, inner; |
02142-0612A-000 |
from US $0.80 |
||
|
19
|
19
09169-06010-000 WASHERWasher, inner Washer, inner; |
09169-06010-000 |
from US $1.98 |
||
|
20
|
20
53310-20B12-000 GUARD,MUFFLER FRGuard, muffler front |
53310-20B12-000 |
US $105.52 |
||
|
21
|
21
53411-19B01-000
Mud flap,front
|
53411-19B01-000 |
— | ||
|
22
|
22
53421-19B01-000
Mud flap,front
|
53421-19B01-000 |
— | ||
|
23
|
23
09139-05037-000 SCREW(5X18) |
09139-05037-000 |
from US $1.28 |
||
|
24
|
24
09229-03023-000
Rivet
|
09229-03023-000 |
— | ||
| replacement | |||||
|
24
|
24
09229-03023-XC0
Rivet
|
09229-03023-XC0 |
— | ||
|
25
|
25
09160-03008-000 WASHER(3.3X18X1.2) |
09160-03008-000 |
US $13.20 |
||
|
26
|
26
53421-20B00-000
Plate,inner mud
|
53421-20B00-000 |
— | ||
|
27
|
27
53145-19C00-000
Cushion, inner mud flap
|
53145-19C00-000 |
— | ||
| replacement | |||||
|
27
|
27
46312-31D11-000 CUSHION,FR |
46312-31D11-000 |
from US $2.39 |
||
|
28
|
28
68151-19B90-Z41
Emblem,fr fende
Model t |
68151-19B90-Z41 |
— | ||
|
28
|
28
68151-19BD0-G2G
Emblem,front fe
Model v |
68151-19BD0-G2G |
— | ||
|
29
|
29
68151-19BE0-Y5N
Emblem,front fe
Model w |
68151-19BE0-Y5N |
— | ||
