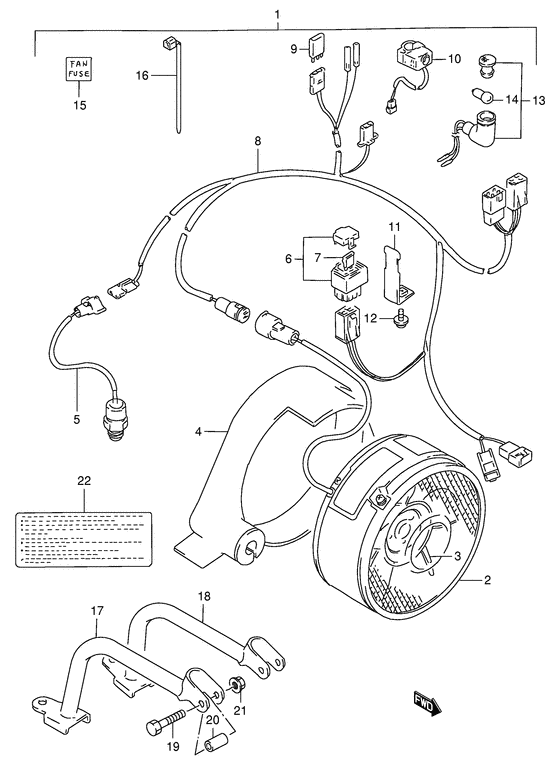

Cooling fan (Optional) Diagram Suzuki LT-F4WD QuadRunner
- Model code
- LT-F4WDV
- Engine Capacity
- 246
- Year
- 1997
- Sales region
- Sweden (E17)
- Frame
- JSAAJ45A*V2100001~
- Power
- 21,5 hp
- Model
- QuadRunner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17000-19851-000
Coolng fanset l
|
17000-19851-000 |
— | ||
| replacement | |||||
|
1
|
1
17000-19852-000 FAN SET,COOLING |
17000-19852-000 |
US $577.28 |
||
|
2
|
2
17110-19B11-000
FAN ASSY,COOLING
|
17110-19B11-000 |
— | ||
| replacement | |||||
|
2
|
2
17110-19B12-000 Fan Assy,cooling |
17110-19B12-000 |
US $524.48 |
||
|
3
|
3
17820-19B10-000 FAN ASSY |
17820-19B10-000 |
US $115.65 |
||
|
4
|
4
17121-19B01-000 BAND,COOLING FANBand, cooling fan |
17121-19B01-000 |
US $207.68 |
||
|
5
|
5
17680-19B70-000 SWITCH,COOLING FANSwitch, cooling fan |
17680-19B70-000 |
from US $114.40 |
||
|
6
|
6
36740-24510-000 BOX ASSY,FUSEBox assy, fuse; |
36740-24510-000 |
US $18.39 |
||
|
7
|
7
09481-10101-000 FUSE(10A)Fuse (10a); |
09481-10101-000 |
from US $1.28 |
||
|
8
|
8
36610-19B70-000
HARNESS,WIRING
|
36610-19B70-000 |
— | ||
|
9
|
9
36611-38A00-000
Diode
|
36611-38A00-000 |
— | ||
| replacement | |||||
|
9
|
9
36611-38A10-000 DIODE |
36611-38A10-000 |
from US $7.14 |
||
|
10
|
10
37910-19B10-000 SWITCH ASSY,COOLING FANSwitch assy, manual Switch assy, manual; |
37910-19B10-000 |
US $43.12 |
||
|
11
|
11
38620-04570-000 BRACKET,TURN SIGNAL RELAYBracket, cooling fan fuse Bracket, cooling fan fuse; |
38620-04570-000 |
from US $3.24 |
||
|
12
|
12
09118-06103-000
09118-06103
Screw (6x12); |
09118-06103-000 |
— | ||
| replacement | |||||
|
12
|
12
09118-06055-000 BOLT(6X12)Screw (6x12); |
09118-06055-000 |
from US $3.83 |
||
|
13
|
13
36360-19B10-000
Lamp assy,fan w
|
36360-19B10-000 |
— | ||
|
14
|
14
09471-12001-000 SPEEDOMETER BULB(12V3.4W,STANLEY,A72A)Bulb (12v,3.4w) Bulb (12v,3.4w); |
09471-12001-000 |
from US $1.92 |
||
|
15
|
15
36367-19B00-000 LABEL,FAN WARNINGLabel, fan warning |
36367-19B00-000 |
US $1.95 |
||
|
16
|
16
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
17
|
17
41970-19B20-000 TUBE,COOLING FAN,RTube, cooling fan rh |
41970-19B20-000 |
US $37.54 |
||
|
18
|
18
41980-19B21-000 TUBE,COOLING FAN,LTube, cooling fan lh |
41980-19B21-000 |
US $37.54 |
||
|
19
|
19
01550-08353-000
Bolt, rear
|
01550-08353-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
19
|
19
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
20
|
20
09180-08067-000 SPACER(8.5X12X19)Spacer (l:19) Spacer (l:19); |
09180-08067-000 |
from US $3.67 |
||
|
21
|
21
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
22
|
22
68341-19B10-000
LABEL,COOLING FAN
|
68341-19B10-000 |
— | ||
