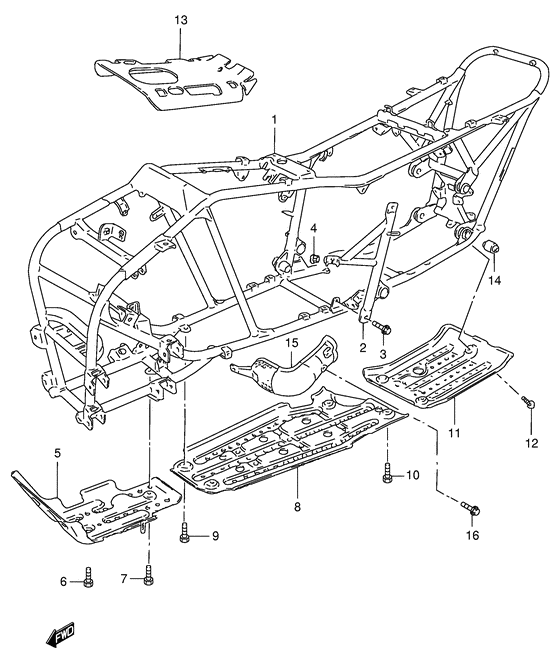

Frame Diagram Suzuki LT-F4WD QuadRunner
- Model code
- LT-F4WDV
- Engine Capacity
- 246
- Year
- 1997
- Sales region
- Sweden (E17)
- Frame
- JSAAJ45A*V2100001~
- Power
- 21,5 hp
- Model
- QuadRunner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41101-19813-019
Frame set (black)
|
41101-19813-019 |
— | ||
| replacement | |||||
|
1
|
1
41101-19815-019
FRAME SET(BLACK)
|
41101-19815-019 |
— | ||
|
2
|
2
41910-39D00-019 TUBE,ENGINE MOUNT FRBar, mounting front (black) Bar, mounting front (black); |
41910-39D00-019 |
US $97.15 |
||
|
3
|
3
09103-10165-000 BOLT(10X20) |
09103-10165-000 |
from US $6.29 |
||
|
4
|
4
43978-24500-000 CAP,FR GRIPCap |
43978-24500-000 |
from US $2.72 |
||
|
5
|
5
42510-19B11-000
Protector,front
|
42510-19B11-000 |
— | ||
| replacement | |||||
|
5
|
5
42510-19B12-000 PROTECTOR,FR |
42510-19B12-000 |
from US $72.86 |
||
|
6
|
6
01580-06123-000
Bolt
Bolt, front; |
01580-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01580-0612B-000 BoltBolt, front; |
01580-0612B-000 |
US $0.96 |
||
|
6
|
6
01580-0612A-000 BoltBolt, front; |
01580-0612A-000 |
from US $0.91 |
||
|
7
|
7
01580-06163-000
Bolt
Bolt, rear; |
01580-06163-000 |
— | ||
| replacement | |||||
|
7
|
7
01580-0616A-000 BOLTBolt, rear; |
01580-0616A-000 |
from US $0.96 |
||
|
8
|
8
42560-19B02-000
Protector,middl
|
42560-19B02-000 |
— | ||
| replacement | |||||
|
8
|
8
42560-19B03-000
Protector, middle
|
42560-19B03-000 |
— | ||
|
9
|
9
01580-06253-000
Bolt, ignition
Bolt, front; |
01580-06253-000 |
— | ||
| replacement | |||||
|
9
|
9
01580-0625A-000 BoltBolt, front; |
01580-0625A-000 |
US $0.96 |
||
|
10
|
10
01580-06163-000
Bolt
Bolt, rear; |
01580-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
01580-0616A-000 BOLTBolt, rear; |
01580-0616A-000 |
from US $0.96 |
||
|
11
|
11
61390-19B01-000
Protector comp
|
61390-19B01-000 |
— | ||
| replacement | |||||
|
11
|
11
61390-19B02-000 PROTECTOR,ENGINE |
61390-19B02-000 |
from US $79.49 |
||
|
12
|
12
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
13
|
13
47157-19B10-000
Mud guard
|
47157-19B10-000 |
— | ||
| replacement | |||||
|
13
|
13
47157-19B11-000
MUDGUARD,CLEANER INLET
|
47157-19B11-000 |
— | ||
|
14
|
14
09319-10064-000 BUSH |
09319-10064-000 |
from US $24.34 |
||
|
15
|
15
42570-39D00-000 COVER,MUD |
42570-39D00-000 |
US $162.66 |
||
|
16
|
16
01580-06123-000
Bolt
|
01580-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
01580-0612B-000 Bolt |
01580-0612B-000 |
US $0.96 |
||
|
16
|
16
01580-0612A-000 Bolt |
01580-0612A-000 |
from US $0.91 |
||
