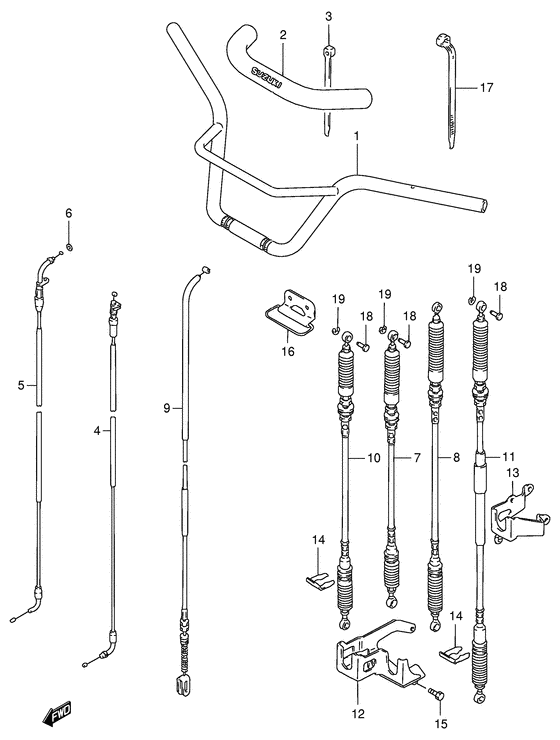

Handlebar - cable Diagram Suzuki LT-F4WD QuadRunner
- Model code
- LT-F4WDW
- Engine Capacity
- 246
- Year
- 1998
- Sales region
- Sweden (E17)
- Frame
- JSAAJ45A*W2100001~
- Power
- 21,5 hp
- Model
- QuadRunner
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56110-19B31-291
Handlebar
Handlebar (black); |
56110-19B31-291 |
— | ||
| replacement | |||||
|
1
|
1
56110-19B32-291
HANDLEBAR
Handlebar (black); |
56110-19B32-291 |
— | ||
|
2
|
2
56172-19B01-291
PAD,CROSS BAR
Pad, cross (od:30); |
56172-19B01-291 |
— | ||
|
3
|
3
09407-14407-000 CLAMP(L:145)Band Band (l:145); |
09407-14407-000 |
from US $2.08 |
||
|
4
|
4
58300-19B20-000 Cable assy,throttleCable assy, throttle |
58300-19B20-000 |
from US $27.97 |
||
|
5
|
5
58410-19B10-000 CABLE ASSY,STARTER |
58410-19B10-000 |
from US $27.97 |
||
|
6
|
6
09161-05015-000 WasherModel t/v |
09161-05015-000 |
US $2.99 |
||
| replacement | |||||
|
6
|
6
09320-06503-000 CUSHIONWasher Model t/v |
09320-06503-000 |
from US $3.59 |
||
|
6
|
6
09320-06503-000 CUSHIONWasher Model w |
09320-06503-000 |
from US $3.59 |
||
|
7
|
7
58680-19B21-000 CABLE,T/M GEAR SHAFTCable, t/m gear shift |
58680-19B21-000 |
from US $115.92 |
||
|
8
|
8
58690-19B01-000 CABLE,TRANSFER SHIFTCable, transfer shift |
58690-19B01-000 |
from US $83.17 |
||
|
9
|
9
58810-19B02-000 CABLE,PARKING BRAKECable, parking brake |
58810-19B02-000 |
US $61.01 |
||
|
10
|
10
58840-19B10-000
Cable,reverse
|
58840-19B10-000 |
— | ||
| replacement | |||||
|
10
|
10
58840-39DA0-000
CABLE,REVERSE
|
58840-39DA0-000 |
— | ||
|
11
|
11
58880-19B11-000 CABLE,SUB T/MSHIFTCable, sub t/m shift |
58880-19B11-000 |
from US $88.69 |
||
|
12
|
12
58870-19B00-000 BRACKET,CONTROL CABLE NO.1Bracket, control cable |
58870-19B00-000 |
from US $25.21 |
||
|
13
|
13
58873-19B11-000 BRACKET,CONTROL CABLEBracket, control cable |
58873-19B11-000 |
from US $16.82 |
||
|
14
|
14
09383-19003-000 CLIP |
09383-19003-000 |
from US $6.38 |
||
|
15
|
15
01547-06163-000
Bolt (green)
|
01547-06163-000 |
— | ||
| replacement | |||||
|
15
|
15
01547-0616B-000 BOLT |
01547-0616B-000 |
from US $0.76 |
||
|
16
|
16
58620-19B10-000 GUIDE,CABLEGuide, cable |
58620-19B10-000 |
US $12.44 |
||
|
17
|
17
09407-11401-000 CLAMP(L:95)Clamp, stator lead Clamp (l:95); |
09407-11401-000 |
from US $1.76 |
||
|
17
|
17
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
17
|
17
09407-18403-000
Clamp, switch wire
|
09407-18403-000 |
— | ||
| replacement | |||||
|
17
|
17
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
18
|
18
09208-08008-000 PIN |
09208-08008-000 |
from US $3.47 |
||
|
19
|
19
08332-11063-000
E ring
E ring; |
08332-11063-000 |
— | ||
| replacements | |||||
|
19
|
19
08332-1106B-000 E RINGCirclip E ring; |
08332-1106B-000 |
from US $0.90 |
||
|
19
|
19
08332-1106A-000 E RINGE ring, pinion E ring; |
08332-1106A-000 |
from US $0.77 |
||
