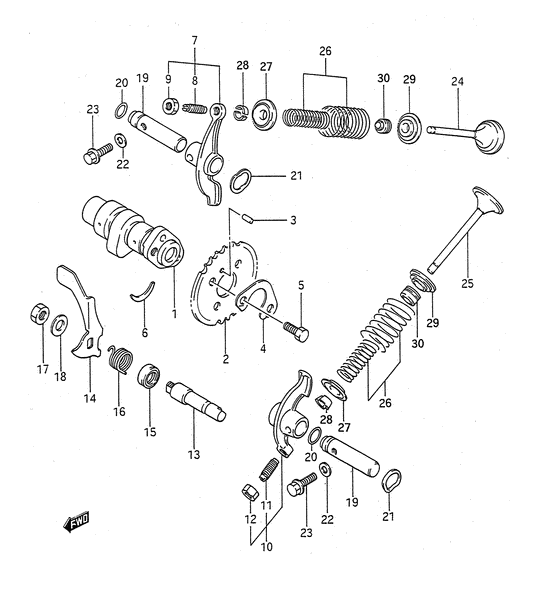

Cam shaft/valve Diagram Suzuki LT-F4WD KingQuad
- Model code
- LT-F4WDXR
- Engine Capacity
- 280
- Year
- 1994
- Sales region
- Canada (E28)
- Frame
- JSAAK42A*R2100001~
- Model
- KingQuad
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12711-19B70-000 SHAFT,CAM |
12711-19B70-000 |
from US $107.09 |
||
|
2
|
2
12741-04B00-000
Sprocket, cam drive (nt:34)
|
12741-04B00-000 |
— | ||
| replacement | |||||
|
2
|
2
12741-04B01-000 SPROCKET,CAMSHAFTSprocket, cam drive (nt:34) |
12741-04B01-000 |
from US $20.98 |
||
|
3
|
3
09261-05005-000 PIN(5X8)Knock pin Pin; |
09261-05005-000 |
from US $0.76 |
||
|
4
|
4
12747-05201-000
Washer,sprocket
|
12747-05201-000 |
— | ||
| replacement | |||||
|
4
|
4
12747-05202-000 WASHER,SPROCKET |
12747-05202-000 |
from US $1.87 |
||
|
5
|
5
09111-06032-000 BOLT(6X10.5) |
09111-06032-000 |
from US $1.87 |
||
|
6
|
6
09390-22002-000 C RINGC ring |
09390-22002-000 |
from US $1.06 |
||
|
7
|
7
12840-25C00-000
Arm, Valve Rocker
~e.no.118847 |
12840-25C00-000 |
— | ||
| replacement | |||||
|
7
|
7
12850-25C00-000 ARM ASSY,VALVE ROCKERArm, valve rocker, in ~e.no.118847 |
12850-25C00-000 |
from US $28.88 |
||
|
7
|
7
12850-24400-000
Arm, valve rocker, in
E.no.118848~ |
12850-24400-000 |
— | ||
| replacement | |||||
|
7
|
7
12850-25C00-000 ARM ASSY,VALVE ROCKERArm, valve rocker, in E.no.118848~ |
12850-25C00-000 |
from US $28.88 |
||
|
8
|
8
12842-32411-000 SCREW,TAPPET ADJUSTING |
12842-32411-000 |
from US $4.80 |
||
|
9
|
9
12843-32400-000 NUT,ADJUSTING SCREW |
12843-32400-000 |
from US $1.60 |
||
|
10
|
10
12850-25C00-000 ARM ASSY,VALVE ROCKERArm, valve rocker, in Arm, valve rocker, ex; ~e.no.118847 |
12850-25C00-000 |
from US $28.88 |
||
|
10
|
10
12850-24400-000
Arm, valve rocker, in
E.no.118848~ |
12850-24400-000 |
— | ||
| replacement | |||||
|
10
|
10
12850-25C00-000 ARM ASSY,VALVE ROCKERArm, valve rocker, in E.no.118848~ |
12850-25C00-000 |
from US $28.88 |
||
|
11
|
11
12842-32411-000 SCREW,TAPPET ADJUSTING |
12842-32411-000 |
from US $4.80 |
||
|
12
|
12
12843-32400-000 NUT,ADJUSTING SCREW |
12843-32400-000 |
from US $1.60 |
||
|
13
|
13
12941-19B00-000 SHAFT,DECOMP |
12941-19B00-000 |
from US $15.12 |
||
|
14
|
14
12942-19B00-000
Lever, decomp shaft
Model m/n/p/r |
12942-19B00-000 |
— | ||
| replacement | |||||
|
14
|
14
12942-19B01-000 LEVER,DECOMP SHAFTLever, decomp shaft Model m/n/p/r |
12942-19B01-000 |
from US $3.02 |
||
|
14
|
14
12942-19B01-000 LEVER,DECOMP SHAFTLever, decomp shaft Model s |
12942-19B01-000 |
from US $3.02 |
||
|
15
|
15
09282-10014-000 SEAL,OIL(10X17X6)Oil seal (10x17x6) |
09282-10014-000 |
from US $4.56 |
||
|
16
|
16
09448-17014-000 SPRING |
09448-17014-000 |
from US $6.14 |
||
|
17
|
17
08310-22085-000
Nut
Model m/n/p |
08310-22085-000 |
— | ||
| replacement | |||||
|
17
|
17
09140-08021-000 NUTModel m/n/p |
09140-08021-000 |
from US $3.59 |
||
|
17
|
17
08310-00083-000
Nut
Model r |
08310-00083-000 |
— | ||
| replacements | |||||
|
17
|
17
08310-0008B-000 NUTModel r |
08310-0008B-000 |
from US $0.80 |
||
|
17
|
17
08310-0008A-000 NUTNut, bead stopper Model r |
08310-0008A-000 |
from US $0.76 |
||
|
17
|
17
08316-10083-000
Nut
Model s |
08316-10083-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1008B-000 NUTModel s |
08316-1008B-000 |
from US $0.76 |
||
|
18
|
18
08322-11084-000
Washer
Model m/n/p |
08322-11084-000 |
— | ||
| replacements | |||||
|
18
|
18
08322-0108B-000 WASHERModel m/n/p |
08322-0108B-000 |
from US $0.80 |
||
|
18
|
18
08322-0108A-000 WASHERModel m/n/p |
08322-0108A-000 |
from US $0.80 |
||
|
18
|
18
08322-01083-000
WASHER
Washer; Model r/s |
08322-01083-000 |
— | ||
| replacements | |||||
|
18
|
18
08322-0108B-000 WASHERWasher; Model r/s |
08322-0108B-000 |
from US $0.80 |
||
|
18
|
18
08322-0108A-000 WASHERWasher; Model r/s |
08322-0108A-000 |
from US $0.80 |
||
|
19
|
19
12861-05201-000 SHAFT,VALVE ROCKETShaft, rocker arm Shaft, rocker arm; |
12861-05201-000 |
from US $7.14 |
||
|
20
|
20
09280-09005-000 O RING(D:1.9,ID:8.6) |
09280-09005-000 |
from US $1.67 |
||
|
21
|
21
09164-12021-000 WASHER |
09164-12021-000 |
from US $1.52 |
||
|
22
|
22
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) |
09168-06023-000 |
from US $1.51 |
||
|
23
|
23
01517-06254-000
Bolt
Model m/n/p |
01517-06254-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0625B-000 BOLTBolt, head cover Model m/n/p |
01550-0625B-000 |
from US $0.91 |
||
|
23
|
23
01550-0625A-000 BOLTBolt Model m/n/p |
01550-0625A-000 |
from US $0.96 |
||
|
23
|
23
01550-06253-000
Bolt (6x25)
Model r/s |
01550-06253-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0625B-000 BOLTBolt, head cover Model r/s |
01550-0625B-000 |
from US $0.91 |
||
|
23
|
23
01550-0625A-000 BOLTBolt Model r/s |
01550-0625A-000 |
from US $0.96 |
||
|
24
|
24
12911-19B00-000 Valve,intakeValve, intake |
12911-19B00-000 |
from US $31.25 |
||
|
25
|
25
12912-18A00-000 Valve,exhaust |
12912-18A00-000 |
from US $54.68 |
||
|
26
|
26
12920-05210-000 SPRING SET,VALVESpring set, valve |
12920-05210-000 |
from US $7.30 |
||
|
27
|
27
12931-49200-000
Retainer valve
Retainer, spring; |
12931-49200-000 |
— | ||
| replacement | |||||
|
27
|
27
12931-49201-000 RETAINER,VALVE SPRINGRetainer, spring; |
12931-49201-000 |
from US $4.96 |
||
|
28
|
28
12932-24400-000 COTTER,VALVECotter, valve; |
12932-24400-000 |
from US $1.17 |
||
|
29
|
29
12933-49200-000 Seat, springModel m/n/p |
12933-49200-000 |
US $5.64 |
||
| replacement | |||||
|
29
|
29
12933-49201-000 SEAT,VALVE SPRINGSeat,valve spring Model m/n/p |
12933-49201-000 |
from US $2.56 |
||
|
29
|
29
12933-49201-000 SEAT,VALVE SPRINGSeat,valve spring Model r/s |
12933-49201-000 |
from US $2.56 |
||
|
30
|
30
09289-05003-000
Oil seal
Model m/n/p |
09289-05003-000 |
— | ||
| replacement | |||||
|
30
|
30
09289-05015-000 SEAL,OIL(5.5X11X8.2)Model m/n/p |
09289-05015-000 |
from US $3.24 |
||
|
30
|
30
09289-05015-000 SEAL,OIL(5.5X11X8.2)Model r/s |
09289-05015-000 |
from US $3.24 |
||
