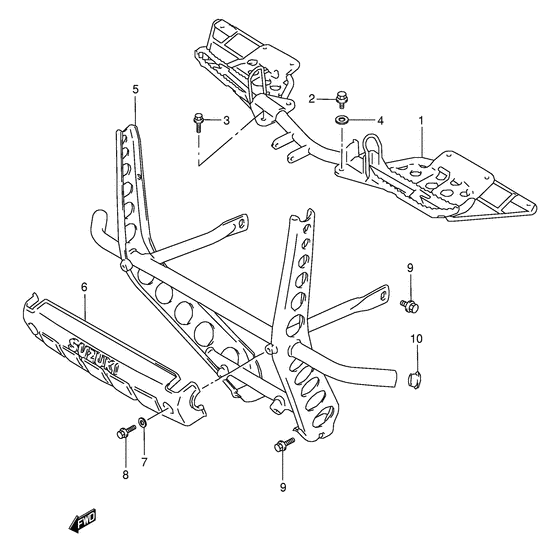

Footrest Diagram Suzuki LT-F4WD KingQuad
- Model code
- LT-F4WDXV
- Engine Capacity
- 280
- Year
- 1997
- Sales region
- Sweden (E17)
- Frame
- JSAAK42A*V2100001~
- Model
- KingQuad
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43510-39D50-000
Tube comp,footr
|
43510-39D50-000 |
— | ||
| replacement | |||||
|
1
|
1
43510-39DV0-000 TUBE,FOOTREST |
43510-39DV0-000 |
from US $228.16 |
||
|
2
|
2
09103-08171-000 BOLT(8X18) |
09103-08171-000 |
from US $5 |
||
|
3
|
3
09103-08259-000 BOLT(8X22)Bolt, front rh Bolt, front rh; |
09103-08259-000 |
from US $6.14 |
||
|
4
|
4
09160-08501-000 WASHER(8.5X24X2.3)Washer |
09160-08501-000 |
from US $1.60 |
||
|
5
|
5
43990-39D50-000
GRIP,FR
E2,e27 |
43990-39D50-000 |
— | ||
|
5
|
5
43990-39D60-000
GRIP,FR
E17 |
43990-39D60-000 |
— | ||
|
6
|
6
43976-19B00-000
RUBBER,FR GRIP
|
43976-19B00-000 |
— | ||
|
7
|
7
09169-05021-000
Washer
|
09169-05021-000 |
— | ||
| replacement | |||||
|
7
|
7
09169-05024-000 WASHER |
09169-05024-000 |
from US $3.25 |
||
|
8
|
8
02162-05123-000
Screw
Screw; |
02162-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
02162-0512A-000 SCREWScrew; |
02162-0512A-000 |
from US $0.80 |
||
|
9
|
9
01550-08163-000
Bolt, holder
|
01550-08163-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
9
|
9
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
10
|
10
09250-18003-000 PLUG(OD:22)Cap, carburetor bolt Cap; |
09250-18003-000 |
from US $3.35 |
||
