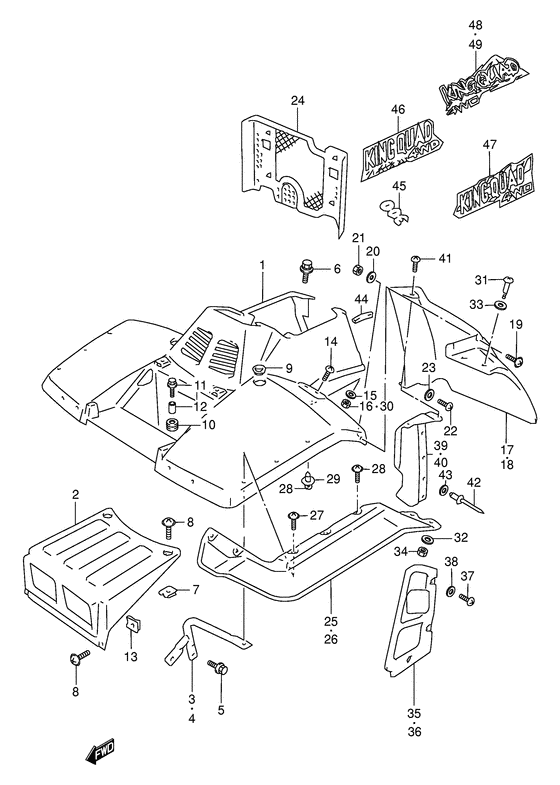

Front fender Diagram Suzuki LT-F4WD KingQuad
- Model code
- LT-F4WDXW
- Engine Capacity
- 280
- Year
- 1998
- Sales region
- Sweden (E17)
- Frame
- JSAAK42A*W2100001~
- Model
- KingQuad
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53111-19B10-Z34
FENDER,FR
Fender, front (brown); |
53111-19B10-Z34 |
— | ||
|
1
|
1
53111-19B10-0VT
FENDER,FR
Fender, front (blue); Model t/v |
53111-19B10-0VT |
— | ||
|
1
|
1
53111-19B10-Y5G
Fender, front (beige)
Model w |
53111-19B10-Y5G |
— | ||
|
2
|
2
53118-19B00-000 FENDER,CTR |
53118-19B00-000 |
from US $75.43 |
||
|
3
|
3
53210-19B10-000
Brace comp,frt
|
53210-19B10-000 |
— | ||
|
4
|
4
53240-19B10-000
BRACE,FR FENDER,L
|
53240-19B10-000 |
— | ||
|
5
|
5
01550-08163-000
Bolt, holder
Bolt, brace front; |
01550-08163-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0816B-000 BOLTBolt, brace front; |
01550-0816B-000 |
from US $0.91 |
||
|
5
|
5
01550-0816A-000 BOLTBolt, rear Bolt, brace front; |
01550-0816A-000 |
from US $0.91 |
||
|
6
|
6
09118-06019-000 BOLT(6X14)Bolt, fender (6x14) Bolt, fender rear (l:13); |
09118-06019-000 |
from US $4.64 |
||
|
7
|
7
53141-19A00-000 NUT,FR FENDER |
53141-19A00-000 |
from US $5.49 |
||
|
8
|
8
09136-06062-000
Screw
Screw, fender center; |
09136-06062-000 |
— | ||
| replacement | |||||
|
8
|
8
09136-06017-000 SCREW(6X16)Screw, fender center; |
09136-06017-000 |
from US $0.80 |
||
|
9
|
9
09308-25003-000
GROMMET
Grommet, front fender; |
09308-25003-000 |
— | ||
| replacement | |||||
|
9
|
9
09308-25005-000 GrommetGrommet, front fender; |
09308-25005-000 |
from US $6.21 |
||
|
10
|
10
09320-11008-000 CUSHIONCushion, front fender front; |
09320-11008-000 |
from US $1.52 |
||
|
11
|
11
09116-06025-000 BOLT(6X25)Bolt, front fender front Bolt, front fender front; |
09116-06025-000 |
from US $3.35 |
||
|
12
|
12
09180-06120-000 SPACER(6.5X11.5X12) |
09180-06120-000 |
from US $1.07 |
||
|
13
|
13
53141-19A00-000 NUT,FR FENDER |
53141-19A00-000 |
from US $5.49 |
||
|
14
|
14
02142-06163-000
Screw
Screw, front fender side; |
02142-06163-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0616A-000 SCREWScrew, front fender side; |
02142-0616A-000 |
from US $0.76 |
||
|
15
|
15
09169-06016-000 WASHERWasher Washer; |
09169-06016-000 |
from US $1.52 |
||
|
16
|
16
09159-06078-000 NUTNut |
09159-06078-000 |
from US $4.13 |
||
|
17
|
17
53311-19B10-000
MUDFLAP,FR FENDER,R
|
53311-19B10-000 |
— | ||
|
18
|
18
53312-19B10-000
MUDFLAP,FR FENDER,L
|
53312-19B10-000 |
— | ||
|
19
|
19
09139-05038-000 SCREW(5X15.3)Screw; |
09139-05038-000 |
from US $1.22 |
||
|
20
|
20
09160-05039-000 WasherModel t/v |
09160-05039-000 |
US $1.75 |
||
| replacement | |||||
|
20
|
20
09160-05046-000 WASHER(5.5X20X1.4)Model t/v |
09160-05046-000 |
from US $3.20 |
||
|
20
|
20
09160-05046-000 WASHER(5.5X20X1.4)Model w |
09160-05046-000 |
from US $3.20 |
||
|
21
|
21
09159-05026-000 Nut |
09159-05026-000 |
US $1.82 |
||
| replacement | |||||
|
21
|
21
09159-05043-000 NUT |
09159-05043-000 |
from US $12.10 |
||
|
22
|
22
02142-06123-000
Screw
Screw, inner; |
02142-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
02142-0612B-000 SCREWScrew, inner; |
02142-0612B-000 |
from US $0.76 |
||
|
22
|
22
02142-0612A-000 SCREWScrew, inner; |
02142-0612A-000 |
from US $0.80 |
||
|
23
|
23
09169-06010-000 WASHERWasher, inner Washer, inner; |
09169-06010-000 |
from US $1.98 |
||
|
24
|
24
53310-20B12-000 GUARD,MUFFLER FRGuard, muffler front |
53310-20B12-000 |
US $105.52 |
||
|
25
|
25
53331-19B00-000
MUDGUARD,FR FENDER FR,R
|
53331-19B00-000 |
— | ||
|
26
|
26
53332-19B00-000
MUDGUARD,FR FENDER FR,L
|
53332-19B00-000 |
— | ||
|
27
|
27
09136-05038-000 SCREW(5X16) |
09136-05038-000 |
from US $4.74 |
||
|
28
|
28
09409-08313-5PK CLIP(BLACK)Clip (black); |
09409-08313-5PK |
from US $1.76 |
||
|
29
|
29
09160-05039-000 WasherModel t/v |
09160-05039-000 |
US $1.75 |
||
| replacement | |||||
|
29
|
29
09160-05046-000 WASHER(5.5X20X1.4)Model t/v |
09160-05046-000 |
from US $3.20 |
||
|
29
|
29
09160-05046-000 WASHER(5.5X20X1.4)Model w |
09160-05046-000 |
from US $3.20 |
||
|
30
|
30
09159-05026-000 Nut |
09159-05026-000 |
US $1.82 |
||
| replacement | |||||
|
30
|
30
09159-05043-000 NUT |
09159-05043-000 |
from US $12.10 |
||
|
31
|
31
09139-05037-000 SCREW(5X18) |
09139-05037-000 |
from US $1.28 |
||
|
32
|
32
09160-05039-000 WasherModel t/v |
09160-05039-000 |
US $1.75 |
||
| replacement | |||||
|
32
|
32
09160-05046-000 WASHER(5.5X20X1.4)Model t/v |
09160-05046-000 |
from US $3.20 |
||
|
32
|
32
09160-05046-000 WASHER(5.5X20X1.4)Washer, lower; Model w |
09160-05046-000 |
from US $3.20 |
||
|
33
|
33
09160-07011-000 WasherModel t/v |
09160-07011-000 |
US $1.10 |
||
| replacement | |||||
|
33
|
33
09160-06109-000 WASHER(6.5X18X1.6)Model t/v |
09160-06109-000 |
from US $0.80 |
||
|
33
|
33
09160-06137-000
Washer, 6.8x18x
Model w |
09160-06137-000 |
— | ||
| replacement | |||||
|
33
|
33
09160-06109-000 WASHER(6.5X18X1.6)Model w |
09160-06109-000 |
from US $0.80 |
||
|
34
|
34
09159-05026-000 Nut |
09159-05026-000 |
US $1.82 |
||
| replacement | |||||
|
34
|
34
09159-05043-000 NUT |
09159-05043-000 |
from US $12.10 |
||
|
35
|
35
53511-19B00-000 MUDFLAP,FR FENDER INNER RR,RMudflap, inner rear rh |
53511-19B00-000 |
from US $26.86 |
||
|
36
|
36
53521-19B00-000 MUDFLAP,FR FENDER INNER RR,LMudflap, inner rear lh |
53521-19B00-000 |
from US $26.86 |
||
|
37
|
37
02142-06123-000
Screw
Screw; |
02142-06123-000 |
— | ||
| replacements | |||||
|
37
|
37
02142-0612B-000 SCREWScrew; |
02142-0612B-000 |
from US $0.76 |
||
|
37
|
37
02142-0612A-000 SCREWScrew; |
02142-0612A-000 |
from US $0.80 |
||
|
38
|
38
09169-06010-000 WASHERWasher, inner Washer; |
09169-06010-000 |
from US $1.98 |
||
|
39
|
39
53411-19B01-000
Mud flap,front
|
53411-19B01-000 |
— | ||
|
40
|
40
53421-19B01-000
Mud flap,front
|
53421-19B01-000 |
— | ||
|
41
|
41
09139-05037-000 SCREW(5X18) |
09139-05037-000 |
from US $1.28 |
||
|
42
|
42
09229-03023-000
Rivet
|
09229-03023-000 |
— | ||
| replacement | |||||
|
42
|
42
09229-03023-XC0
Rivet
|
09229-03023-XC0 |
— | ||
|
43
|
43
09160-03008-000 WASHER(3.3X18X1.2) |
09160-03008-000 |
US $13.20 |
||
|
44
|
44
63191-44A00-000 CUSHION(25X185X15)Cushion, mud flap lh Cushion, mud flap lh; Cut 125x20 |
63191-44A00-000 |
from US $4.45 |
||
|
45
|
45
68151-19B60-L43
Emblem, 300
E27 |
68151-19B60-L43 |
— | ||
|
46
|
46
68151-19BA0-Z43
Emblem,front fe
Model t |
68151-19BA0-Z43 |
— | ||
|
47
|
47
68151-19BB0-G2H
Emblem, fr fend
Model v |
68151-19BB0-G2H |
— | ||
|
48
|
48
68155-19B60-Y5K
Emblem,front fe
Model w for z34 |
68155-19B60-Y5K |
— | ||
|
48
|
48
68155-19B60-Y5L
Emblem,front fe
Model w for y5g |
68155-19B60-Y5L |
— | ||
|
49
|
49
68156-19B50-Y5K
EMBLEM,FR FENDER,L
Model w for z34 |
68156-19B50-Y5K |
— | ||
|
49
|
49
68156-19B50-Y5L
Emblem,front fe
Model w for y5g |
68156-19B50-Y5L |
— | ||
