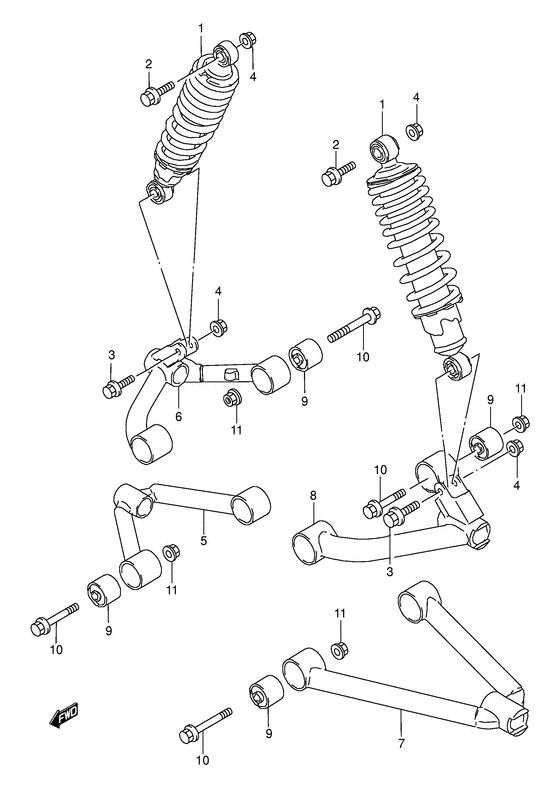

Suspension arm Diagram Suzuki LT-F4WD KingQuad
- Model code
- LT-F4WDXW
- Engine Capacity
- 280
- Year
- 1998
- Sales region
- Sweden (E17)
- Frame
- JSAAK42A*W2100001~
- Model
- KingQuad
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52100-19B81-019 ABSORBER ASSY,FR SHOCKAbsorber assy, front shock (black) Absorber assy, front shock (black); |
52100-19B81-019 |
from US $252.08 |
||
|
2
|
2
09103-10019-000 BOLT(10X37)Bolt, shock absorber Bolt, shock absorber upper (10x37); |
09103-10019-000 |
from US $1.82 |
||
|
3
|
3
09103-10126-000 BOLT(10X48)Bolt (10x48) Bolt, shock absorber lower (10x48); |
09103-10126-000 |
from US $2.13 |
||
|
4
|
4
08319-31103-000
Nut
Model t/v |
08319-31103-000 |
— | ||
| replacement | |||||
|
4
|
4
08319-3110A-000 NUTNut, fr differential Model t/v |
08319-3110A-000 |
from US $1.98 |
||
|
4
|
4
08319-31107-000 NUTModel w |
08319-31107-000 |
from US $1.98 |
||
|
5
|
5
52410-39D00-000
Arm comp,suspen
|
52410-39D00-000 |
— | ||
| replacement | |||||
|
5
|
5
52410-39D11-000 ARM,SUSPENSION LWR,R |
52410-39D11-000 |
from US $148.30 |
||
|
6
|
6
52430-19B80-000
Arm comp,suspen
|
52430-19B80-000 |
— | ||
| replacement | |||||
|
6
|
6
52430-19B81-000 ARM,SUSPENSION UPR,R |
52430-19B81-000 |
US $231.84 |
||
|
7
|
7
52420-39D00-000
Arm comp,suspen
|
52420-39D00-000 |
— | ||
| replacement | |||||
|
7
|
7
52420-39D11-000 ARM,SUSPENSION LWR,L |
52420-39D11-000 |
from US $148.30 |
||
|
8
|
8
52440-19B80-000
Arm comp,suspen
|
52440-19B80-000 |
— | ||
| replacement | |||||
|
8
|
8
52440-19B81-000 ARM,SUSPENSION UPR,L |
52440-19B81-000 |
from US $231.84 |
||
|
9
|
9
09319-10055-000 BUSHBush, suspension arm Bush, suspension arm; |
09319-10055-000 |
from US $11.68 |
||
|
10
|
10
09103-10107-000 BOLT(10X60)Bolt, suspension arm pivot Bolt, suspension arm pivot (10x60); |
09103-10107-000 |
from US $7.36 |
||
|
11
|
11
08319-31105-000
Nut
Model t/v |
08319-31105-000 |
— | ||
| replacement | |||||
|
11
|
11
08319-3110A-000 NUTNut, fr differential Model t/v |
08319-3110A-000 |
from US $1.98 |
||
|
11
|
11
08319-31107-000 NUTModel w |
08319-31107-000 |
from US $1.98 |
||
