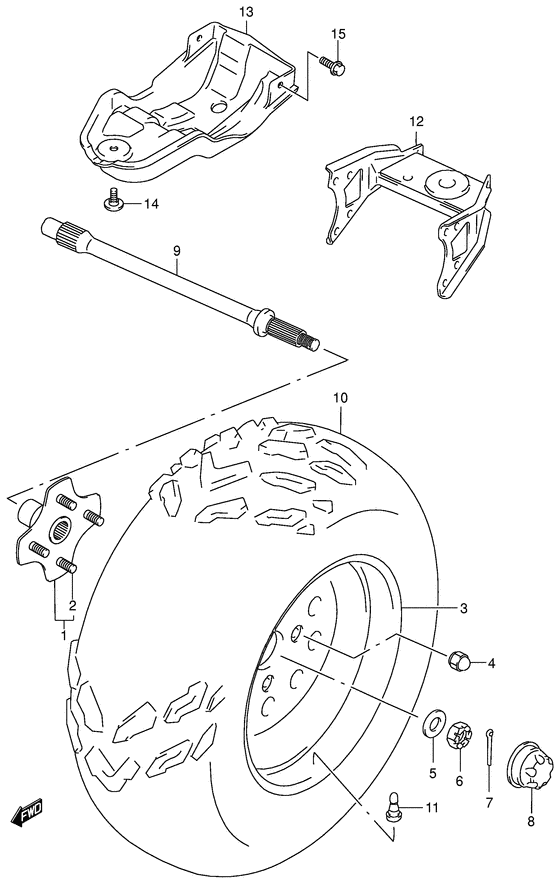

Left rear wheel (Model k1/k2) Diagram Suzuki LT-F500F QuadRunner 500 4WD
- Model code
- LT-F500FK1
- Year
- 2001
- Sales region
- US/Canada (E3/E28)
- Frame
- JSAAM41A*12100001~
- 2WD/4WD/AWD
- 4WD
- Model
- QuadRunner 500 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64110-09F20-000
Hub, rear wheel lh
Model k1 |
64110-09F20-000 |
— | ||
| replacement | |||||
|
1
|
1
64110-09F21-000 HUB,RR,LModel k1 |
64110-09F21-000 |
from US $163.39 |
||
|
1
|
1
64110-09F21-000 HUB,RR,LModel k2 |
64110-09F21-000 |
from US $163.39 |
||
|
2
|
2
09119-10049-000
Bolt (10x30)
Bolt (10x30); |
09119-10049-000 |
— | ||
| replacement | |||||
|
2
|
2
09119-10049-XC0 BOLTBolt (10x30); |
09119-10049-XC0 |
from US $2.24 |
||
|
3
|
3
65310-09F10-12Z
Rim, rear wheel (12x8.0at)
Rim, rear wheel (12x8.0at) (silver); Model k1 |
65310-09F10-12Z |
— | ||
| replacement | |||||
|
3
|
3
65310-09F11-12Z
RIM,RR WHEEL(12X8 OAT)
Rim, rear wheel (12x8.0at) (silver); Model k1 |
65310-09F11-12Z |
— | ||
|
3
|
3
65310-09F11-12Z
RIM,RR WHEEL(12X8 OAT)
Rim, rear wheel (12x8.0at) (silver); Model k2 |
65310-09F11-12Z |
— | ||
|
4
|
4
09140-10029-000
Nut
|
09140-10029-000 |
— | ||
| replacement | |||||
|
4
|
4
09140-10021-000 NUT |
09140-10021-000 |
from US $1.67 |
||
|
5
|
5
09164-18004-000 WASHERWasher, hub |
09164-18004-000 |
from US $3.20 |
||
|
6
|
6
09141-18008-000 NUTNut, hub (white) Nut, hub; |
09141-18008-000 |
from US $11.29 |
||
|
7
|
7
04111-40408-000
Pin, cotter
Cotter pin; |
04111-40408-000 |
— | ||
| replacement | |||||
|
7
|
7
04111-4040A-000 PINCotter pin; |
04111-4040A-000 |
from US $0.80 |
||
|
8
|
8
54725-09F01-000 CAP,WHEEL CTR |
54725-09F01-000 |
US $13.43 |
||
|
9
|
9
64711-09F10-000 AXLE,RR |
64711-09F10-000 |
from US $399.64 |
||
|
10
|
10
65110-09F00-000
Tire, rear (at25x10-12)
Tire, rear (at25x10-12) (dunlop); |
65110-09F00-000 |
— | ||
| replacement | |||||
|
10
|
10
65110-03G30-000 TIRE,RRTire, rear (at25x10-12) (dunlop); |
65110-03G30-000 |
US $1,248.72 |
||
|
11
|
11
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) Valve assy, wheel rim,tr412; |
43130-24A00-000 |
from US $4.41 |
||
|
12
|
12
95210-09F10-000
PLATE,TRLR TOW
|
95210-09F10-000 |
— | ||
|
13
|
13
61390-09F30-000
Protector, final case
|
61390-09F30-000 |
— | ||
|
14
|
14
61393-09F00-000
Bolt, guard
|
61393-09F00-000 |
— | ||
| replacement | |||||
|
14
|
14
61393-09F10-000 BOLT |
61393-09F10-000 |
from US $4.23 |
||
|
15
|
15
01550-06163-000
Bolt
Bolt, rear; |
01550-06163-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0616B-000 BOLTBolt, rear; |
01550-0616B-000 |
from US $0.76 |
||
|
15
|
15
01550-0616A-000 BOLTBolt, rear; |
01550-0616A-000 |
from US $0.76 |
||
