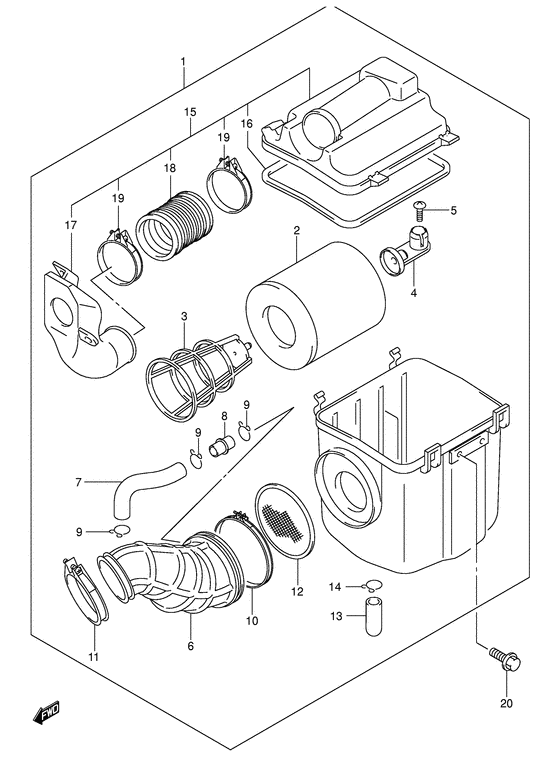

Air cleaner Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-03GF0-000
CLEANER ASSY,AIR
|
13700-03GF0-000 |
— | ||
|
2
|
2
13780-03G00-000 FILTER |
13780-03G00-000 |
from US $37.13 |
||
|
3
|
3
13791-03G00-000 HOLDER |
13791-03G00-000 |
US $11.76 |
||
|
4
|
4
13792-03G00-000 STOPPER,HOLDER |
13792-03G00-000 |
US $9.69 |
||
|
5
|
5
02142-06163-000
Screw
Screw; |
02142-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
02142-0616A-000 SCREWScrew; |
02142-0616A-000 |
from US $0.76 |
||
|
6
|
6
13881-03GF0-000 TUBE,OUTLET |
13881-03GF0-000 |
from US $39.74 |
||
|
7
|
7
13853-03G00-000
TUBE,BREATHER
|
13853-03G00-000 |
— | ||
|
8
|
8
13888-19B00-000 JOINT,2ND AIR CLEANER HOSEJoint |
13888-19B00-000 |
from US $2.40 |
||
|
9
|
9
09401-14301-000 CLIPClip Clip; |
09401-14301-000 |
from US $2.13 |
||
|
10
|
10
13826-14D01-000 CLAMP,OUTLET TUBEClamp (cleaner side) Clamp (cleaner side); |
13826-14D01-000 |
from US $4.90 |
||
|
11
|
11
09402-60208-000 CLAMPClamp, silencer Clamp (carburetor side); |
09402-60208-000 |
from US $1.98 |
||
|
12
|
12
13810-03G00-000 TRAP,FLAME |
13810-03G00-000 |
from US $6.70 |
||
|
13
|
13
13878-09F00-000
PLUG,DRAIN
Plug, drain; |
13878-09F00-000 |
— | ||
| replacement | |||||
|
13
|
13
13878-09F01-000 Plug,drainPlug, drain; |
13878-09F01-000 |
from US $4.38 |
||
|
14
|
14
09401-14301-000 CLIPClip Clip; |
09401-14301-000 |
from US $2.13 |
||
|
15
|
15
13890-03G01-000 INLET,AIR CLEANER |
13890-03G01-000 |
from US $58.14 |
||
|
16
|
16
13746-03G00-000 GASKET |
13746-03G00-000 |
from US $3.72 |
||
|
17
|
17
13896-03G00-000
Duct, inlet
|
13896-03G00-000 |
— | ||
| replacement | |||||
|
17
|
17
13896-03G01-000 DUCT,INLET |
13896-03G01-000 |
US $49.73 |
||
|
18
|
18
13891-03G00-000
JOINT,INLET
|
13891-03G00-000 |
— | ||
| replacement | |||||
|
18
|
18
13891-03G01-000 Joint,inlet |
13891-03G01-000 |
US $18.11 |
||
|
19
|
19
09402-60208-000 CLAMPClamp, silencer |
09402-60208-000 |
from US $1.98 |
||
|
20
|
20
09103-06083-000
Bolt (6x12)
Bolt, air cleaner; |
09103-06083-000 |
— | ||
| replacement | |||||
|
20
|
20
09103-06285-000 BOLT(6X12)Bolt (6x12) Bolt, air cleaner; |
09103-06285-000 |
from US $1.28 |
||
