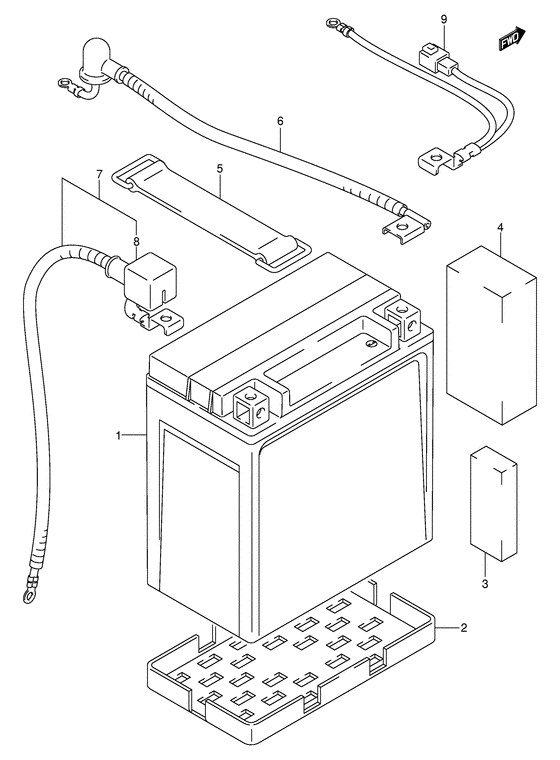

Battery Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-03G00-000
Battery assy
Fth16-bs,12v,14ah |
33610-03G00-000 |
— | ||
| replacements | |||||
|
1
|
1
33610-03G10-000
Battery assy
Fth16-bs,12v,14ah |
33610-03G10-000 |
— | ||
|
1
|
1
33610-31G02-000 Battery Ftz16-Bs,12V18.9Ah)Fth16-bs,12v,14ah |
33610-31G02-000 |
US $195.04 |
||
|
2
|
2
33652-05G00-000
Protector
|
33652-05G00-000 |
— | ||
| replacement | |||||
|
2
|
2
33652-16G00-000 PROTECTOR,BATTERY |
33652-16G00-000 |
from US $4.26 |
||
|
3
|
3
33652-03G00-000
Protector (20x50x11)
Protector (20x50x11.0); |
33652-03G00-000 |
— | ||
| replacement | |||||
|
3
|
3
33652-31F00-000 PROTECTOR(20X50X11)Protector (20x50x11.0) Protector (20x50x11.0); |
33652-31F00-000 |
from US $1.95 |
||
|
4
|
4
33652-47D01-000 CUSHION,BATTERYProtector (45x90x28) Protector (45x90x28); |
33652-47D01-000 |
US $7.18 |
||
|
5
|
5
09462-00067-000 BANDBand, battery Band, battery; |
09462-00067-000 |
from US $8.18 |
||
|
6
|
6
33810-03G00-000
WIRE,STARTER MOTOR
|
33810-03G00-000 |
— | ||
|
7
|
7
33820-03G00-000 WIRE,BATTERY PLUS |
33820-03G00-000 |
from US $21.90 |
||
|
8
|
8
33624-16E00-000 CAP,BATTERY PLUSCap, battery plus; |
33624-16E00-000 |
from US $2.56 |
||
|
9
|
9
33860-03G00-000 WIRE,BATTERY MINUS |
33860-03G00-000 |
US $41.06 |
||
