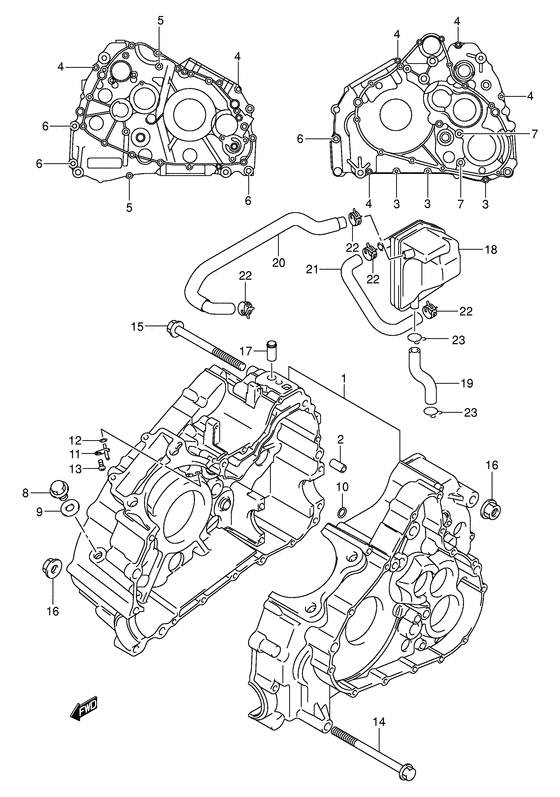

Crankcase Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11301-09850-000
Crankcase set
|
11301-09850-000 |
— | ||
| replacement | |||||
|
1
|
1
11301-09851-000 CRANKCASE SET |
11301-09851-000 |
US $1,176.48 |
||
|
2
|
2
04211-13189-000 PINPin; |
04211-13189-000 |
from US $1.19 |
||
|
3
|
3
01547-06453-000
Bolt
|
01547-06453-000 |
— | ||
| replacement | |||||
|
3
|
3
01547-0645B-000 Bolt |
01547-0645B-000 |
from US $0.91 |
||
|
4
|
4
01547-06753-000
Bolt
|
01547-06753-000 |
— | ||
| replacement | |||||
|
4
|
4
01547-0675B-000 BOLT |
01547-0675B-000 |
from US $5.36 |
||
|
5
|
5
01547-06903-000
Bolt
|
01547-06903-000 |
— | ||
| replacement | |||||
|
5
|
5
01547-0690B-000 BOLT |
01547-0690B-000 |
from US $5.12 |
||
|
6
|
6
01550-08503-000
Bolt
|
01550-08503-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
7
|
7
01550-08853-000
Bolt
|
01550-08853-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0885B-000 Bolt |
01550-0885B-000 |
from US $1.67 |
||
|
8
|
8
01550-12163-000
Plug, oil gallery
Pulg, oil gallery; |
01550-12163-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-1216B-000 BoltPulg, oil gallery; |
01550-1216B-000 |
US $21.70 |
||
|
9
|
9
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
|
10
|
10
09280-09005-000 O RING(D:1.9,ID:8.6)O ring (d:1.9,id:8.6); |
09280-09005-000 |
from US $1.67 |
||
|
11
|
11
11390-09F00-000
JET,PISTON COOLING
|
11390-09F00-000 |
— | ||
|
12
|
12
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O ring; |
09280-04004-000 |
from US $1.82 |
||
|
13
|
13
09125-06110-000 BOLT(6X12)Screw, retainer (6x12) Screw; |
09125-06110-000 |
from US $1.52 |
||
|
14
|
14
09103-10136-000 BOLT(10X180)Bolt (10x180); |
09103-10136-000 |
from US $10.69 |
||
|
15
|
15
09103-10152-000
BOLT(10X208)
Bolt (10x208); |
09103-10152-000 |
— | ||
|
16
|
16
09159-10058-000
Nut
|
09159-10058-000 |
— | ||
| replacement | |||||
|
16
|
16
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
17
|
17
09364-12002-000 UNIONUnion, breather hose; |
09364-12002-000 |
from US $2.66 |
||
|
18
|
18
11330-03G00-000
TANK,OIL RETURN
|
11330-03G00-000 |
— | ||
|
19
|
19
11332-03G00-000
HOSE,BREATHER
|
11332-03G00-000 |
— | ||
|
20
|
20
11333-03G00-000
HOSE,BREATHER
|
11333-03G00-000 |
— | ||
|
21
|
21
11334-03G00-000
HOSE,BREATHER
|
11334-03G00-000 |
— | ||
|
22
|
22
09401-15101-000 CLIP |
09401-15101-000 |
from US $1.60 |
||
|
23
|
23
09401-15404-000 CLIP |
09401-15404-000 |
from US $1.06 |
||
