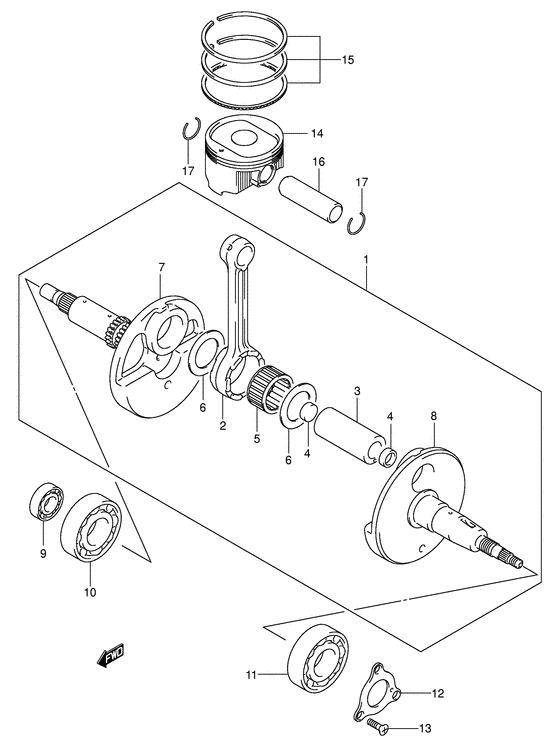

Crankshaft Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12000-03870-000 CRANKSHAFT SET |
12000-03870-000 |
from US $725.12 |
||
|
2
|
2
12161-32E00-000 CONNECTING RODRod, connecting |
12161-32E00-000 |
from US $162.64 |
||
|
3
|
3
12210-24B01-0A0 PIN,CRANKPin, crank |
12210-24B01-0A0 |
from US $48 |
||
|
4
|
4
09241-20006-000 PLUGPlug, crank pin oil |
09241-20006-000 |
from US $1.44 |
||
|
5
|
5
09263-37007-000 BEARING(37X47X24.8)Bearing (37x47x24.8); |
09263-37007-000 |
from US $95.20 |
||
|
6
|
6
09160-37006-000 WASHER(37X55X1)Washer (37x55x1) Washer (37x55x1); |
09160-37006-000 |
from US $6.23 |
||
|
7
|
7
12220-03870-000
CRANKSHAFT SET,R
Crankshaft, rh; |
12220-03870-000 |
— | ||
|
8
|
8
12261-03G00-000
CRANKSHAFT,L
|
12261-03G00-000 |
— | ||
|
9
|
9
09262-17040-000 BEARING(17X40X9.5)Bearing, rh (17X40X9.5) Bearing, rh (17x40x9.5); |
09262-17040-000 |
from US $15.09 |
||
|
10
|
10
09262-40008-000 BEARING(40X80X18)Bearing, mid (40x80x18); |
09262-40008-000 |
from US $32.80 |
||
|
11
|
11
09262-35009-000 BEARING(35X80X21)Bearing, lh (35x80x21) Bearing, lh (35x80x21); |
09262-35009-000 |
from US $65.50 |
||
|
12
|
12
12541-46510-000 RETAINER,CRANKSHAFT OIL SEALRetainer, crankshaft oil seal lh Retainer, oil seal lh; |
12541-46510-000 |
from US $5.48 |
||
|
13
|
13
09126-06011-000 SCREW(6X12)Screw, retainer mdl Screw (6x12); |
09126-06011-000 |
from US $0.76 |
||
|
14
|
14
12111-03G00-0F0 PISTON |
12111-03G00-0F0 |
from US $129.88 |
||
|
15
|
15
12140-03G00-000 RING SET,PISTON |
12140-03G00-000 |
from US $72.71 |
||
|
16
|
16
12151-09F00-000 PIN,PISTONPin |
12151-09F00-000 |
from US $33.20 |
||
|
17
|
17
09381-23003-000 CIRCLIP |
09381-23003-000 |
from US $0.91 |
||
|
18
|
18
09282-17010-000 SEAL,OIL(17X36X6) |
09282-17010-000 |
from US $14.09 |
