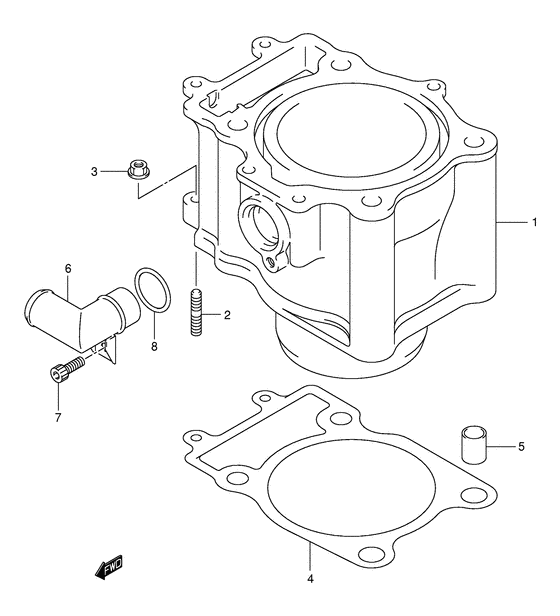

Cylinder Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11211-09F20-0F0
Cylinder
|
11211-09F20-0F0 |
— | ||
| replacement | |||||
|
1
|
1
11211-09F10-0F0
CYLINDER
|
11211-09F10-0F0 |
— | ||
|
2
|
2
01421-06203-000
Stud bolt (l:20)(green)
Stud bolt; |
01421-06203-000 |
— | ||
| replacement | |||||
|
2
|
2
01421-0620A-000 BOLT,STUDStud bolt; |
01421-0620A-000 |
from US $1.12 |
||
|
3
|
3
08316-10063-000
Nut
Nut; |
08316-10063-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
4
|
4
11241-09F00-000 GASKET,CYLINDERGasket, cylinder |
11241-09F00-000 |
US $16.03 |
||
|
5
|
5
04211-13189-000 PINPin; |
04211-13189-000 |
from US $1.19 |
||
|
6
|
6
17857-44D00-000 UNION,WATER HOSE |
17857-44D00-000 |
from US $19.87 |
||
|
7
|
7
07130-06123-000
Bolt
|
07130-06123-000 |
— | ||
| replacement | |||||
|
7
|
7
07130-0612A-000 BOLT |
07130-0612A-000 |
from US $0.96 |
||
|
8
|
8
09280-21015-000 O RING(D:2.7,ID:21.4)O ring (d:2.7,id:21.4) O ring (d:2.7,id:21.4); |
09280-21015-000 |
from US $1.06 |
||
