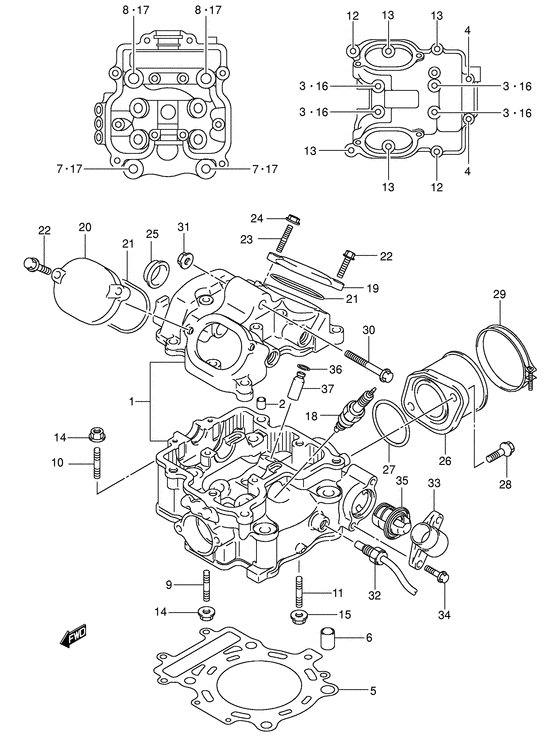

Cylinder head Diagram Suzuki LT-F500F Vinson 4WD
- Model code
- LT-F500FK3
- Engine Capacity
- 493
- Year
- 2003
- Sales region
- US/Canada (E3/E28)
- Frame
- 5SAAM44A*37100001~
- Power
- 45 hp
- 2WD/4WD/AWD
- 4WD
- Model
- Vinson 4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-44D00-000 HEAD ASSY,CYLINDER |
11100-44D00-000 |
from US $1,112.32 |
||
|
2
|
2
09206-08001-000 PIN(8X11)Pin; |
09206-08001-000 |
from US $1.06 |
||
|
3
|
3
09103-06102-000 BOLT(6X55)Bolt (6x55); |
09103-06102-000 |
from US $1.52 |
||
|
4
|
4
01550-06303-000
Bolt (6x30)
Bolt (6x30); |
01550-06303-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0630A-000 BOLTBolt (6x30); |
01550-0630A-000 |
from US $0.96 |
||
|
5
|
5
11141-09F00-000 GASKET,CYLINDER HEADGasket, cylinder head Gasket, cylinder head; |
11141-09F00-000 |
US $49.15 |
||
|
6
|
6
04211-13189-000 PINPin; |
04211-13189-000 |
from US $1.19 |
||
|
7
|
7
09103-10179-000 BOLT(10X190)Bolt (10x190); |
09103-10179-000 |
from US $8.21 |
||
|
8
|
8
09103-10180-000 BOLT(10X200)Bolt (10x200); |
09103-10180-000 |
from US $7.14 |
||
|
9
|
9
01421-06253-000
Stud bolt
Stud bolt (6x25); |
01421-06253-000 |
— | ||
| replacement | |||||
|
9
|
9
01421-0625A-000 BOLT,STUDStud bolt (6x25); |
01421-0625A-000 |
from US $0.98 |
||
|
10
|
10
01421-06503-000
Stud bolt (6x50)
Stud bolt (6x50); |
01421-06503-000 |
— | ||
| replacement | |||||
|
10
|
10
01421-0650B-000 BOLT,STUDStud bolt (6x50); |
01421-0650B-000 |
from US $4.06 |
||
|
11
|
11
01421-08503-000
Bolt, stud
Stud bolt (8x50); |
01421-08503-000 |
— | ||
| replacement | |||||
|
11
|
11
01421-0850A-000 BOLT,STUDStud bolt (8x50); |
01421-0850A-000 |
from US $4.18 |
||
|
12
|
12
09103-06108-000 BOLT(6X35)Bolt, head cover l:35 Bolt (6x35); |
09103-06108-000 |
from US $3.04 |
||
|
13
|
13
01550-06253-000
Bolt (6x25)
Bolt (6x25); |
01550-06253-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0625B-000 BOLTBolt, head cover Bolt (6x25); |
01550-0625B-000 |
from US $0.91 |
||
|
13
|
13
01550-0625A-000 BOLTBolt Bolt (6x25); |
01550-0625A-000 |
from US $0.96 |
||
|
14
|
14
08316-10063-000
Nut
Nut; |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
15
|
15
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
16
|
16
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Washer; |
09168-06023-000 |
from US $1.51 |
||
|
17
|
17
09168-10017-000 GASKET(10.5X22X2) |
09168-10017-000 |
from US $1.76 |
||
|
18
|
18
09482-00528-000 PLUG,SPARK(CR6E)Spark plug (ngk,cr6e); |
09482-00528-000 |
from US $9.69 |
||
|
18
|
18
09482-00529-000 PLUG,SPARK(U20ESR-N)Spark plug (denso,u20esr-n); |
09482-00529-000 |
from US $6.40 |
||
|
18
|
18
09482-00516-000 PLUG,SPARK(CR7E)Spark plug (ngk,cr7e); Opt |
09482-00516-000 |
from US $9.69 |
||
|
18
|
18
09482-00515-000 PLUG,SPARK(U22ESR-N)Spark plug (denso,u22esr-n); Opt |
09482-00515-000 |
US $9.30 |
||
|
18
|
18
09482-00456-000 PLUG,SPARK NGK(CR8E)Spark plug (ngk,cr8e); Opt |
09482-00456-000 |
from US $10.10 |
||
|
18
|
18
09482-00457-000 PLUG,SPARK(U24ESR-N)Spark plug (denso,u24esr-n); Opt |
09482-00457-000 |
from US $4.68 |
||
|
19
|
19
11175-03G10-000
CAP,INSPECTION
|
11175-03G10-000 |
— | ||
|
20
|
20
11175-47D00-000 CAP,INSPECTION |
11175-47D00-000 |
from US $11.78 |
||
|
21
|
21
11177-14D01-000 O RING,INSPECTION CAPO ring, inspection cap |
11177-14D01-000 |
from US $2.64 |
||
|
22
|
22
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
23
|
23
09108-06102-000 BOLT,STUDBolt, stud Bolt, stud; |
09108-06102-000 |
from US $1.98 |
||
|
24
|
24
08316-10063-000
Nut
Nut; |
08316-10063-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
25
|
25
09241-25007-000 PLUG,OD:30Plug, head; |
09241-25007-000 |
from US $7.90 |
||
|
26
|
26
13101-03G00-000
PIPE ASSY,INTAKE
|
13101-03G00-000 |
— | ||
| replacement | |||||
|
26
|
26
13101-03G01-000
Pipe Assy,intake
|
13101-03G01-000 |
— | ||
|
27
|
27
09280-40010-000
O RING(D:2.4,ID:39.7)
O ring (d:2.4,id:39.7); |
09280-40010-000 |
— | ||
| replacement | |||||
|
27
|
27
09280-40020-000 O-Ring (D:2.4,id:39.7)O ring (d:2.4,id:39.7); |
09280-40020-000 |
from US $4.59 |
||
|
28
|
28
09119-06092-000 BOLT(6X16)Screw Screw; |
09119-06092-000 |
from US $3.59 |
||
|
29
|
29
09402-52208-000 CLAMP |
09402-52208-000 |
from US $2.08 |
||
|
30
|
30
09103-08345-000
Bolt (8x60)
Bolt (8x60); |
09103-08345-000 |
— | ||
| replacement | |||||
|
30
|
30
09103-08217-000 BOLT(8X60)Bolt (8x60) Bolt (8x60); |
09103-08217-000 |
from US $5.07 |
||
|
31
|
31
08319-31088-000
Nut
Nut; |
08319-31088-000 |
— | ||
| replacement | |||||
|
31
|
31
08319-3108A-000 NUTNut; |
08319-3108A-000 |
from US $1.67 |
||
|
32
|
32
34850-03G00-000
Switch assy, water temp
|
34850-03G00-000 |
— | ||
| replacement | |||||
|
32
|
32
34850-03G20-000
SWITCH ASSY,WATER TEMP
|
34850-03G20-000 |
— | ||
|
33
|
33
17661-44D00-000 COVER,THERMOSTATCover, thermostat |
17661-44D00-000 |
from US $28.15 |
||
|
34
|
34
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
34
|
34
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
35
|
35
17670-08D10-000
THERMOSTAT,WATER
|
17670-08D10-000 |
— | ||
| replacement | |||||
|
35
|
35
17670-08D11-000 Thermostat,water |
17670-08D11-000 |
US $65.06 |
||
|
36
|
36
11400-09891-000 GASKET SET |
11400-09891-000 |
US $178.19 |
||
|
37
|
37
11115-14D71-000 GUIDE,VALVEGuide, valve (os 0.3); Opt |
11115-14D71-000 |
from US $18.48 |
||
